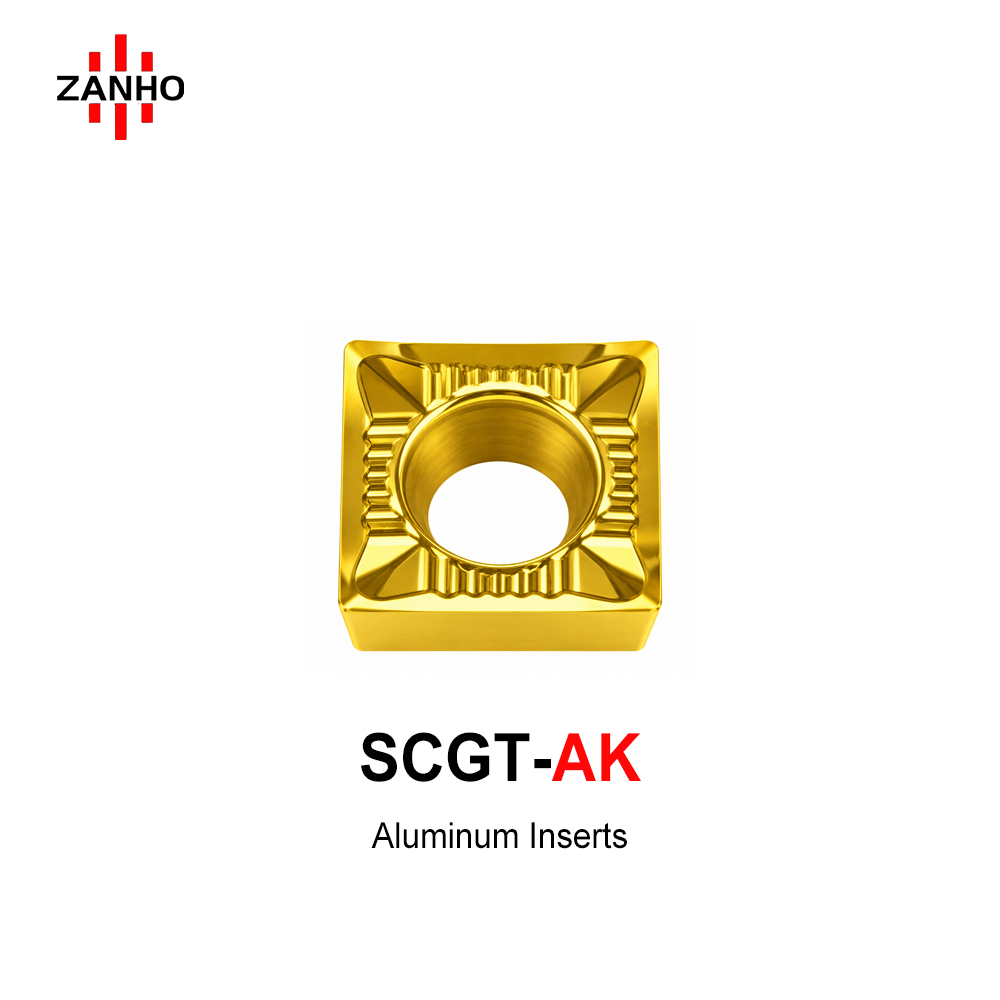

SCGT-AK

ZANHO SCGT-AK series: High-precision square positive inserts optimized for aluminum and non-ferrous alloys. Featuring 4 effective cutting edges for maximum economy, these inserts are designed with a large positive rake geometry and a buffed mirror-polished rake face. They significantly reduce cutting resistance and prevent built-up edge (BUE), making them ideal for high-speed external turning, internal boring, and profiling with superior surface brightness.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Mirror-Polished Rake Face: Ultra-smooth buffed surface effectively prevents chip adhesion and built-up edge (BUE) in aluminum machining.
  • Large Positive Rake Geometry: Provides exceptionally sharp cutting edges, reducing cutting forces and minimizing tool vibration.
  • Segmented Open Chipbreaker: Specialized geometry ensures stable and mandatory chip curling for smooth evacuation at high speeds.
  • High Economic Efficiency: The square geometry provides 4 effective cutting edges per insert, reducing overall tooling costs.
  • Excellent Versatility: Perfectly suited for external turning, internal boring, face machining, and profiling of all non-ferrous metals.

SCGT-AK Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
SCGT09T302-AK 9.525 3.97 4.4 0.2
SCGT09T304-AK 9.525 3.97 4.4 0.4
SCGT09T308-AK 9.525 3.97 4.4 0.8
SCGT120402-AK 12.7 4.76 5.5 0.2
SCGT120404-AK 12.7 4.76 5.5 0.4
SCGT120408-AK 12.7 4.76 5.5 0.8
SCGT120412-AK 12.7 4.76 5.5 1.2
