SCMT-PC

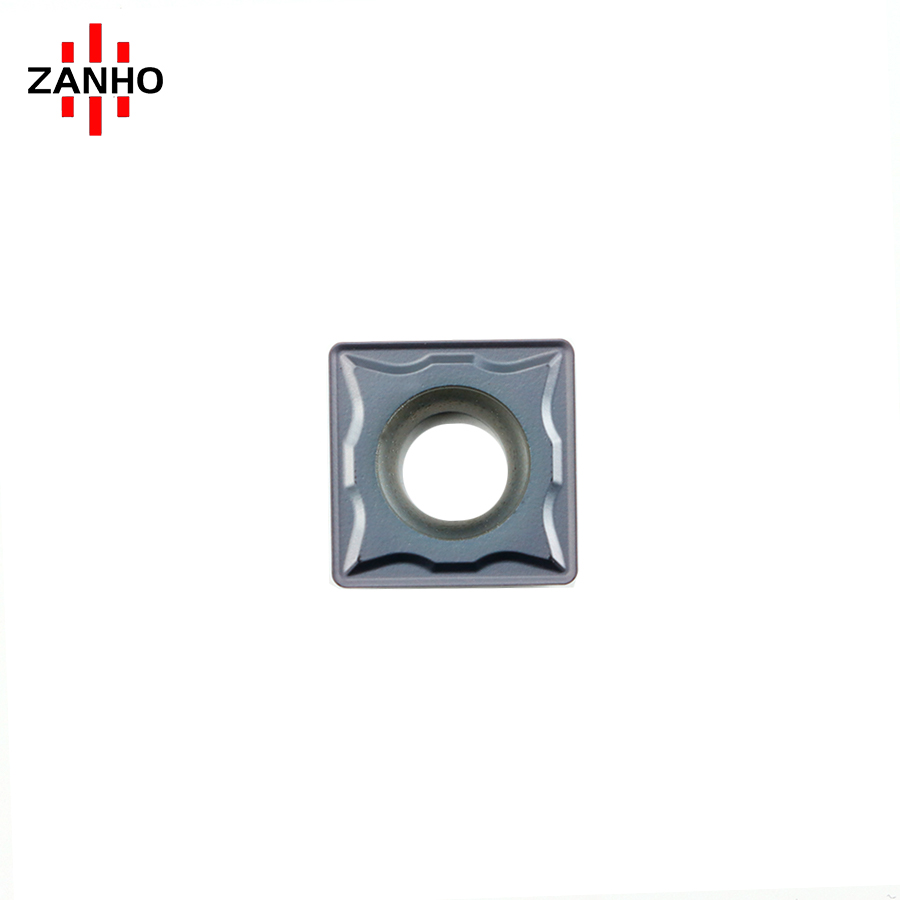

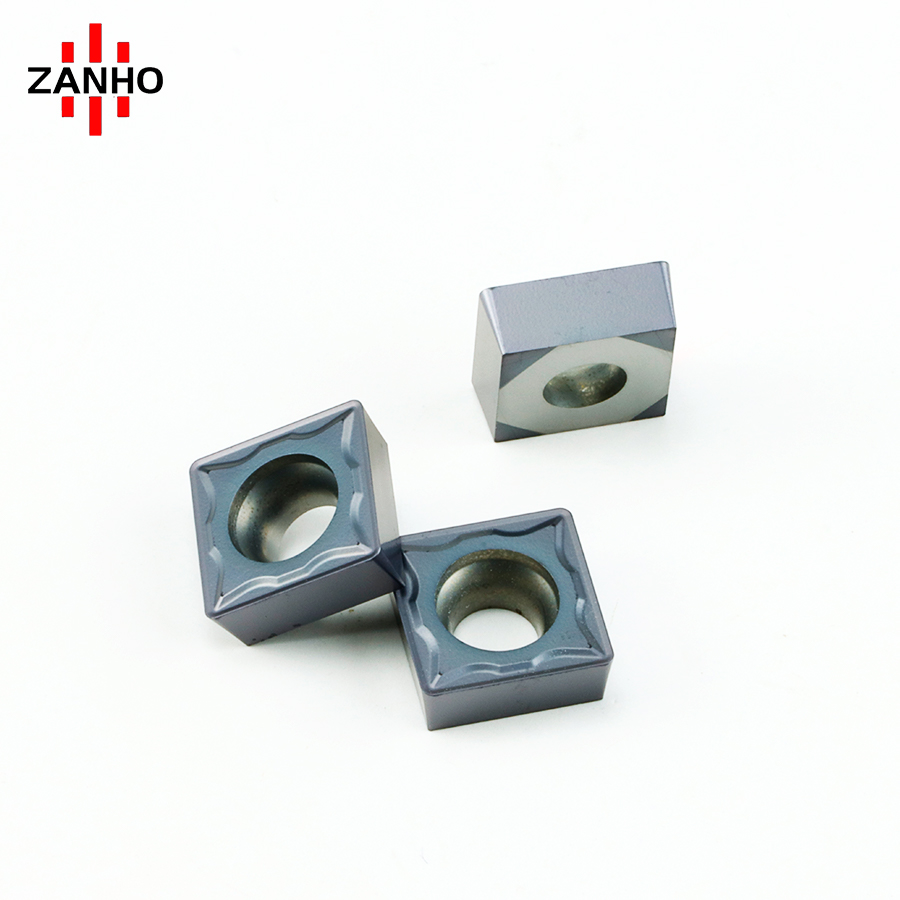

ZANHO SCMT-PC series is a professional square positive turning insert specifically designed for Medium Machining. Featuring the specialized PC chipbreaker, it delivers stable cutting performance and consistent chip evacuation across a wide range of feed rates, making it an ideal choice for general-purpose turning and facing of steel and alloy components with high reliability.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Excellence: Optimized for semi-roughing to medium finishing applications, ensuring continuous productivity in general CNC turning.
  • PC Chipbreaker Geometry: Specifically engineered for stable chip breaking at varying feed rates, effectively preventing chip nesting and surface damage.
  • Square Positive Design: The square geometry with positive clearance angle reduces cutting resistance and heat buildup, ideal for maintaining stability in continuous turning.
  • Stable Cutting Edge: Precision-ground edges enhance surface finish and tool reliability, maintaining consistent quality in long-running turning cycles.

Technical Specifications

Model Feed (f) Cut Depth (ap)
SCMT09T304-PC 0.08 - 0.25 mm/r 0.35 - 3.0 mm
SCMT09T308-PC 0.10 - 0.28 mm/r 0.5 - 3.0 mm
SCMT120404-PC 0.08 - 0.25 mm/r 0.4 - 4.0 mm
SCMT120408-PC 0.10 - 0.30 mm/r 0.7 - 4.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and machining conditions.
