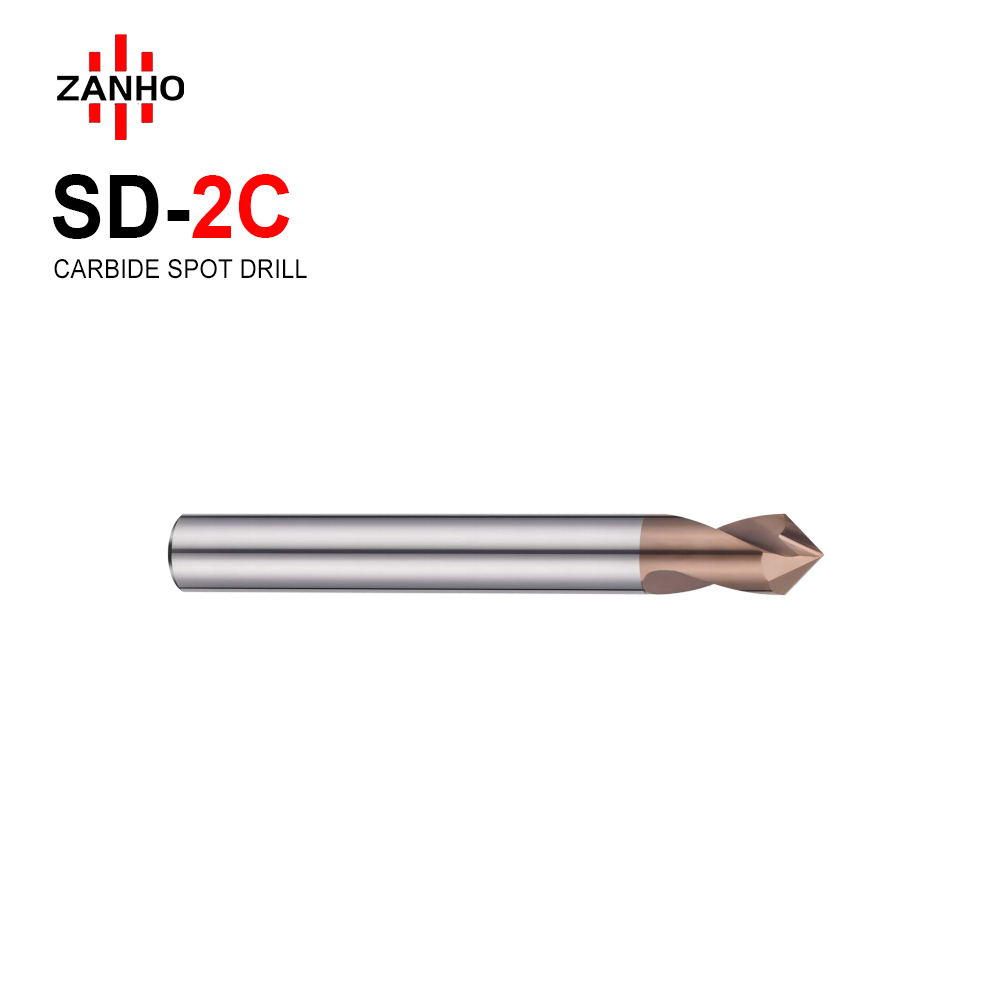

SD-2C-steel

  • Hole Positioning Expert: Specifically designed for high-precision Hole Spotting and Centering to prevent drill walk and ensure dimensional accuracy.
  • Versatile Angles: Available in 60°, 90°, and 120° options to perfectly match the point angles of subsequent twist drills.
  • Multi-Functional: Can be used for both initial spotting and simultaneous edge chamfering, improving production efficiency.
  • Workpiece Compatibility: Optimized for Alloy Steel, Carbon Steel, and Cast Iron with diameters ranging from D1 to D20.
Categories:
Learn More
Download PDF
Description

Steel Order Number Specification D A D1 L
SD-2C-01090 D1*A90*D4*50L*2F 1 90 4 50
SD-2C-01590 D1.5*A90*D4*50L*2F 1.5 90 4 50
SD-2C-02090 D2*A90*D4*50L*2F 2 90 4 50
SD-2C-03090 D3*A90*D4*50L*2F 3 90 4 50
SD-2C-04060 D4*A60*D4*50L*2F 4 60 4 50
SD-2C-04090 D4*A90*D4*50L*2F 4 90 4 50
SD-2C-04120 D4*A120*D4*50L*2F 4 120 4 50
SD-2C-06060 D6*A60*D6*50L*2F 6 60 6 50
SD-2C-06090 D6*A90*D6*50L*2F 6 90 6 50
SD-2C-06120 D6*A120*D6*50L*2F 6 120 6 50
SD-2C-08060 D8*A60*D8*60L*2F 8 60 8 60
SD-2C-08090 D8*A90*D8*60L*2F 8 90 8 60
SD-2C-08120 D8*A120*D8*60L*2F 8 120 8 60
SD-2C-10090 D10*A90*D10*75L*2F 10 90 10 75
SD-2C-12090 D12*A90*D12*75L*2F 12 90 12 75
SD-2C-14090 D14*A90*D14*100L*2F 14 90 14 100
SD-2C-16090 D16*A90*D16*100L*2F 16 90 16 100
SD-2C-18090 D18*A90*D18*100L*2F 18 90 18 100
SD-2C-20090 D20*A90*D20*100L*2F 20 90 20 100
