SDMT-F57

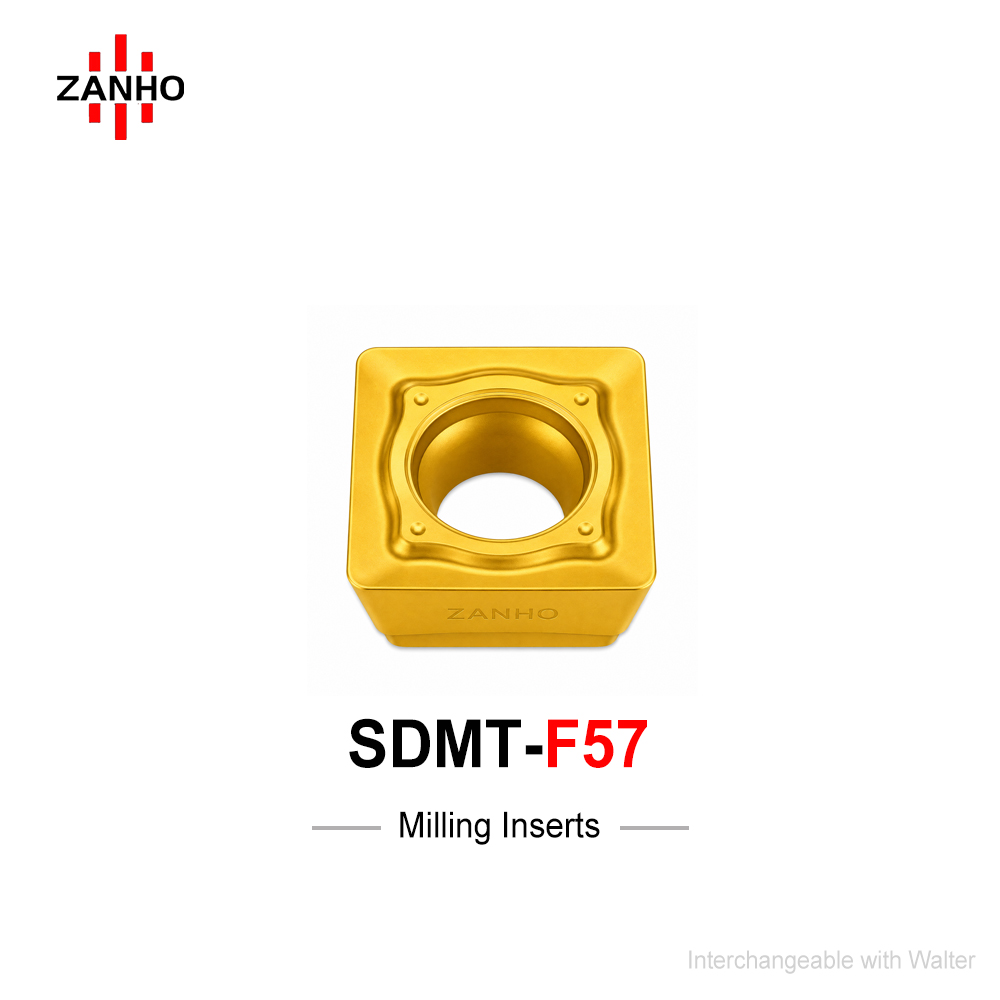

ZANHO SDMT 09T3-F57 is a positive square 4-edge insert designed for stable face and shoulder milling. Featuring the F57 chipbreaker and a 15° relief angle, it ensures low cutting resistance and reliable chip control across Steel and Cast Iron. Ideal for semi-finishing to light roughing, it delivers maximum economy and process security.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Smooth Positive Geometry: Engineered with a positive square structure and a 15° relief angle to reduce cutting resistance and machine load, ensuring stable performance on standard rigidity equipment.
  • Stable F57 Chipbreaker: Optimized geometry for consistent chip curling and evacuation across a wide range of industrial materials, effectively preventing thermal buildup.
  • Economic 4-Edge Configuration: Features four precision-ground cutting corners per insert, maximizing tool utilization and significantly lowering the tool cost-per-edge.
  • Precision Process Security: Specifically balanced for continuous to light-interrupted roughing and semi-finishing, providing reliable wall verticality and floor flatness.
  • Multi-Radius Selection: Available in multiple corner radii (R0.8, R1.6, R2.0) to match specific component geometries and surface finish requirements.

Insert Dimensional Specifications (mm)

Model Type IC (Inscribed Circle) S (Thickness) Re (Radius) Relief Angle Tolerance Edges
SDMT 09T308-F57 9.52 3.97 0.8 15° M Class 4
SDMT 09T316-F57 9.52 3.97 1.6 15° M Class 4
SDMT 09T320-F57 9.52 3.97 2.0 15° M Class 4

Universal Solutions for Precision Milling

ZANHO SDMT-F57 series deliver unmatched stability and value for industrial manufacturing. Contact us for bulk B2B pricing and material grade support.
