SDMT-ZH

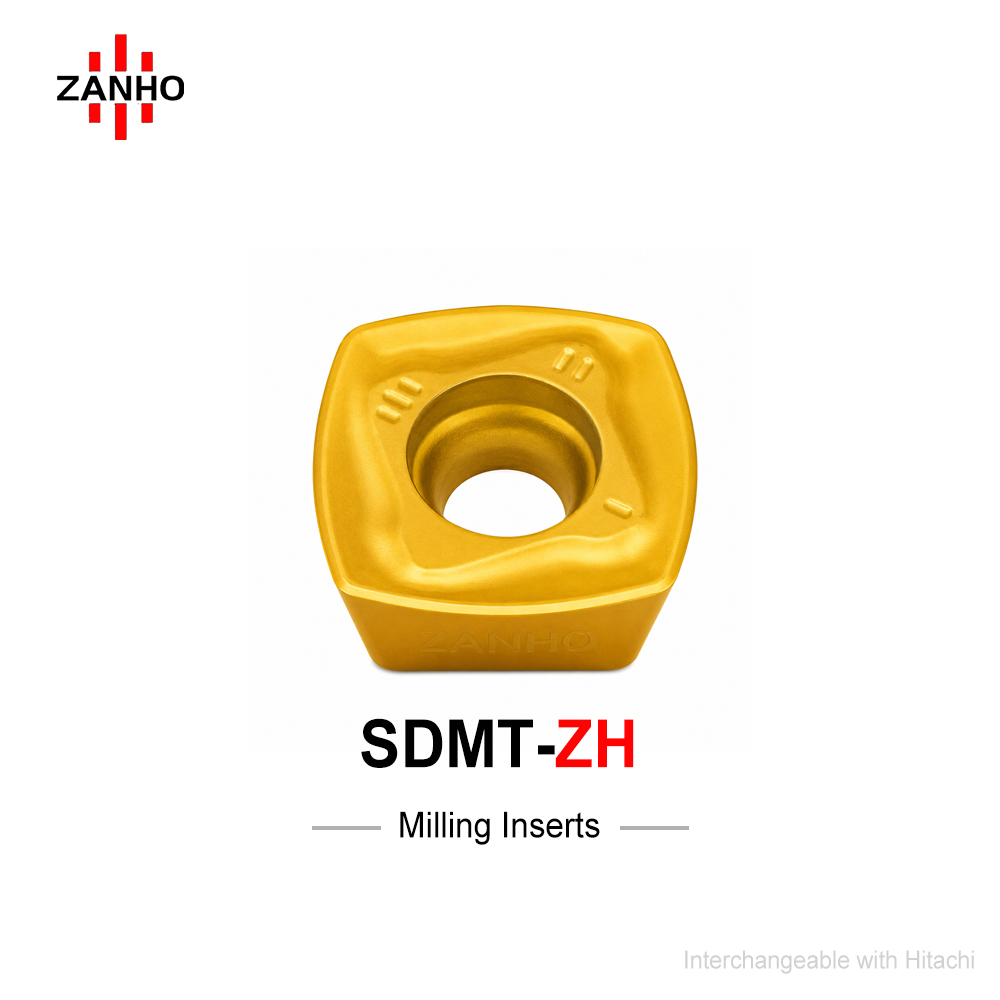

ZANHO SDMT120512-ZH and SDMT150512-ZH are high-efficiency 4-edge high-feed inserts designed for mold roughing. Featuring a large arc profile and the reinforced -ZH wavy chipbreaker, they excel in small depth/large feed (HFR) modes. The thickened body and smooth corner transitions provide maximum impact resistance in steel, pre-hardened steel, and stainless steel.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • Large Arc Efficiency: Engineered for high-efficiency roughing using small axial depth and large feed rates, significantly reducing cutting resistance.
  • -ZH Wavy Chipbreaker: Features a large positive rake wavy profile with multiple chip-breaking ribs for smooth evacuation and heat suppression.
  • 4-Edge Productivity: Single-sided square design with 4 precision edges effectively controls machining costs per workpiece.
  • Reinforced Structure: Thickened insert body with smoothed corner transitions reduces stress concentration and enhances impact resistance.
  • Wide Application: Reliable performance in mold cavity roughing and large surface removal for steel, pre-hardened steel, and stainless steel.

Specifications (mm)

Model Radius (R) I.C (φl.C) Thickness (S) Hole (d) Max ap
SDMT120512-ZH 1.2 12.7 5.65 4.3 2.0
SDMT150512-ZH 1.2 15.95 5.65 5.5 2.5

High Efficiency Roughing with -ZH Geometry

ZANHO SDMT-ZH inserts are the ultimate choice for heavy roughing stability. Contact us for bulk pricing and tool compatibility.
