SDMT09T307-SM

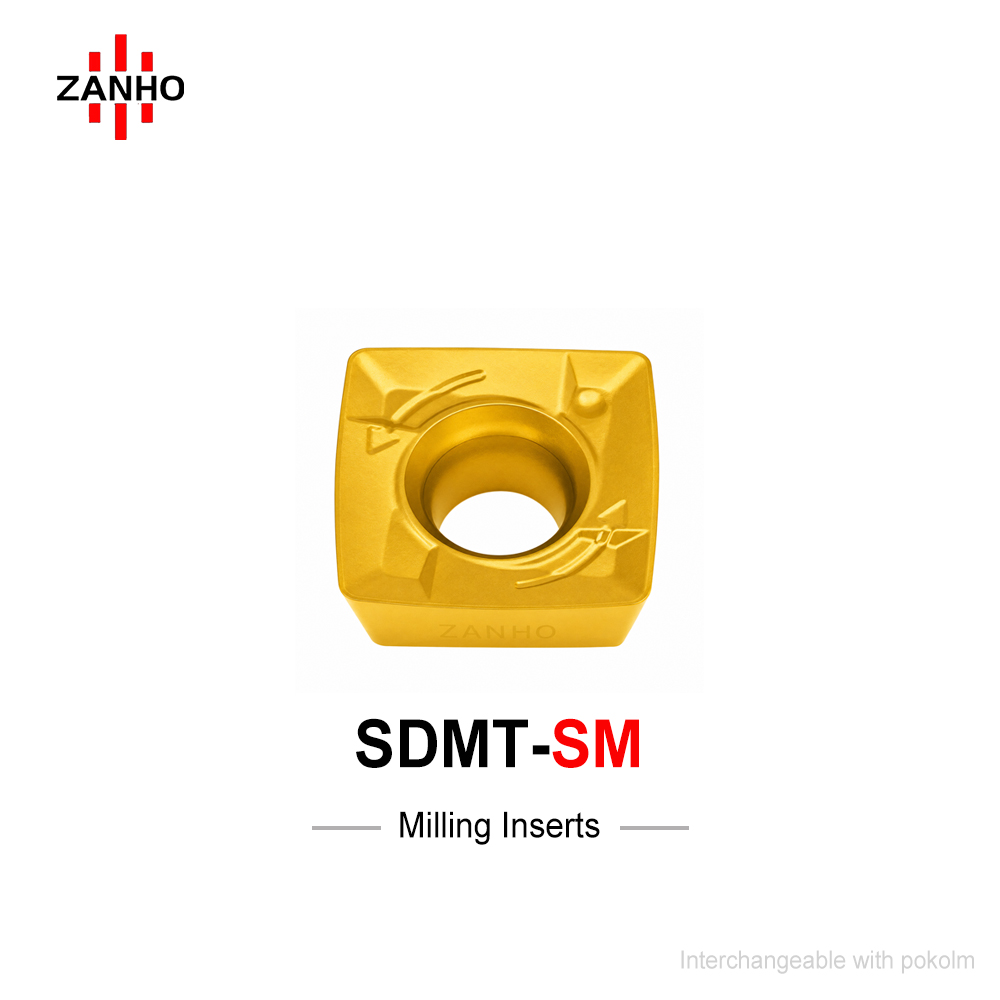

ZANHO SDMT09T307-SM is a precision small-format high-feed insert designed for small-diameter cutters. Optimized for deep cavities and low-rigidity machines, it redirects cutting forces axially to suppress vibration. Featuring a reinforced screw hole and peripheral chamfer protection, it delivers stable 4-edge performance with a 0.75mm max ap in diverse roughing conditions.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Axial Force Optimization: Specifically designed to guide cutting forces toward the spindle, significantly reducing radial load and suppressing chatter in thin-walled or deep cavity parts.
  • Reinforced Screw Hole: Features a specialized ring-shaped reinforcement collar to resist clamping stress and cutting impacts, effectively preventing hole-seat breakage.
  • 3D High-Feed Geometry: Advanced three-dimensional chipbreaker optimizes chip curling and reduces power consumption even on low-power CNC machines.
  • Edge Edge Protection: Integrated peripheral chamfers protect the corner radii from micro-chipping, extending tool life in both dry and wet cutting.
  • 4-Edge Economic Efficiency: Single-sided square design provides four precision corners, maximizing metal removal rates at a highly competitive cost-per-edge.

Key Technical Specifications

Model Corner Radius (R) Max ap (Axial) Insert Type
SDMT09T307-SM 0.7 mm 0.75 mm Single-sided (4 Edges)

Master High-Feed Roughing in Small Cavities

ZANHO SDMT series delivers process security for the most challenging mold components. Contact us for bulk B2B pricing and material guide.
