SEHT1204AFTN

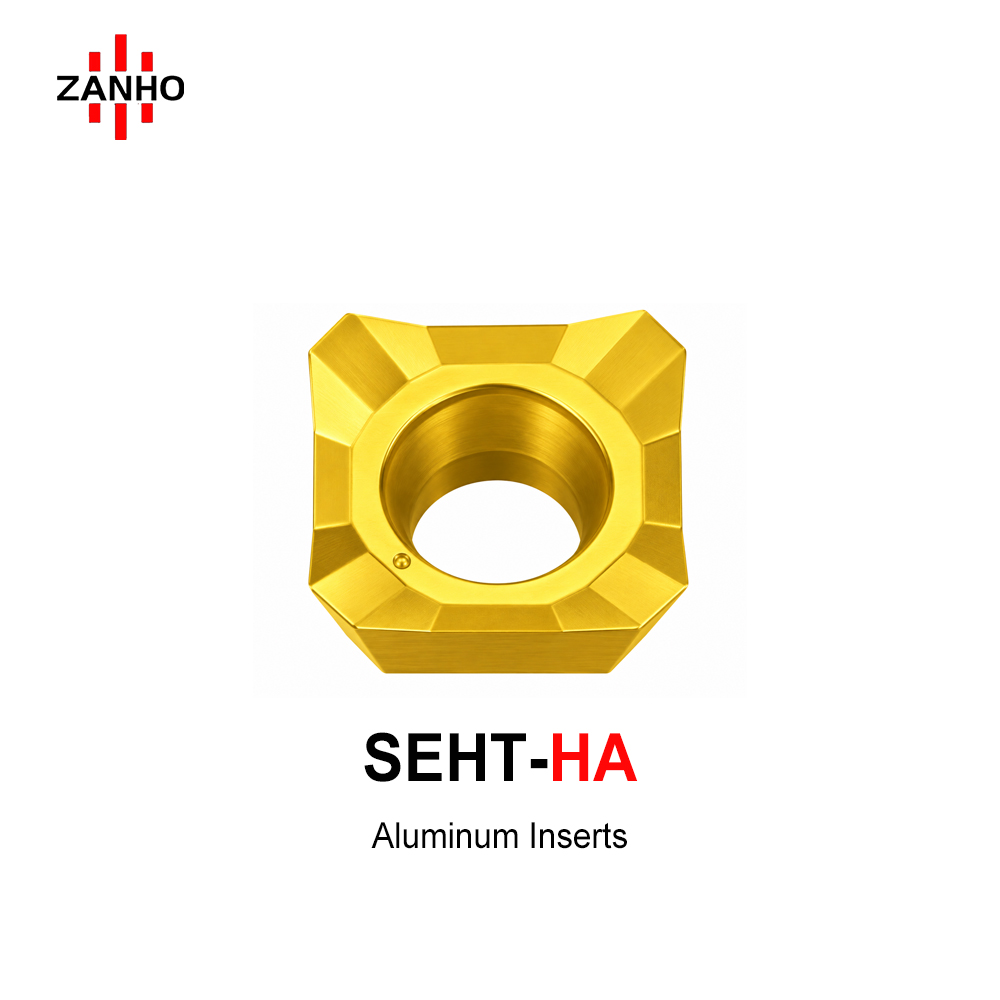

ZANHO SEHT1204AFTN series: High-precision milling inserts optimized for aluminum and non-ferrous metals. Designed with a large positive rake geometry and 4 cutting edges, these inserts provide exceptional economy and cutting efficiency. The buffed mirror rake face and AFTN chipbreaker ensure unobstructed chip flow and high surface quality in high-speed face milling and light-duty square shoulder milling.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Large Positive Rake Geometry: Reduces cutting resistance and ensures sharp, fast cutting action.
  • Mirror-Polished Rake Face: Specifically treated to prevent aluminum adhesion and built-up edge (BUE).
  • 4 Effective Cutting Edges: Delivers high economic value and stable performance across multiple milling tasks.
  • Open Chip Pocket: Unobstructed space for high-speed chip evacuation, essential for deep and fast milling.
  • AFTN Chipbreaker: Optimized chamfer structure for improved chip formation in face and square shoulder milling.
  • Optical-Grade Finish: Delivers high surface brightness and precision on non-ferrous workpieces.

SEHT1204AFTN Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm) Effective Edges
SEHT1204AFTN 12.7 4.76 5.5 0.8 4

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
