SEKT-M

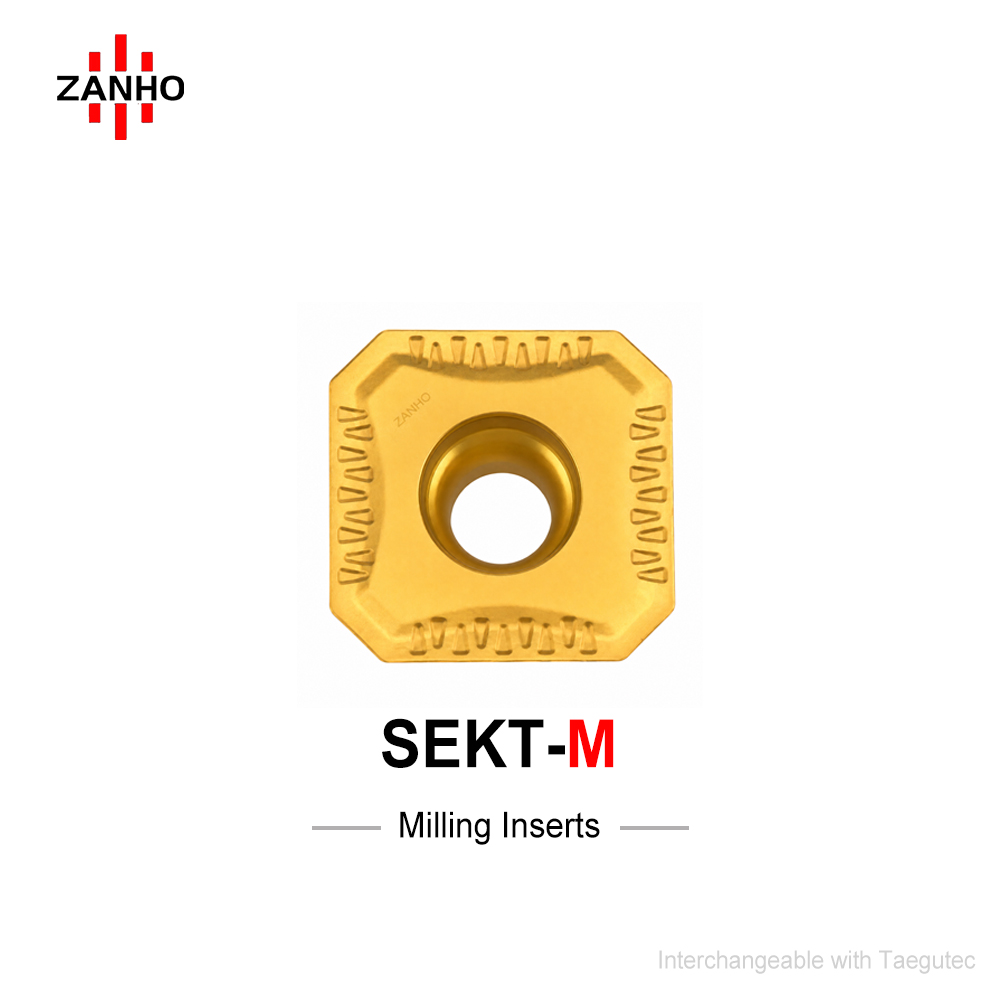

ZANHO SEKT 12T3AFTN-M is a versatile 45° lead angle insert designed for high-efficiency face milling and ramping. It combines high positive geometry for low cutting resistance with a robust 4-edge design for maximum economy. Equipped with a large 2.5mm integrated wiper (bs), it delivers superior surface finish and stable performance across wide width milling operations.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Aggressive 45° Lead Angle: Optimized for high-efficiency face milling, distributing cutting forces evenly to allow for higher feed rates and stable axial removal.
  • Superior Finish (2.5mm Wiper): Features a high-precision 2.5mm integrated wiper edge (bs) that delivers mirror-like floor flatness even under heavy-load machining.
  • Large Positive Rake: Drastically reduces spindle load and thermal impact, ensuring smooth shearing action on machines with limited rigidity.
  • Maximum Economic Value: Single-sided 4-edge configuration provides long tool life and significantly lower cost-per-part for industrial B2B users.

Insert Dimensional Specifications (mm)

Model L (mm) ΦI.C (mm) S (Thickness) Φd (Hole) bs (Wiper) Edges
SEKT 12T3AFTN-M 13.15 13.15 3.8 3.95 2.5 4

Complete Matching Cutter Specifications (FM45SE)

Cutter Model Teeth DC (Dia) DCX Da (Arbor) L (Height) ap (Max) Interface Weight (kg)
FM45SE-450A22R-12 4 50 62 22 40 6 A 0.3
FM45SE-563A22R-12 5 63 75 22 40 6 A 0.5
FM45SE-680A27R-12 6 80 92 27 50 6 A 1.2
FM45SE-7100B32R-12 7 100 112 32 50 6 B 1.2
FM45SE-8125B40R-12 8 125 137 40 63 6 B 2.6
FM45SE-10160C40R-12 10 160 172 40 63 6 C 4.3
FM45SE-12200C60R-12 12 200 212 60 63 6 C 7.6
FM45SE-14250C60R-12 14 250 262 60 63 6 C 13.5

Universal Face Milling at Large Scale

ZANHO SEKT-M inserts and WFM45SE cutters deliver uncompromised precision for all diameters. Contact us for bulk B2B stock and global distribution.
