SEMT-M

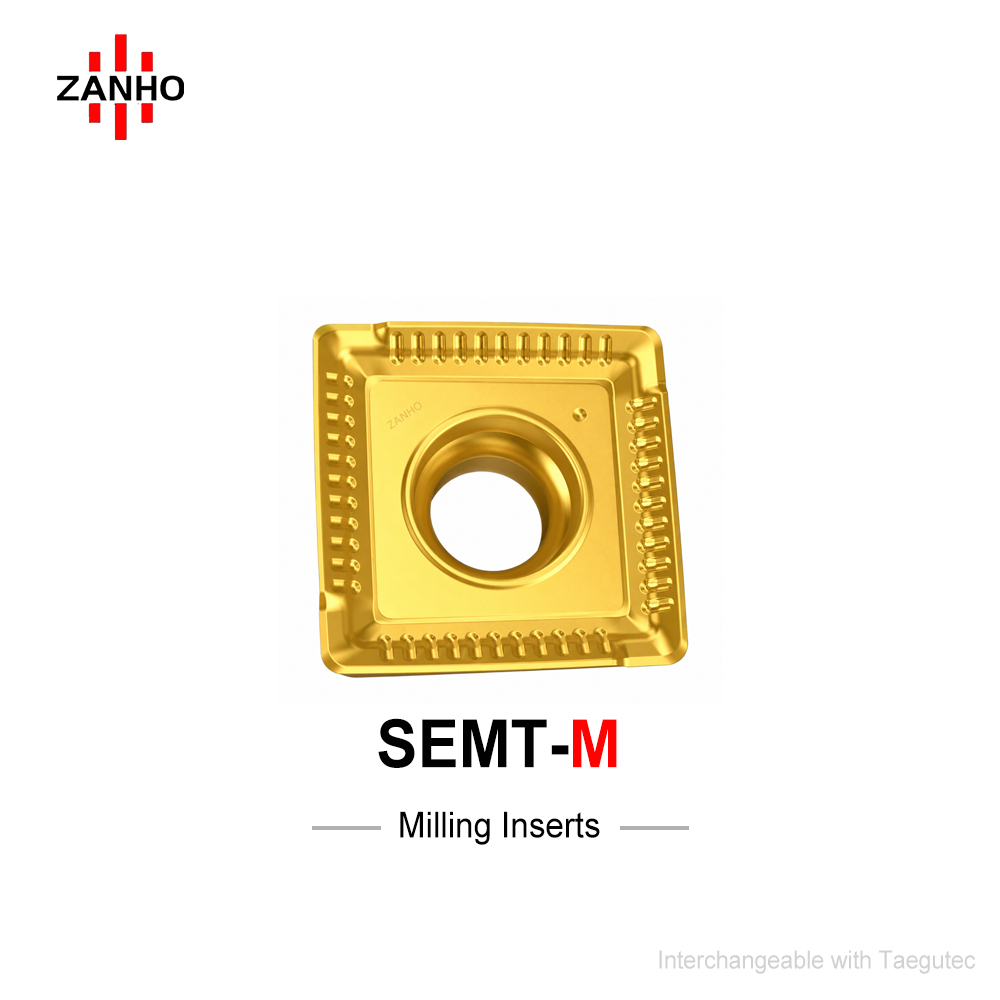

ZANHO SEMT1304PETR-M is a versatile 4-edge insert engineered for 90° square shoulder, face, and slot milling. Featuring a positive helical cutting edge, it significantly reduces machine load and suppresses vibration. With an 8.8mm max depth of cut and integrated wiper geometry, it delivers stable semi-roughing to semi-finishing performance with exceptional side-wall surface quality.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • True 90° Shoulder Precision: Optimized for high-precision square shoulder milling, ensuring excellent verticality on side walls and flatness on floors in a single operation.
  • Low-Resistance Helical Edge: The aggressive positive geometry and helical cutting edge facilitate light-cutting action, drastically reducing spindle load and harmonic vibrations.
  • Economic 4-Edge Design: Features a square configuration with four high-precision usable edges, significantly lowering the total tool cost-per-component for industrial users.
  • High Volume Removal (Max 8.8mm Ap): Robust edge strength supports medium feed rates and a maximum axial depth of cut up to 8.8mm, ideal for efficient semi-roughing.
  • Integrated Wiper Performance: Specialized wiper geometry along the edge provides superior surface finish quality, reducing the need for secondary finishing passes.

Insert Dimensional Specifications (mm)

Model L (Length) ΦI.C (Inscribed) S (Thickness) Φd (Hole Dia) bs (Wiper) Max ap
SEMT 1304PETR-M 13.68 13.68 4.76 4.6 0.8 8.8 mm

Universal Solutions for Precision Milling

ZANHO SEMT series delivers the ultimate balance of productivity and edge life. Contact us for bulk B2B pricing and material grade selection guides.
