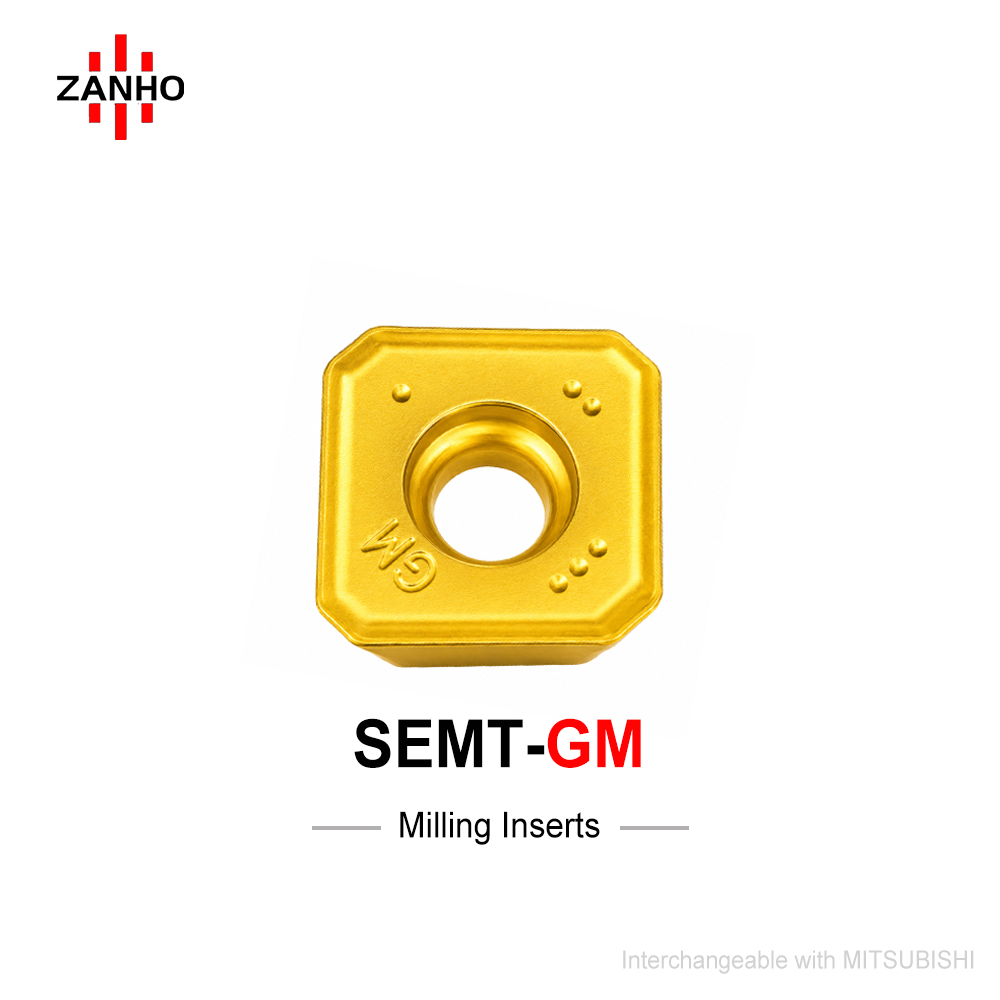

SEMT13T3AGSN-GM

ZANHO SEMT13T3AGSN-GM is a high-versatility 45° face milling insert featuring the GM chipbreaker for stable general-purpose machining. Designed for ASX445 cutters, it integrates a BS wiper to deliver premium surface finishes on both floors and shoulders in a single pass. A perfect balance of light cutting and edge durability.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • 45° Lead Angle: Versatile design for both face milling and step/shoulder processing.
  • GM General Geometry: Balanced chipbreaker for stable performance across diverse materials and medium-allowance cuts.
  • Integrated BS Wiper: Large 1.9mm wiper edge ensures superior surface finishes in one pass.
  • Cooler Cutting: 20° clearance angle and specialized edge treatment suppress vibration and heat buildup.
  • ASX445 Optimized: 4 effective edges provide maximum indexing economy for ASX445 series tool holders.

Technical Specifications (mm)

Model I.C Size Thickness (S) Screw Hole (D1) Radius (RE) Wiper (BS) Lead Angle
SEMT13T3AGSN-GM 13.4 3.97 4.3 1.5 1.9 45°

High-Stability Milling for General Applications

ZANHO SEMT-GM series ensures cost-effective production. Contact us for bulk B2B inquiry and tool holder compatibility.
