SEMT13T3AGSN-JM

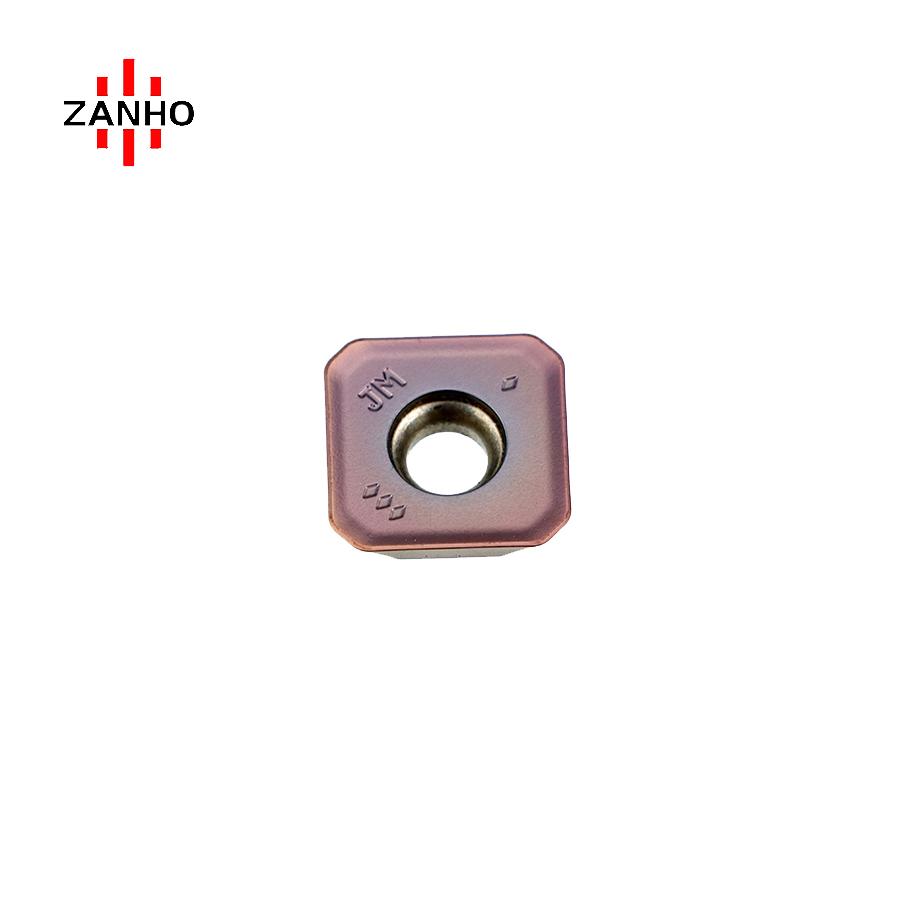

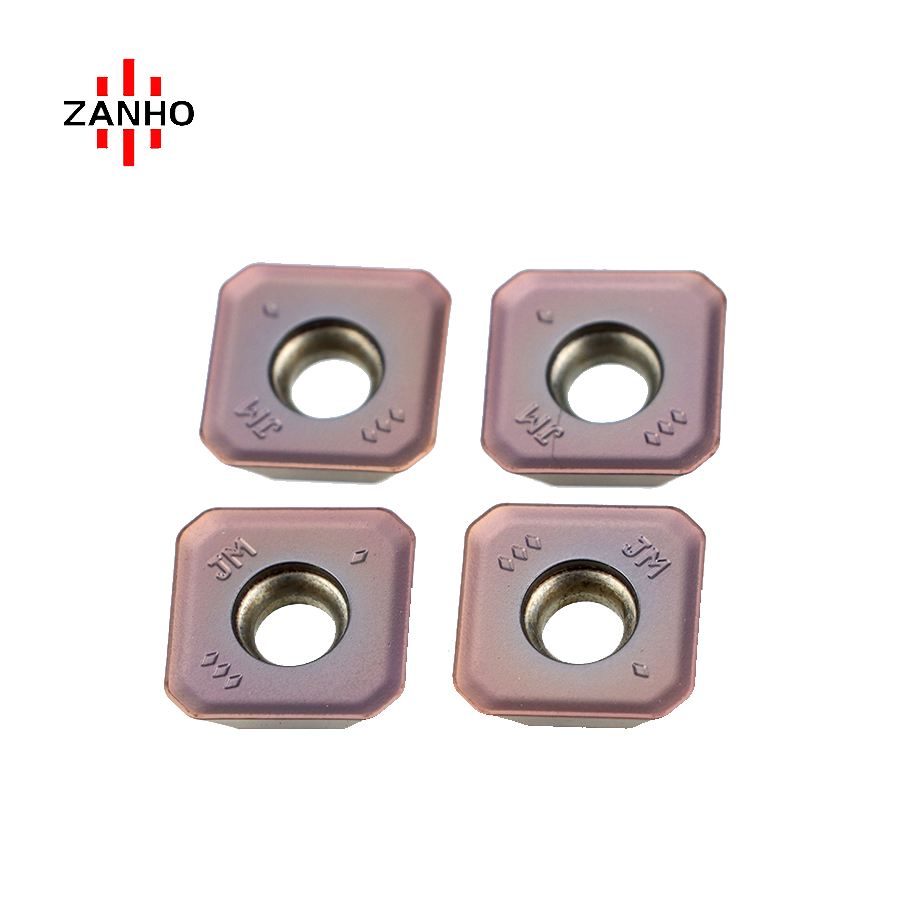

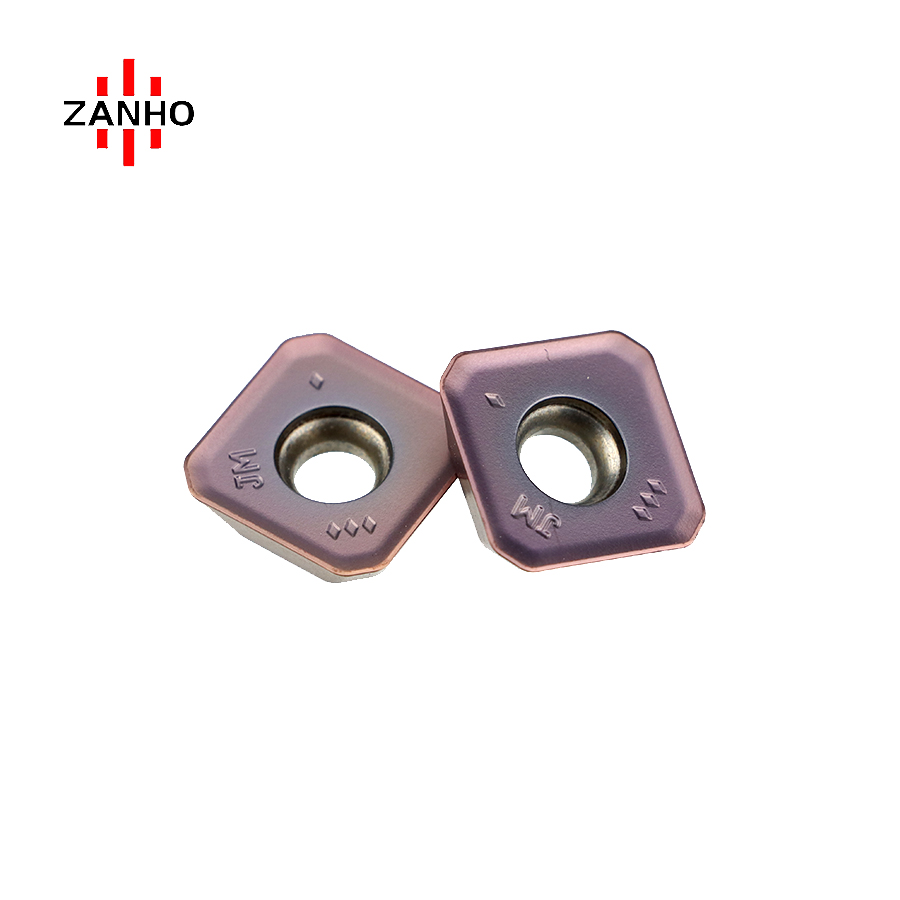

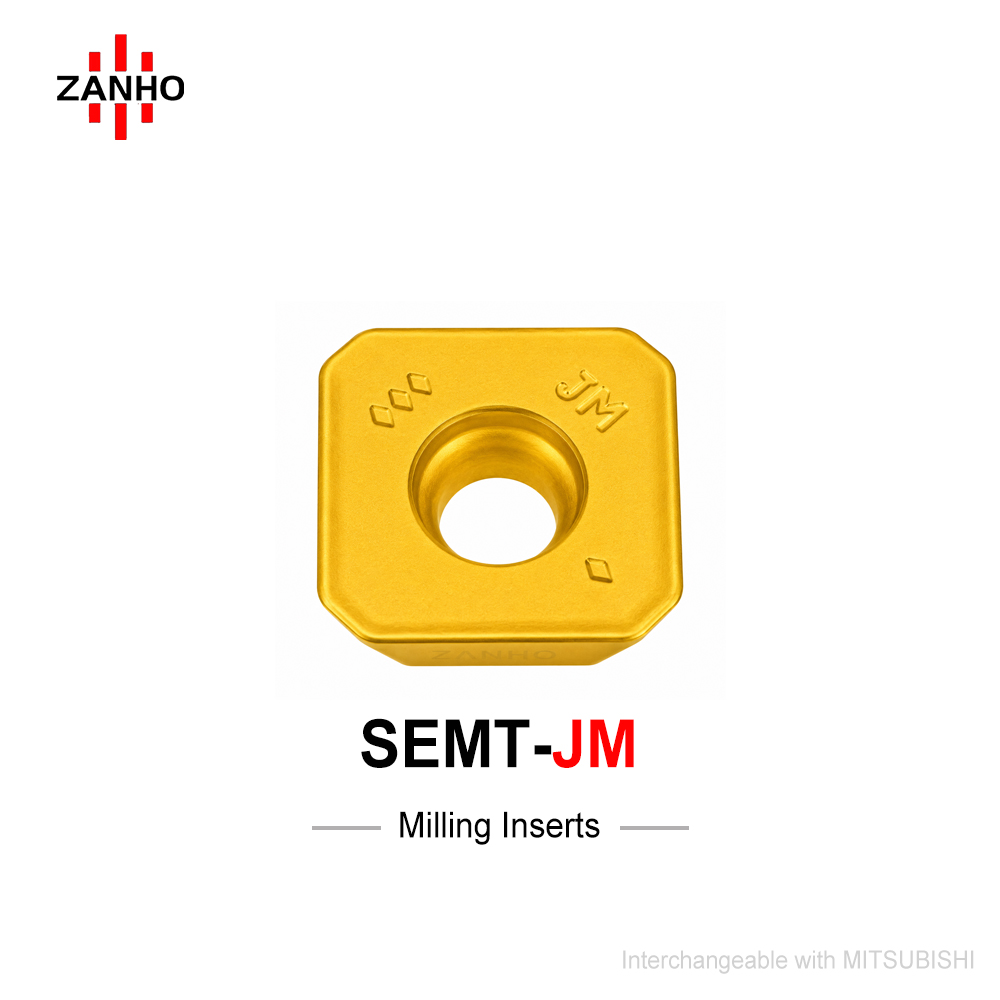

ZANHO SEMT13T3AGSN-JM is a high-performance 45° lead angle square insert designed for integrated face, shoulder, and side-wall milling. Featuring the JM chipbreaker, it perfectly balances edge strength with light cutting action to suppress vibration and reduce heat. With its integrated BS wiper, this single-sided 4-edge insert delivers superior surface quality in a single pass. Optimized for ASX445 cutter bodies.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • 45° Lead Angle Versatility: Enables seamless transitions between face milling roughing and step/shoulder side-wall processing, improving multi-task efficiency.
  • JM Universal Chipbreaker: Optimized for medium allowance milling, the JM geometry effectively curl chips and reduces cutting resistance for a smoother process.
  • Integrated BS Wiper: Precision-engineered wiper edge maintains high surface finish quality on both the floor and side walls simultaneously.
  • Light Cutting Geometry: A 20° clearance angle (AN) reduces heat accumulation and suppresses vibration, extending tool life in stable and unstable conditions.
  • ASX445 Compatibility: Specifically designed for ASX445 series cutter bodies, providing 4 effective edges for maximum indexing economy.

Technical Specifications (mm)

Model I.C Size Thickness (S) Screw Hole (D1) Radius (RE) Wiper (BS) Lead Angle (KR)
SEMT13T3AGSN-JM 13.4 mm 3.97 mm 4.3 mm 1.5 mm 1.9 mm 45°

Optimized Efficiency for Shoulder and Face Milling

ZANHO SEMT series ensures precision and cost-effective metal removal. Contact us for bulk B2B pricing and ASX445 compatible tool holders.
