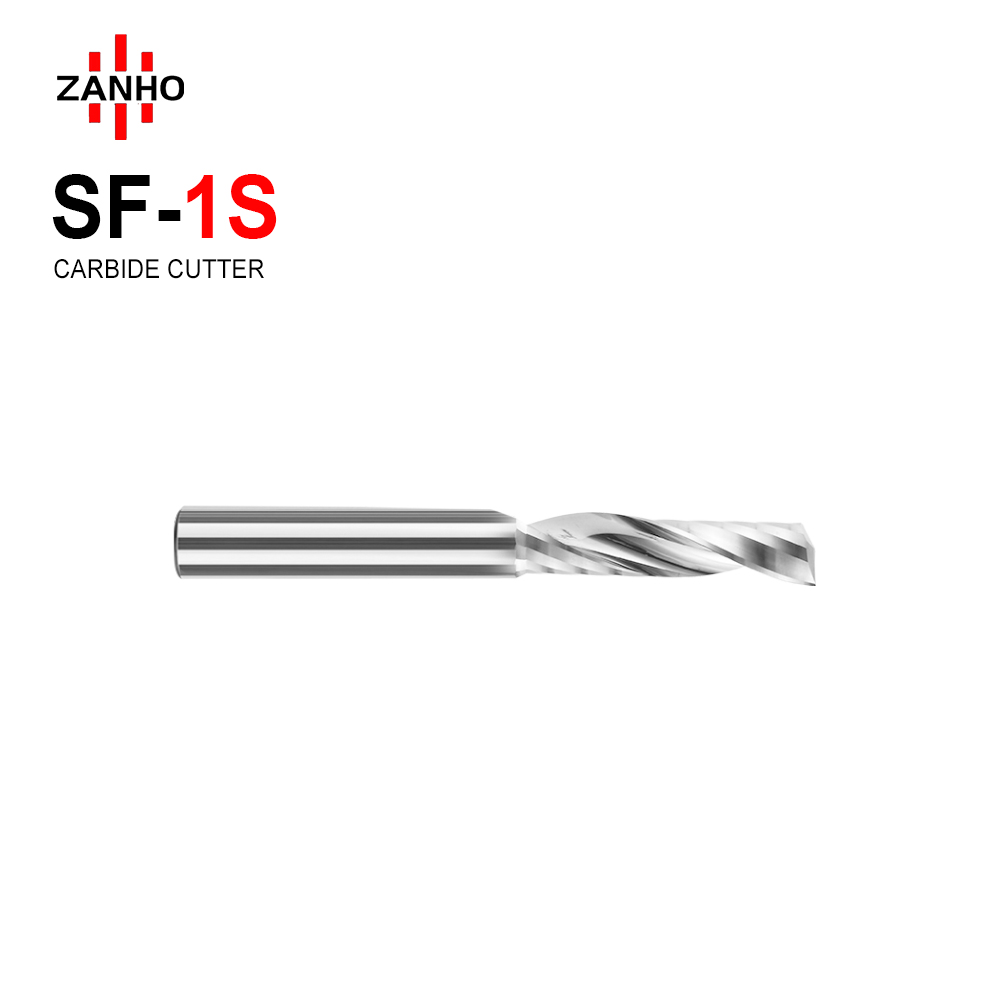

Single O-Flute End Mill for Acrylic

  • Acrylic Specialist: Specifically engineered for high-speed cutting of Acrylic, PVC, and Plastics, delivering a crystal-clear, mirror-like edge finish.
  • Single O-Flute Design: Provides maximum chip space for ultra-fast material removal, effectively preventing material melting and tool clogging during operation.
  • Mirror-Finish Quality: Features precision-ground, mirror-polished flutes to ensure a smooth, burr-free cut that requires minimal secondary polishing.
  • Massive L1 Reach: Available with extended flute lengths up to 55mm, ideal for one-pass cutting through thick plastic sheets and MDF.
  • Workpiece Compatibility: Highly effective for Acrylic (PMMA), PVC, Plastics, MDF, and softwoods (Workpiece category N).
  • Versatile Shanks: Includes standard 3.175mm (1/8") shanks for small CNC routers and full-sized industrial shanks for high-stability machining.
Categories:
Learn More
Download PDF
Description
  • Acrylic Specialist: Specifically engineered for high-speed cutting of Acrylic, PVC, and Plastics, delivering a crystal-clear, mirror-like edge finish.
  • Single O-Flute Design: Provides maximum chip space for ultra-fast material removal, effectively preventing material melting and tool clogging during operation.
  • Mirror-Finish Quality: Features precision-ground, mirror-polished flutes to ensure a smooth, burr-free cut that requires minimal secondary polishing.
  • Massive L1 Reach: Available with extended flute lengths up to 55mm, ideal for one-pass cutting through thick plastic sheets and MDF.
  • Workpiece Compatibility: Highly effective for Acrylic (PMMA), PVC, Plastics, MDF, and softwoods (Workpiece category N).
  • Versatile Shanks: Includes standard 3.175mm (1/8") shanks for small CNC routers and full-sized industrial shanks for high-stability machining.

Order Number Specification D L1 D1 L
SF-1S-01003 D1*3H*D3.175*38L*1F 1 3 3.175 38
SF-1S-01508 D1.5*8H*D3.175*38L*1F 1.5 8 3.175 38
SF-1S-01510 D1.5*10H*D3.175*38L*1F 1.5 10 3.175 38
SF-1S-02008 D2*8H*D3.175*38L*1F 2 8 3.175 38
SF-1S-02010 D2*10H*D3.175*38L*1F 2 10 3.175 38
SF-1S-02510 D2.5*10H*D3.175*38L*1F 2.5 10 3.175 38
SF-1S-03012 D3*12H*D3.175*38L*1F 3 12 3.175 38
SF-1S-01812 D3.175*12H*38L*1F 3.175 12 / 38
SF-1S-01815 D3.175*15H*38L*1F 3.175 15 / 38
SF-1S-01817 D3.175*17H*38L*1F 3.175 17 / 38
SF-1S-01822 D3.175*22H*45L*1F 3.175 22 / 45
SF-1S-01825 D3.175*25H*45L*1F 3.175 25 / 45
SF-1S-04012 D4*12H*45L*1F 4 12 / 45
SF-1S-04015 D4*15H*45L*1F 4 15 / 45
SF-1S-04017 D4*17H*45L*1F 4 17 / 45
SF-1S-04022 D4*22H*45L*1F 4 22 / 45
SF-1S-04025 D4*25H*45L*1F 4 25 / 45
SF-1S-05017 D5*17H*50L*1F 5 17 / 50
SF-1S-06017 D6*17H*50L*1F 6 17 / 50
SF-1S-06022 D6*22H*50L*1F 6 22 / 50
SF-1S-06025 D6*25H*50L*1F 6 25 / 50
SF-1S-06032 D6*32H*60L*1F 6 32 / 60
SF-1S-08022 D8*22H*60L*1F 8 22 / 60
SF-1S-08025 D8*25H*60L*1F 8 25 / 60
SF-1S-08032 D8*32H*60L*1F 8 32 / 60
SF-1S-10032 D10*32H*75L*1F 10 32 / 75
SF-1S-10052 D10*52H*100L*1F 10 52 / 100
SF-1S-12035 D12*35H*75L*1F 12 35 / 75
SF-1S-12055 D12*55H*100L*1F 12 55 / 100
