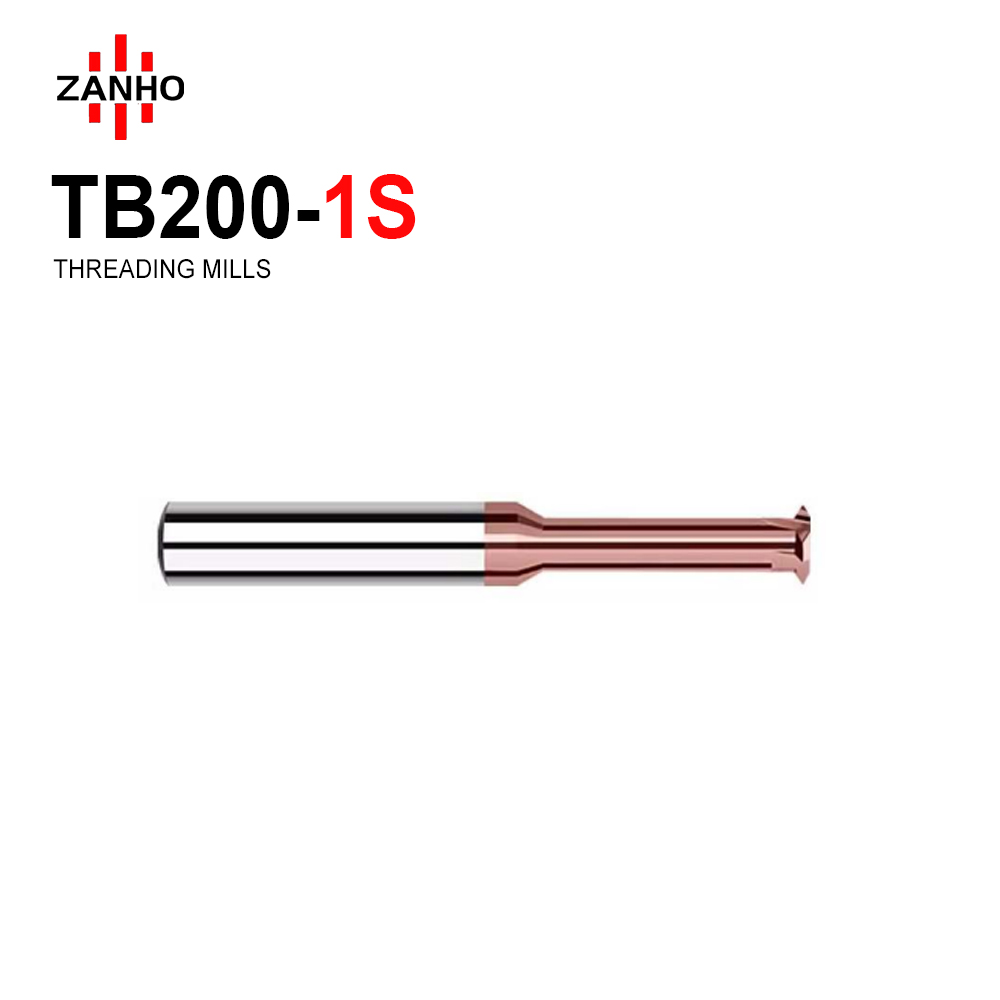

Single Tooth for Hardened Steel

  • Hardened Steel Specialist: Specifically engineered for precision thread milling in Hardened Materials (up to 65 HRC) and heat-treated mold steels.
  • Universal Single-Tooth Design: Allows for machining multiple thread pitches with a single tool, significantly reducing tooling costs and inventory requirements.
  • Minimized Cutting Force: Single-tooth geometry reduces tool load and vibration, ensuring a stable threading cycle and superior surface finish in tough metals.
  • Micro to Large Range: Comprehensive specs from ultra-fine M0.8 to large M30 industrial threads, meeting diverse precision machining demands.
  • Rigid Construction: Made from premium sub-micron grain carbide for maximum edge strength and long-lasting tool reliability.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 牙距 P 刀径 D 有效长 L1 柄径 D1 总长 L
TB200-1S-0080200 M0.8x0.2 0.2-0.225 0.55 2 4 50
TB200-1S-0090225 M0.9x0.225 0.225-0.3 0.6 2 4 50
TB200-1S-0100250 M1x0.25 0.25-0.35 0.73 2.3 4 50
TB200-1S-0120250 M1.2x0.25 0.25-0.35 0.92 2.8 4 50
TB200-1S-0140300 M1.4x0.3 0.3-0.4 1.05 3.2 4 50
TB200-1S-0160350 M1.6x0.35 0.35-0.4 1.21 3.5 4 50
TB200-1S-0200400 M2x0.4 0.4-0.5 1.54 4.5 4 50
TB200-1S-0250450 M2.5x0.45 0.45-0.5 1.96 5.5 4 50
TB200-1S-0300500 M3x0.5 0.5-0.6 2.4 7 4 50
TB200-1S-0400700 M4x0.7 0.5-0.8 3.15 10 4 50
TB200-1S-4500800 M5x0.8 0.5-1.0 4 12 4 50
TB200-1S-0500800 M5x0.8 0.5-1.0 4 13 6 50
TB200-1S-0601000 M6x1.0 0.5-1.0 4.75 15 6 50
TB200-1S-0801250 M8x1.25 0.5-1.25 5.95 20 6 60
TB200-1S-1001500 M10x1.5 0.8-1.5 7.9 25 8 60
TB200-1S-1201750 M12x1.75 1.0-2.5 9.9 30 10 75
TB200-1S-1602000 M16x2.0 1.0-3.0 11.9 35 12 75
TB200-1S-1802500 M18x2.5 1.0-4.0 14 40 14 100
TB200-1S-2002500 M20x2.5 2.0-5.0 16 45 16 100
TB200-1S-2403000 M24x3.0 2.0-5.0 16 45 16 100
TB200-1S-3003500 M30x3.5 3.0-6.0 20 50 20 100

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
