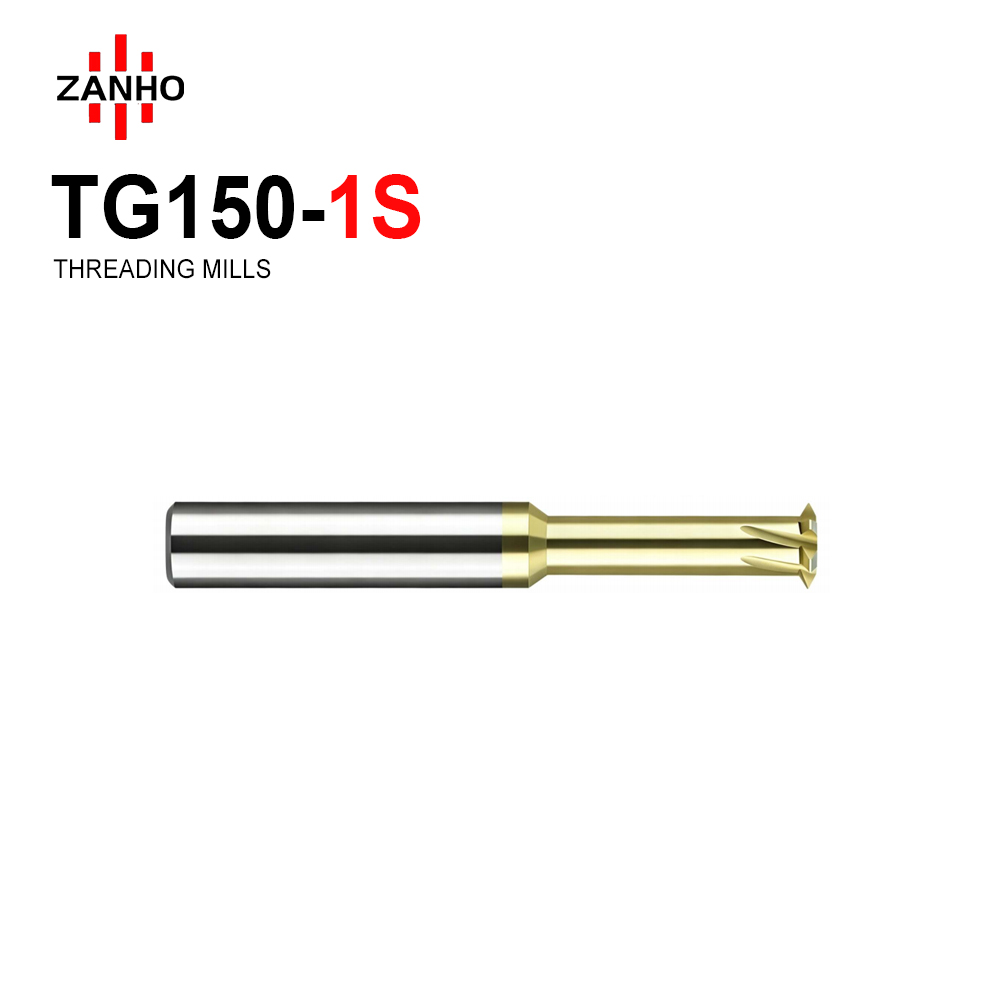

Single-Tooth for Titanium Alloy

  • Titanium Alloy Specialist: Specifically engineered for the most demanding applications in Titanium Alloy, Inconel, and Heat-Resistant Steels (Workpiece Category S).
  • Reduced Cutting Resistance: Single-Tooth Design significantly lowers tool load and heat buildup, effectively preventing tool breakage in difficult-to-cut materials.
  • Superior Heat Protection: Features a high-performance coating optimized for high-temperature stability and wear resistance in abrasive alloys.
  • Ultimate Versatility: One tool can machine multiple thread pitches for the same ISO profile, offering a cost-effective and flexible solution for diverse CNC tasks.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 牙距 P 刀径 D 有效长 L1 柄径 D1 总长 L
TG150-1S-0080200 M0.8x0.2 0.2-0.225 0.55 2 4 50
TG150-1S-0090225 M0.9x0.225 0.225-0.3 0.6 2 4 50
TG150-1S-0100250 M1x0.25 0.25-0.35 0.73 2.3 4 50
TG150-1S-0120250 M1.2x0.25 0.25-0.35 0.92 2.8 4 50
TG150-1S-0140300 M1.4x0.3 0.3-0.4 1.05 3.2 4 50
TG150-1S-0160350 M1.6x0.35 0.35-0.4 1.21 3.5 4 50
TG150-1S-0200400 M2x0.4 0.4-0.5 1.54 4.5 4 50
TG150-1S-0250450 M2.5x0.45 0.45-0.5 1.96 5.5 4 50
TG150-1S-0300500 M3x0.5 0.5-0.6 2.4 7 4 50
TG150-1S-0400700 M4x0.7 0.5-0.8 3.15 10 4 50
TG150-1S-4500800 M5x0.8 0.5-1.0 4 12 4 50
TG150-1S-0500800 M5x0.8 0.5-1.0 4 13 6 50
TG150-1S-0601000 M6x1.0 0.5-1.0 4.75 15 6 50
TG150-1S-0801250 M8x1.25 0.5-1.25 5.95 20 6 60
TG150-1S-1001500 M10x1.5 0.8-1.5 7.9 25 8 60
TG150-1S-1201750 M12x1.75 1.0-2.5 9.9 30 10 75
TG150-1S-1602000 M16x2.0 1.0-3.0 11.9 35 12 75
TG150-1S-1802500 M18x2.5 1.0-4.0 14 40 14 100
TG150-1S-2002500 M20x2.5 2.0-5.0 16 45 16 100
TG150-1S-2403000 M24x3.0 2.0-5.0 16 45 16 100
TG150-1S-3003500 M30x3.5 3.0-6.0 20 50 20 100
