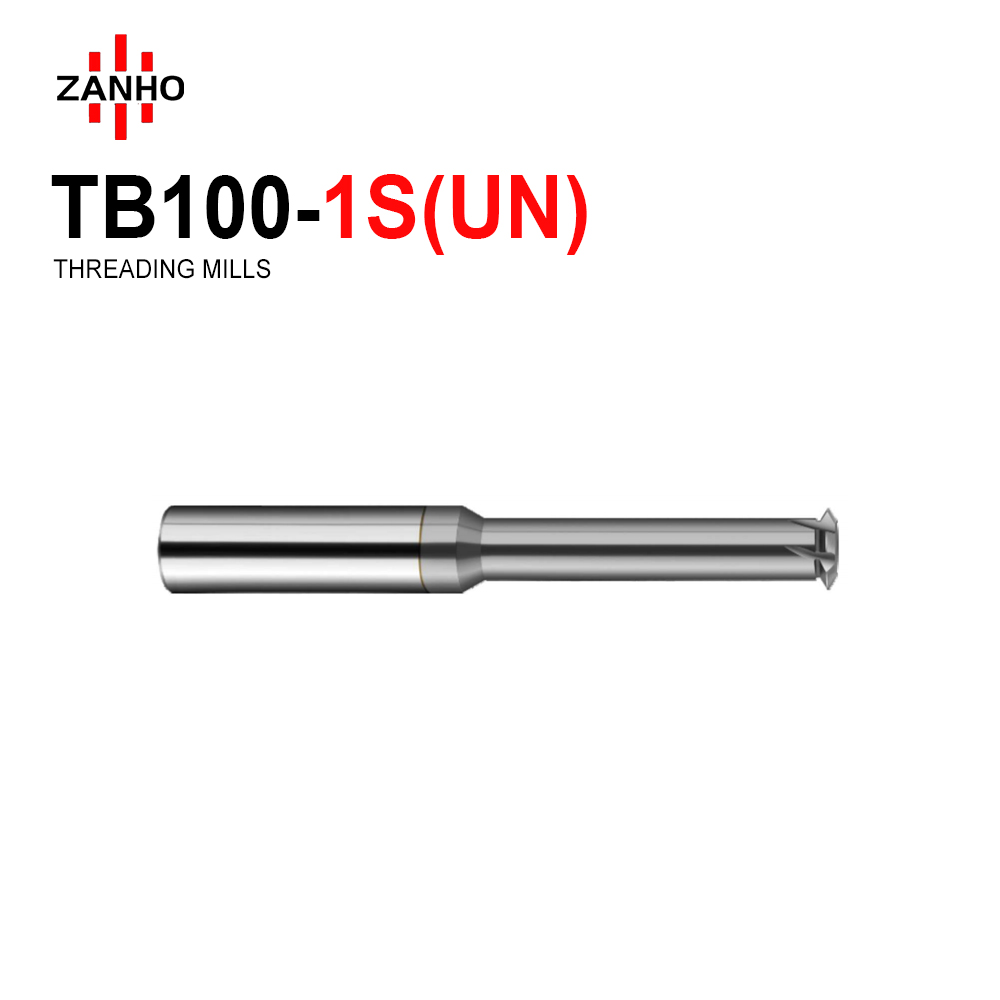

Single-Tooth for UN (American) Threads

  • UN Standard Specialist: Specifically designed for high-precision American Unified Threads, covering UNC (Coarse), UNF (Fine), and UNS (Special) standards.
  • Universal Single-Tooth Design: Allows one tool to machine multiple thread pitches for the same UN profile, significantly reducing tooling costs and inventory requirements.
  • Micro to Large Capacity: Extensive range from micro #0-80UNF threads up to large 1" industrial thread components.
  • Multi-Material Performance: Optimized for stable and accurate results in Carbon Steel, Stainless Steel, Cast Iron, and Aluminum.
  • Premium Carbide Substrate: Made from high-quality micro-grain carbide to ensure exceptional edge sharpness and a superior surface finish.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D 有效长 L1 柄径 D1 总长 L
TB100-1S-00080UNC 0-80UNC 1.05 3.2 4 50
TB100-1S-010064UNC 1-64UNC 1.21 3.5 4 50
TB100-1S-010072UNF 1-72UNF 1.21 3.5 4 50
TB100-1S-020056UNC 2-56UNC 1.5 5 4 50
TB100-1S-030048UNC 3-48UNC 1.96 5.5 4 50
TB100-1S-040040UNC 4-40UNC 2.13 8.2 4 50
TB100-1S-050040UNC 5-40UNC 2.13 8.2 4 50
TB100-1S-060032UNC 6-32UNC 2.56 7.4 4 50
TB100-1S-080032UNC 8-32UNC 3.2 11 4 50
TB100-1S-080036UNF 8-36UNF 3.3 12 4 50
TB100-1S-100024UNC 10-24UNC 3.3 12 4 50
TB100-1S-100032UNF 10-32UNF 3.8 10 4 50
TB100-1S-010420UNC 1/4-20UNC 4.6 16 6 50
TB100-1S-010428UNF 1/4-28UNF 5.0 16 6 50
TB100-1S-010436UNF 1/4-36UNS 5.0 16 6 50
TB100-1S-051618UNC 5/16-18UNC 6.0 16 6 50
TB100-1S-051624UNF 5/16-24UNF 6.0 16 6 50
TB100-1S-051632UNEF 5/16-32UNEF 6.0 16 6 50
TB100-1S-030816UNC 3/8-16UNC 7.7 20 8 60
TB100-1S-030824UNF 3/8-24UNF 8.0 25 8 60
TB100-1S-030832UNEF 3/8-32UNEF 8.0 25 8 60
TB100-1S-071614UNC 7/16-14UNC 8.0 25 8 60
TB100-1S-071620UNF 7/16-20UNF 9.4 28 10 75
TB100-1S-010213UNC 1/2-13UNC 10 30 10 75
TB100-1S-010220UNF 1/2-20UNF 10 30 10 75
TB100-1S-091612UNC 9/16-12UNC 10 30 10 75
TB100-1S-091618UNF 9/16-18UNF 12 35 12 75
TB100-1S-091624UNEF 9/16-24UNEF 12 35 12 75
TB100-1S-050811UNC 5/8-11UNC 12 35 12 100
TB100-1S-050818UNF 5/8-18UNF 14 40 14 100
TB100-1S-030410UNC 3/4-10UNC 16 45 16 75
TB100-1S-030416UNF 3/4-16UNF 12 35 12 100
TB100-1S-070809UNC 7/8-9UNC 16 45 16 100
TB100-1S-070814UNF 7/8-14UNF 16 45 16 100
TB100-1S-100008UNC 1'-8UNC 16 45 16 100
TB100-1S-100012UNF 1'-12UNF 16 45 16 100
TB100-1S-101212UNF 1'-12UNF 12 35 12 75
TB100-1S-100032UN 1'-32UN 12 35 12 75
