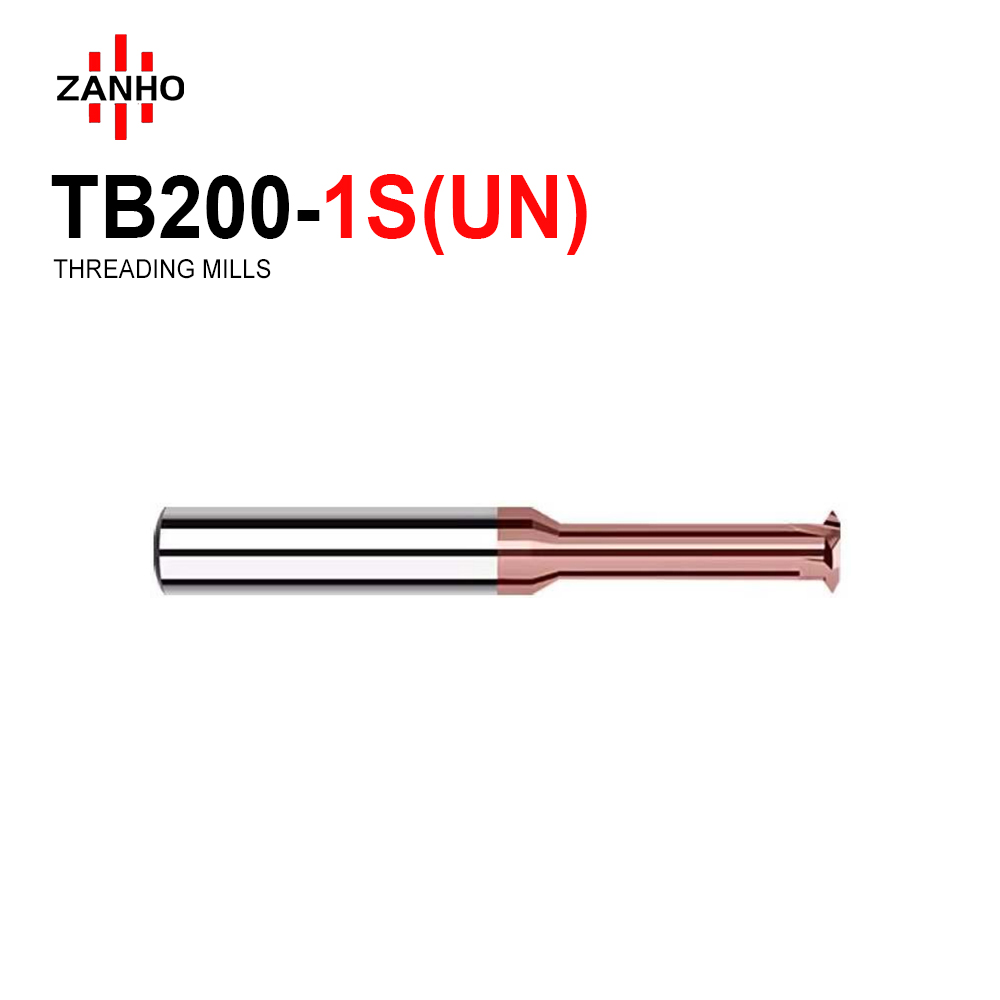

TB200-1S (UN)|UN Single-Tooth Carbide Thread Mill for Hard Steel

Hardened Steel Specialist: Specifically engineered for high-precision American Unified Threads in Hardened Materials (up to 65 HRC) and heat-treated mold steels.
Universal Single-Tooth Design: Allows one tool to machine multiple TPI (Threads Per Inch) specifications for the same UN profile, maximizing tooling flexibility and cost-efficiency.
Minimized Tool Load: Single-tooth geometry significantly reduces cutting forces and vibration, ensuring a stable threading cycle and superior finish in high-hardness internal cavities.
Comprehensive UN Range: Extensive selection from micro 0-80UNF threads up to large 1" industrial thread components (UNC, UNF, UNEF, UNS).

Categories: Thread Mills

Download PDF

订货号 Order Number	规格 Specification	刀径 D	有效长 L1	柄径 D1	总长 L
TB200-1S-000080UNF	0-80UNF	1.05	3.2	4	50
TB200-1S-010064UNC	1-64UNC	1.21	3.5	4	50
TB200-1S-010072UNF	1-72UNF	1.21	3.5	4	50
TB200-1S-020056UNC	2-56UNC	1.5	5	4	50
TB200-1S-030048UNC	3-48UNC	1.96	5.5	4	50
TB200-1S-040040UNC	4-40UNC	2.13	8.2	4	50
TB200-1S-050040UNC	5-40UNC	2.13	8.2	4	50
TB200-1S-060032UNC	6-32UNC	2.56	7.4	4	50
TB200-1S-080032UNC	8-32UNC	3.2	11	4	50
TB200-1S-080036UNF	8-36UNF	3.3	12	4	50
TB200-1S-100024UNC	10-24UNC	3.3	12	4	50
TB200-1S-100032UNF	10-32UNF	3.8	10	4	50
TB200-1S-010420UNC	1/4-20UNC	4.6	16	6	50
TB200-1S-010428UNF	1/4-28UNF	5	16	6	50
TB200-1S-010436UNS	1/4-36UNS	5	16	6	50
TB200-1S-051618UNC	5/16-18UNC	6	16	6	50
TB200-1S-051624UNF	5/16-24UNF	6	16	6	50
TB200-1S-051632UNEF	5/16-32UNEF	6	16	6	50
TB200-1S-030816UNC	3/8-16UNC	7.7	20	8	60
TB200-1S-030824UNF	3/8-24UNF	8	25	8	60
TB200-1S-030832UNEF	3/8-32UNEF	8	25	8	60
TB200-1S-071614UNC	7/16-14UNC	8	25	8	60
TB200-1S-071620UNF	7/16-20UNF	9.4	28	10	75
TB200-1S-010213UNC	1/2-13UNC	10	30	10	75
TB200-1S-010220UNF	1/2-20UNF	10	30	10	75
TB200-1S-091612UNC	9/16-12UNC	10	30	10	75
TB200-1S-091618UNF	9/16-18UNF	12	35	12	75
TB200-1S-091624UNEF	9/16-24UNEF	12	35	12	75
TB200-1S-050811UNC	5/8-11UNC	12	35	12	100
TB200-1S-050818UNF	5/8-18UNF	14	40	14	100
TB200-1S-030410UNC	3/4-10UNC	16	45	16	75
TB200-1S-030416UNF	3/4-16UNF	12	35	12	100
TB200-1S-070809UNC	7/8-9UNC	16	45	16	100
TB200-1S-070814UNF	7/8-14UNF	16	45	16	100
TB200-1S-100008UNC	1'-8UNC	16	45	16	100
TB200-1S-100012UNF	1'-12UNF	16	45	16	100
TB200-1S-121012UNF	1'-12UNF	12	35	12	75
TB200-1S-100032UN	1'-32UN	12	35	12	75
