SNMA

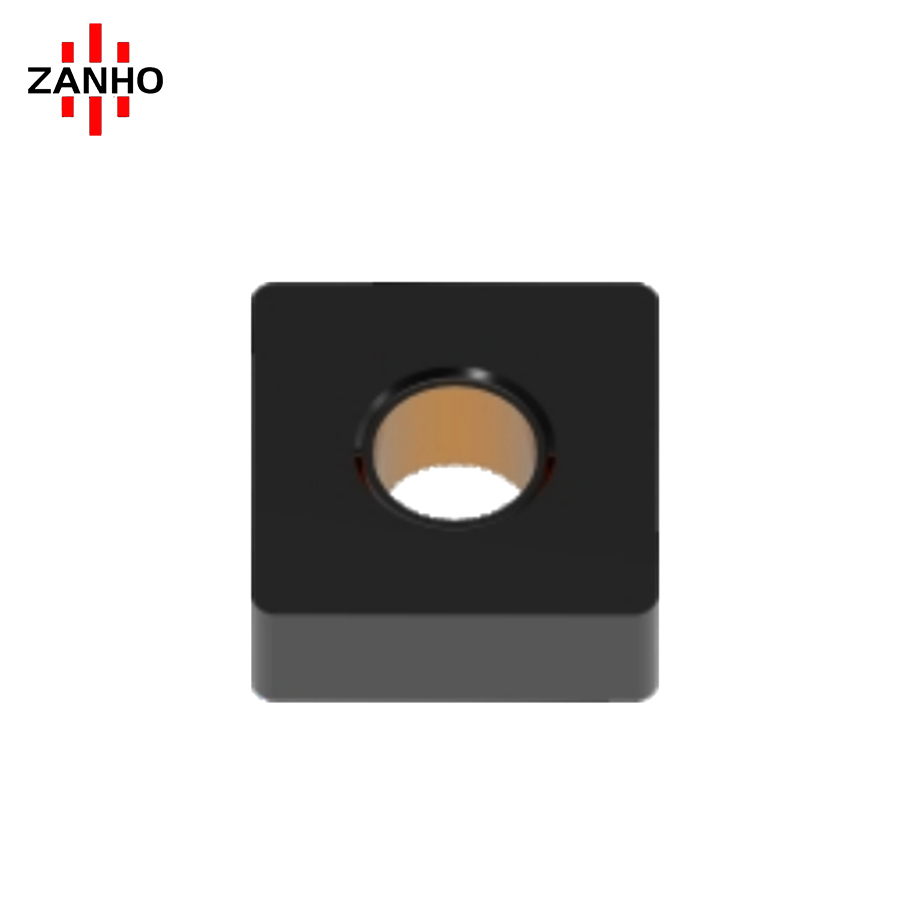

SNMA120412

ZANHO SNMA1204 series is a premium Flat-Top Square turning insert engineered for Heavy Roughing. Without a chipbreaker, it prioritizes extreme edge strength and impact resistance, making it the ultimate choice for large allowance removal and interrupted cuts in Cast Iron and Steel. With 8 usable cutting corners, it offers exceptional economic value for high-load machining environments.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Extreme Edge Strength: The flat-top design without chipbreaker maximizes tool tip thickness, providing unparalleled resistance to chipping and breakage.
  • High Impact Resistance: Specially developed for interrupted cutting and heavy-duty turning where mechanical shock is present.
  • 8 Cutting Corners: Double-sided square geometry provides 8 effective cutting edges, significantly reducing cost-per-corner.
  • Heavy Allowance Removal: Capable of stable machining at cutting depths up to 6.0mm, ideal for roughing Cast Iron and Steel workpieces.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
SNMA120404 0.20 - 0.80 1.5 - 6.0
SNMA120408 0.20 - 0.80 1.5 - 6.0
SNMA120412 0.20 - 0.80 1.5 - 6.0

Ready for Heavy-Duty Production?

ZANHO SNMA series is built for the toughest environments. Contact us for bulk orders, material-specific grade advice, and global logistics support.
