SNMG-GZ

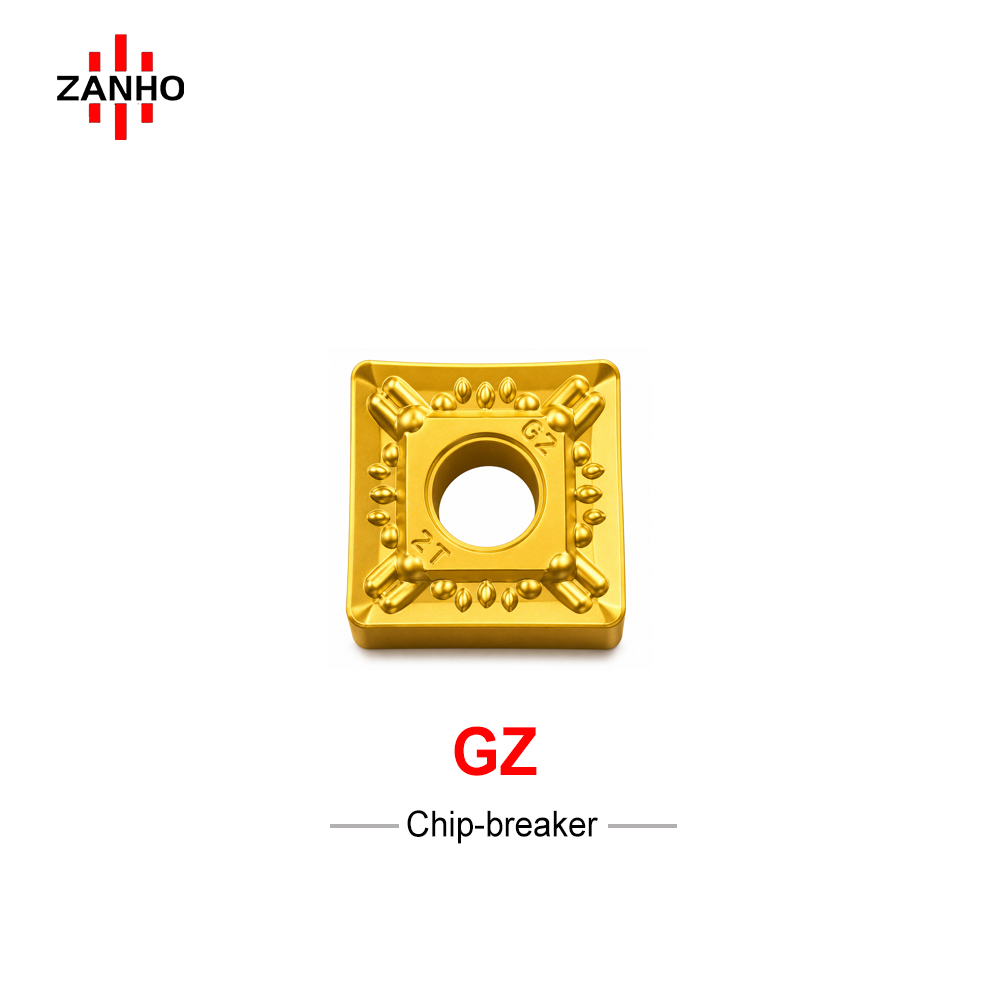

ZANHO SNMM-GZ series is a heavy-duty square negative turning insert specifically engineered for Rough Machining. Featuring a reinforced GZ chipbreaker, it is capable of handling extreme cutting depths up to 15mm and high feed rates. Built for high-volume metal removal, it provides maximum edge strength and thermal stability for heavy-duty turning in carbon steel and alloy steel components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Heavy Roughing Specialist: Engineered for high-load machining, capable of massive metal removal rates in heavy-duty CNC turning.
  • Reinforced GZ Chipbreaker: A high-strength geometry designed to handle deep cuts (ap up to 15mm) and heavy feeds without edge chipping.
  • Maximum Edge Durability: The thick, negative square cross-section provides the ultimate structural support required for heavy cutting forces and interrupted cuts.
  • High Productivity: Supports feed rates up to 1.00 mm/r, significantly reducing cycle times in large-scale manufacturing and forging machining.

Technical Specifications

Model Feed (f) Cut Depth (ap)
SNMM150612-GZ 0.30 - 1.00 mm/r 5.0 - 15.0 mm
SNMM190612-GZ 0.30 - 0.75 mm/r 3.0 - 9.0 mm
SNMM190616-GZ 0.40 - 0.90 mm/r 3.0 - 9.0 mm

Facing Difficult Heavy-Duty Tasks?

ZANHO specialized roughing grades are designed for high heat resistance and edge toughness. Inquire for the optimal coating recommendations for your material.
