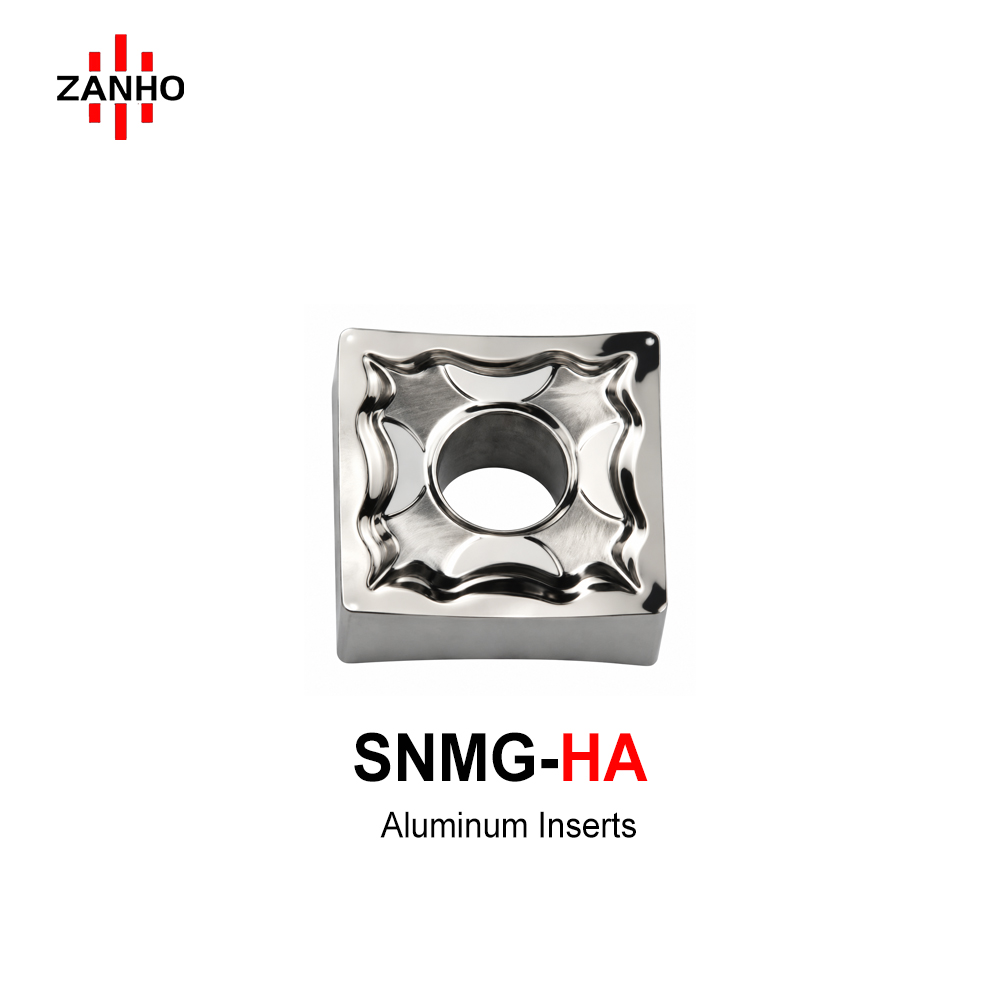

SNMG-HA

ZANHO SNMG-HA series: High-strength uncoated carbide inserts featuring a buffed mirror rake face. Designed for medium-roughing of aluminum and non-ferrous metals, these square inserts provide excellent edge strength and anti-adhesion properties, significantly reducing cutting force and heat during heavy-duty turning.
Categories:
Learn More
Download PDF
Description

Technical Features

  • Mirror Polished Surface: Buffed rake face prevents aluminum chips from welding to the tool.
  • HA Chipbreaker: Optimized geometry for medium-roughing with high efficiency chip evacuation.
  • Uncoated Carbide Grade: Superior sharpness and toughness for non-ferrous material machining.
  • Square Geometry: 4 cutting edges provide high strength and cost-effectiveness for turning operations.
  • Low Cutting Pressure: Sharp edges reduce vibration and improve work-piece surface integrity.

SNMG-HA Dimensions (mm)

ISO Designation L I.C S D1 R
SNMG120402-HA 12.7 12.7 4.76 5.16 0.2
SNMG120404-HA 0.4
SNMG120408-HA 0.8

Matching Accessories

Tool Holder Shim Clamp Screw Wrench
PSBNR/L, PSTNN/L
PSKNR/L, PSSNR/L		 CTM617 HL1814 ML0625 L2.5, L3.0

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
