SNMG-MA

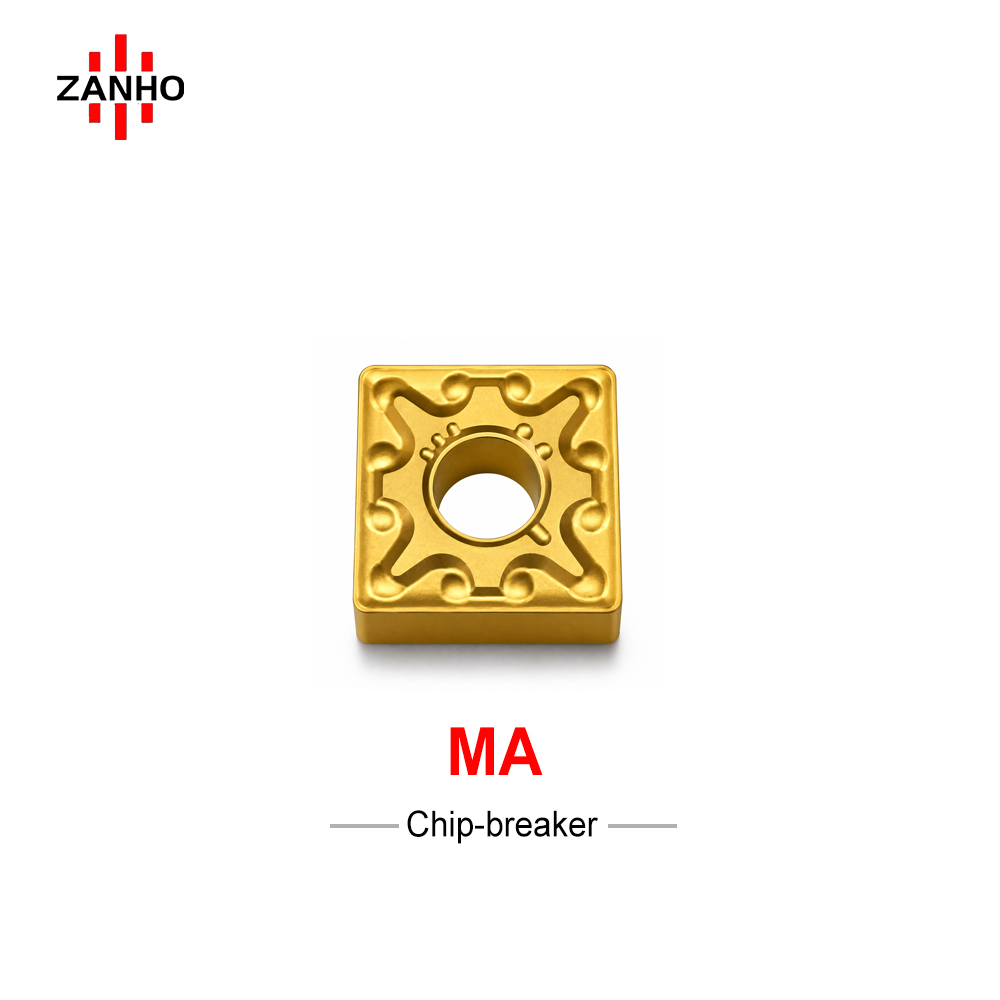

ZANHO SNMG-MA series is a high-performance square negative turning insert specifically designed for Medium Machining. Featuring the specialized MA chipbreaker, it delivers high cutting edge strength and superior chip control. It is an ideal choice for general-purpose CNC turning of carbon and alloy steels, ensuring long tool life and stable machining processes.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Specialist: Optimized for semi-roughing to medium finishing applications, ensuring stability across diverse CNC turning operations.
  • MA Chipbreaker Geometry: Advanced design for stable chip breaking at medium feed rates, effectively reducing cutting temperature and tool wear.
  • High Edge Integrity: The negative square geometry provides four robust cutting corners, offering maximum strength for high metal removal rates.
  • Wide Feed & Depth Range: Supports feed rates up to 0.55 mm/r and depths up to 5.0mm, providing great versatility for various steel machining tasks.

Technical Specifications

Model Feed (f) Cut Depth (ap)
SNMG120404-MA 0.20 - 0.50 mm/r 0.5 - 4.0 mm
SNMG120408-MA 0.13 - 0.50 mm/r 0.5 - 5.0 mm
SNMG120412-MA 0.15 - 0.55 mm/r 0.5 - 5.0 mm

Need a Technical Consult?

ZANHO provides a wide range of CVD and PVD coatings to match your specific material requirements. Contact us for the optimal grade selection.
