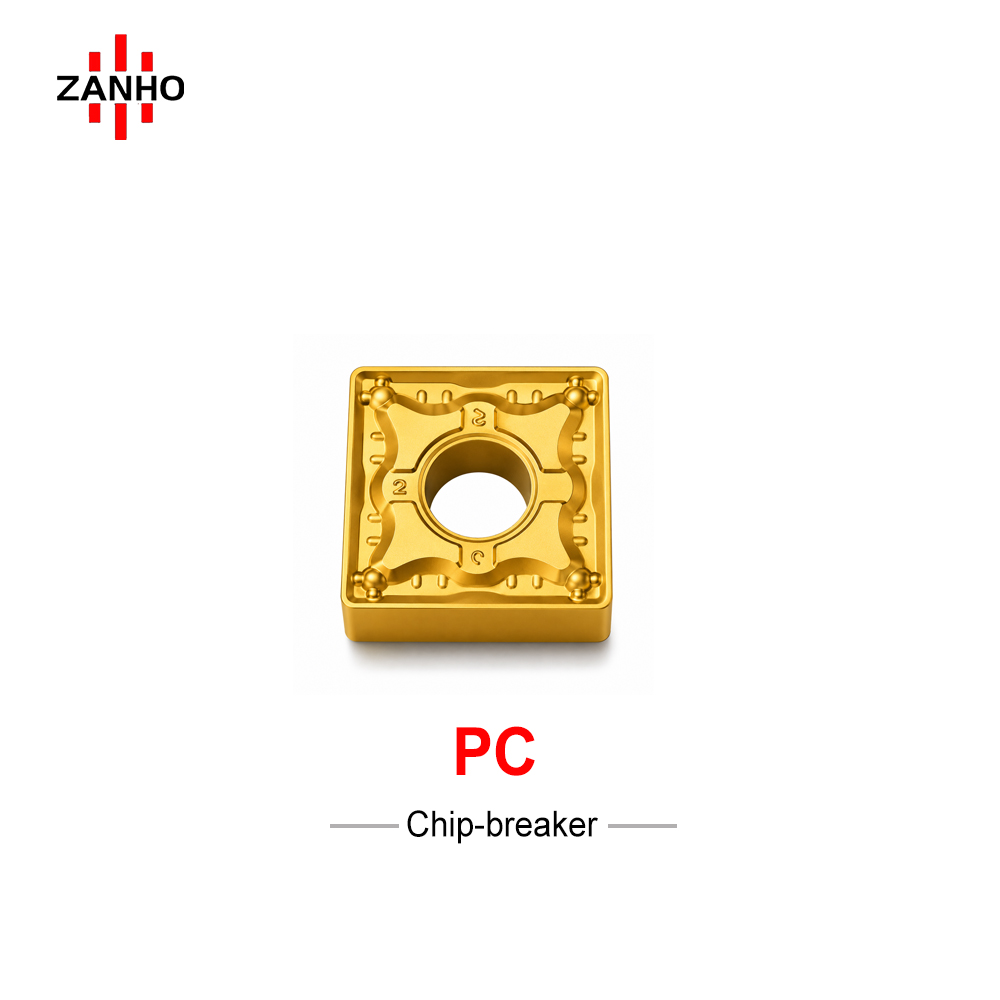

SNMG-PC

ZANHO SNMG-PC series is a professional-grade square negative turning insert engineered for Medium Machining. Featuring the specialized PC chipbreaker, it delivers exceptional stability and reliable chip breaking even under varying feed rates. The negative geometry provides superior edge strength, making it the ideal choice for general-purpose turning of steel and alloy steel components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Specialist: Optimized for semi-roughing to medium finishing applications, ensuring high productivity in general CNC turning.
  • PC Chipbreaker Geometry: Advanced design specifically for stable chip breaking at medium feed rates, preventing chip nesting and surface damage.
  • Four Cutting Corners: The square negative design provides four robust cutting edges, offering maximum cost-efficiency and edge strength.
  • Wide Machining Envelope: Supports cutting depths from 0.4mm up to 5.0mm, providing great versatility for various workpiece diameters.

Technical Specifications

Model Feed (f) Cut Depth (ap)
SNMG120404-PC 0.12 - 0.40 mm/r 0.4 - 5.0 mm
SNMG120408-PC 0.15 - 0.50 mm/r 0.5 - 5.0 mm
SNMG120412-PC 0.15 - 0.50 mm/r 0.6 - 5.0 mm

Optimize Your Turning Operations

Custom coatings (CVD/PVD) are available to enhance tool life for specific steel grades. Inquire now for a tailored tooling solution.
