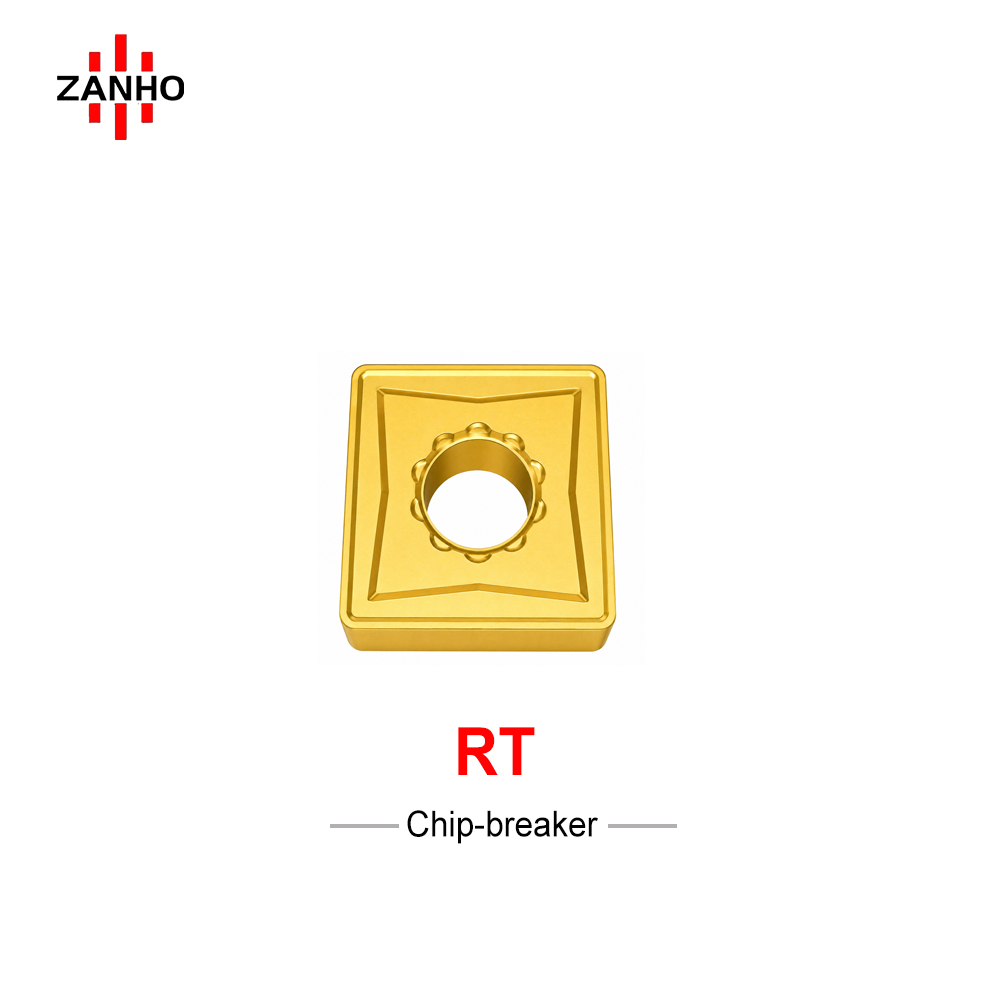

SNMG-RT

ZANHO SNMG-RT series is a robust square negative turning insert specifically designed for Rough Machining. Featuring the specialized RT chipbreaker, it offers high edge strength and stable chip control at large feed rates and significant depths of cut. It is the ideal solution for heavy-duty turning of steel and alloy steel components, ensuring maximum productivity in demanding CNC operations.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Rough Machining Specialist: Optimized for high-volume metal removal, ensuring durability and efficiency in heavy-duty roughing applications.
  • RT Chipbreaker Geometry: Designed for superior chip control and edge stability at high feed rates (up to 0.75 mm/r), preventing chip nesting.
  • High Edge Strength: The negative square design provides a thick, robust cutting edge capable of handling large depths of cut (ap up to 9.0mm).
  • Consistent Reliability: Maintains excellent performance and thermal stability during long-running heavy turning cycles in carbon and alloy steels.

Technical Specifications

Model Feed (f) Cut Depth (ap)
SNMG190612-RT 0.30 - 0.70 mm/r 3.0 - 7.0 mm
SNMG190616-RT 0.30 - 0.75 mm/r 3.0 - 9.0 mm

Facing Heavy Metal Removal Challenges?

ZANHO provides specialized CVD coated grades for maximum wear resistance in roughing. Contact us to optimize your tooling parameters.
