SNMG-YM

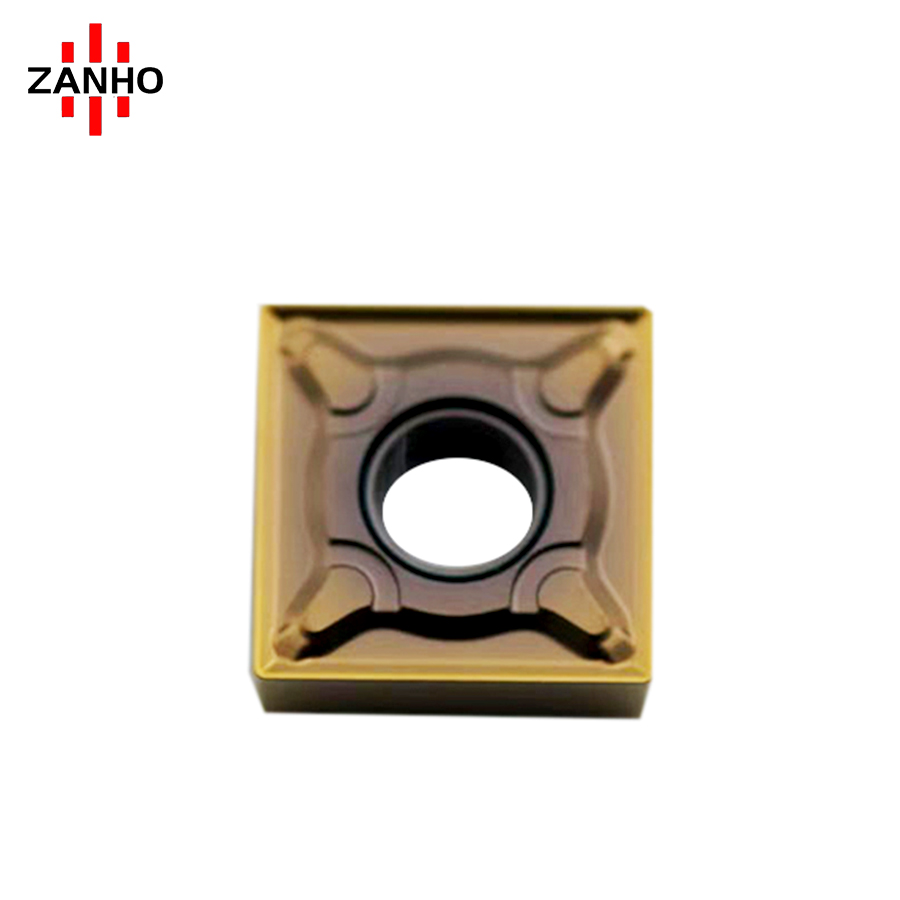

ZANHO SNMG-YM series is a specialized square negative turning insert designed for Stainless Steel Semi-Finishing and Semi-Roughing. Featuring a Double Rake Angle design, it perfectly balances cutting sharpness with edge strength. The unique YM chipbreaker with a raised structure and large lateral grooves ensures smooth chip evacuation and prevents chip accumulation, even in sticky stainless steel machining environments.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Stainless Steel Specialist: Optimized for M-group materials, specifically handling the work-hardening tendencies of stainless steel.
  • Double Rake Angle Design: Engineering a sharp cutting edge while maintaining high fracture resistance for demanding semi-roughing tasks.

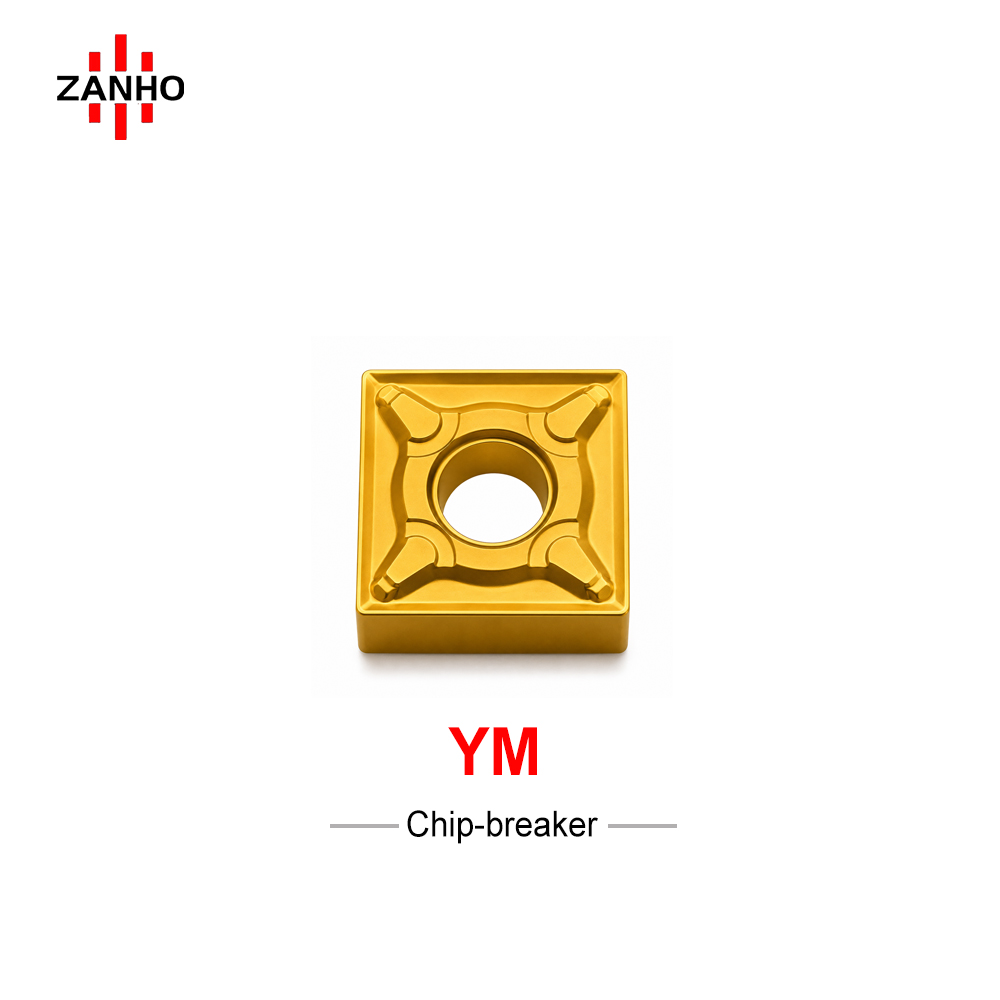

  • Raised Chipbreaker Structure: Delivers stable chip breaking across a wide range of feed rates (0.2-0.5) and cutting depths (0.3-4.0mm).
  • Large Side Grooves: Provides ample chip pocket space to facilitate rapid chip removal and prevent surface scratching from chip accumulation.

Technical Specifications

Model Feed (f) Cut Depth (ap)
SNMG120404-YM 0.2 - 0.5 mm/r 0.3 - 4.0 mm
SNMG120408-YM 0.2 - 0.5 mm/r 0.3 - 4.0 mm
SNMG120412-YM 0.2 - 0.5 mm/r 0.3 - 4.0 mm

Optimizing for Tough Materials?

ZANHO offers PVD coated grades (e.g., ZP25) specifically for heat-resistant alloys and stainless steel. Inquire today for custom solutions.
