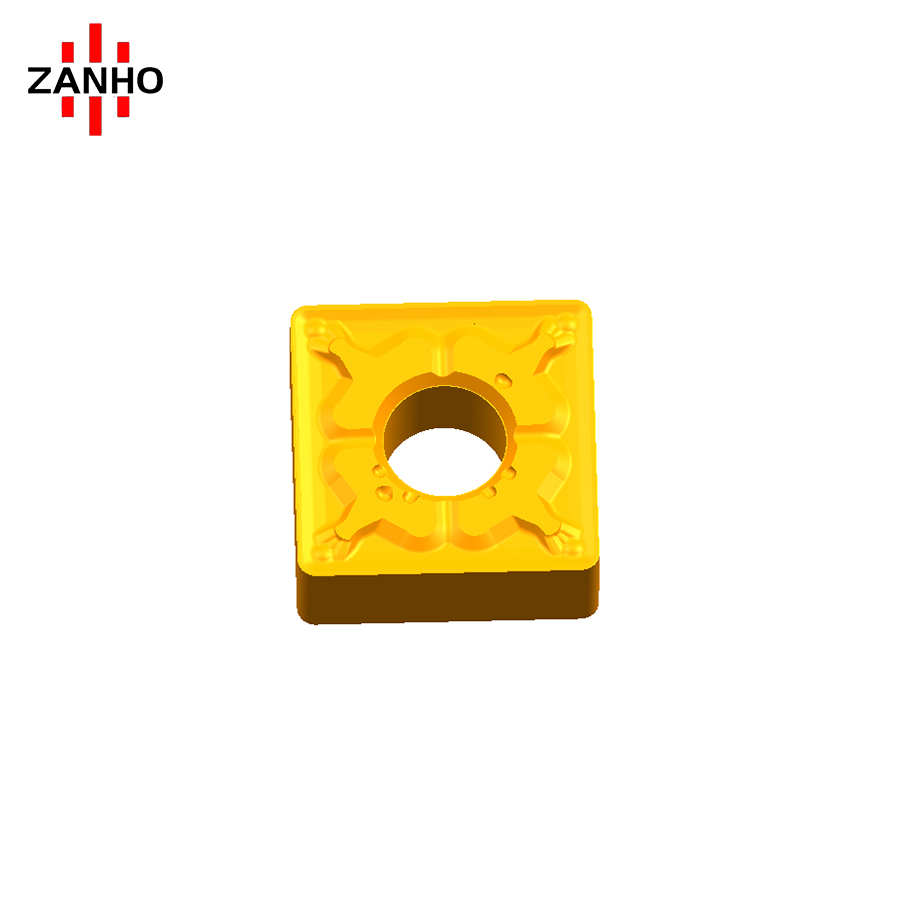

SNMG120408-TM

ZANHO SNMG-TM series is a professional square negative turning insert specifically designed for Medium Machining. Featuring the specialized TM chipbreaker, it delivers high cutting edge strength and stable chip evacuation. It is the optimal choice for general-purpose steel turning, providing a perfect balance between metal removal rate and tool life.

Categories: SNMG Inserts

Key Performance & Features

Medium Machining Optimization: Engineered for semi-finishing to medium roughing, ensuring consistent performance in general CNC turning operations.

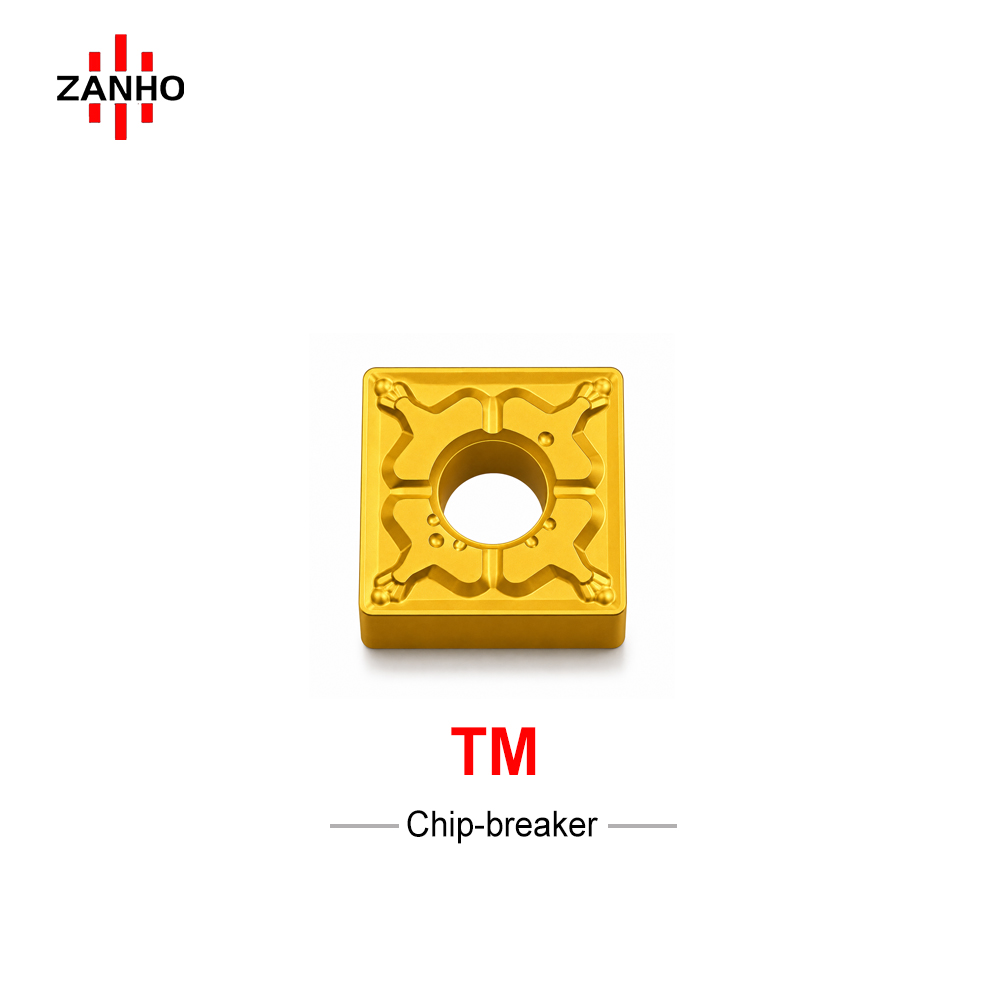

TM Chipbreaker Geometry: Advanced design for reliable chip breaking at medium feed rates, reducing heat generation and surface damage.
High Edge Strength: The negative square geometry combined with TM reinforcement provides excellent fracture resistance, even in slightly interrupted cuts.
Reliable Stability: Maintains sharp cutting action and dimensional accuracy throughout long production cycles in steel and alloy steels.

Technical Specifications

Model	Feed (f)	Cut Depth (ap)
SNMG120404-TM	0.20 - 0.50 mm/r	1.0 - 5.0 mm
SNMG120408-TM	0.20 - 0.50 mm/r	1.0 - 5.0 mm
SNMG120412-TM	0.20 - 0.50 mm/r	1.0 - 5.0 mm

Enhance Your Machining Efficiency

Custom coatings (CVD/PVD) are available to optimize tool life for your specific workpiece material. Contact our sales team for professional advice.
