SNMU-GM

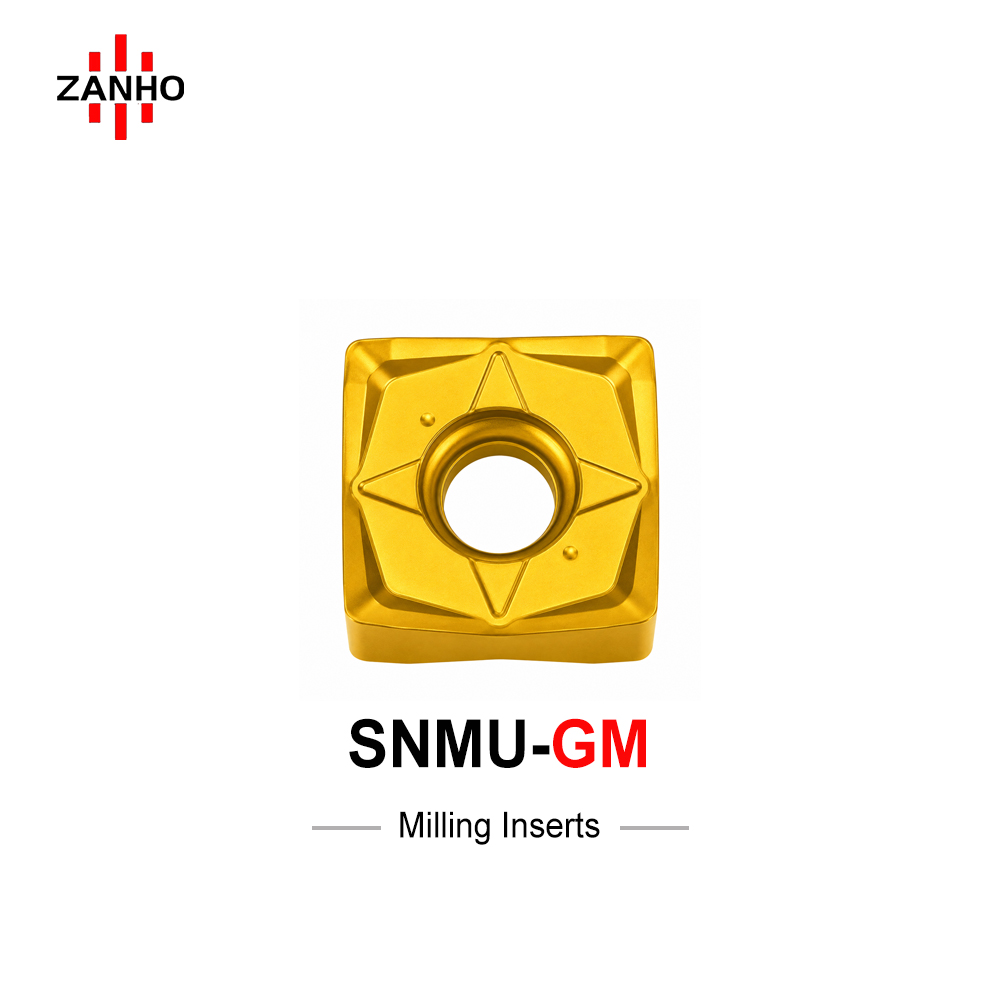

ZANHO SNMU-GM series features high-efficiency double-sided 8-edge square milling inserts designed for 88° lead angle face milling cutters (such as MFSN88). The universal GM chipbreaker balances edge strength with low cutting resistance, providing superior chip curling and evacuation. Optimized for medium roughing in Steel, Stainless Steel, and Cast Iron, these inserts support stable performance in both continuous and light-interrupted cutting. The unique 8-cutting edge structure delivers maximum economic value for large-scale industrial face milling and shallow shoulder applications.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Double-Sided 8-Edge Economy: The square pentagonal design provides 8 usable cutting edges per insert, significantly lowering the cost-per-edge for high-volume face milling.
  • Optimized 88° Lead Angle Performance: Specifically engineered for MFSN88 series cutters to achieve high metal removal rates with reduced axial forces.
  • Balanced GM Chipbreaker: A versatile geometry that reconciles edge toughness with sharpness, ensuring smooth cutting and excellent chip fragmenting in Steel and Iron.
  • Enhanced Chip Evacuation: Optimized chip-pocket design facilitates fast heat dissipation and prevents chip re-cutting, extending tool life in roughing conditions.
  • Stable Process Security: Ideal for both face milling and shallow shoulder milling, delivering reliable results in continuous and light interrupted operations.

Dimensional Specifications (mm)

Model IC (mm) S (Thickness) D1 (Hole Dia) RE (Radius) Edges Compatible Cutter
SNMU090408EN-GM 9.0 4.0 4.3 0.8 8 MFSN88 Series
SNMU130508EN-GM 13.0 5.5 4.7 0.8 8 MFSN88 Series

Ready for High-Efficiency Face Milling?

ZANHO SNMU-GM series delivers the ultimate balance of durability and cost-efficiency. Contact us for bulk B2B pricing and technical machining guides.
