SNMX-GM

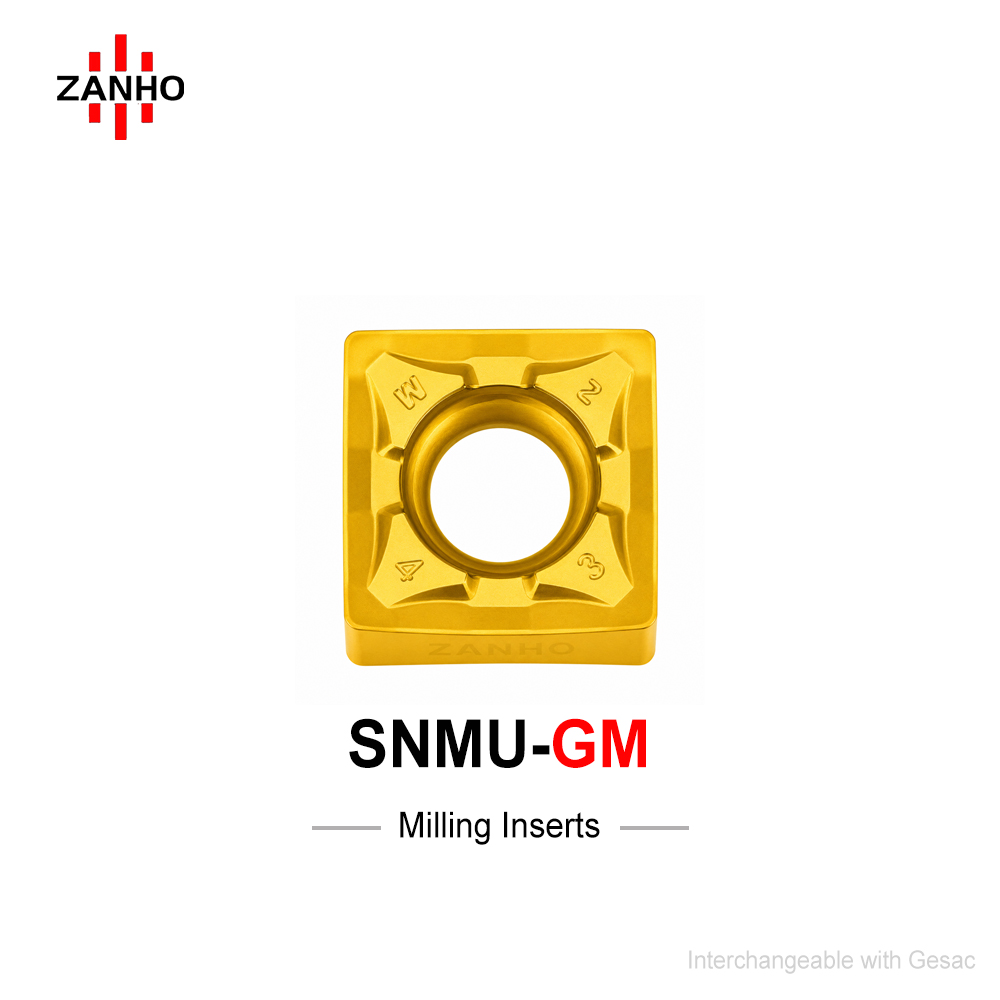

ZANHO SNMU1206 series is an ultra-economical double-sided 8-edge insert designed for high-feed roughing. By redirecting cutting forces axially toward the spindle, it enables high metal removal rates even on general-rigidity machines. Available in 45° (ANEN) for maximum stability and 88° (ZNEN) for close-wall shoulder milling, featuring the GM universal chipbreaker for versatile material applications.
Categories:
Learn More
Download PDF
Description

Core Technical Advantages

  • Efficiency-Driven (High Feed): Specialized geometry thins chips and directs forces axially toward the spindle, allowing extreme feed rates on low-power or older CNC machines.
  • Ultimate 8-Edge Economy: Double-sided square design provides 8 effective corners. The negative rake (N) adds impact resistance, drastically lowering the cost per cutting edge.
  • Stability-Focused Entry: 45° lead angle ensures gradual entry to reduce vibration and chip thickness. Integrated large arc wipers (BS) deliver excellent surface quality.
  • GM Universal Geometry: A versatile "General Material" design that covers Steel, Stainless Steel, and Cast Iron, reducing tool inventory and exchange complexity.
  • Process Reliability: Robust construction handles black skin, casting crust, and interrupted cuts with reliable chip evacuation.

Specifications (mm)

Model Length (LE) I.C (IC) Thickness (S) Wiper (BS) Lead Angle Radius (RE)
SNMU1206ANEN-GM 9.1 12.7 6.35 1.6 45° 0.8
SNMU1206ZNEN-GM 10.7 12.7 6.35 1.1 88° 0.8

Stable, Efficient, and Rugged Milling

ZANHO SNMU series is designed for mass-production roughing. Contact us for bulk B2B inquiry and holder compatibility.
