SNMX1206ANN-MM

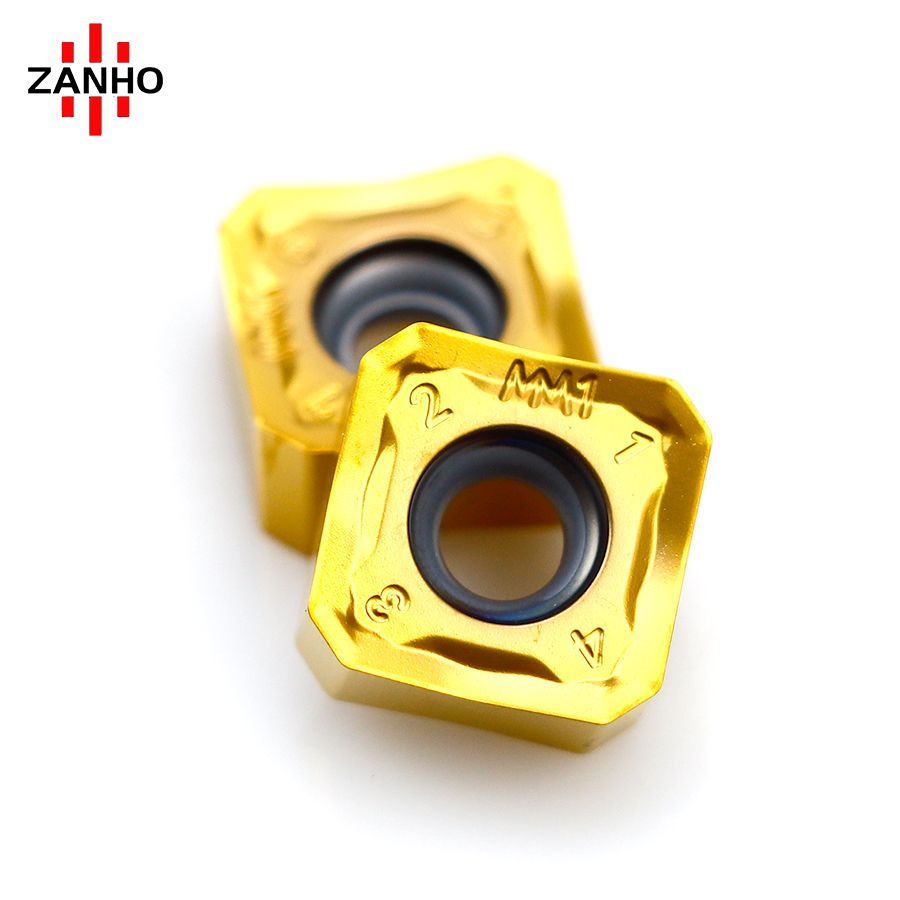

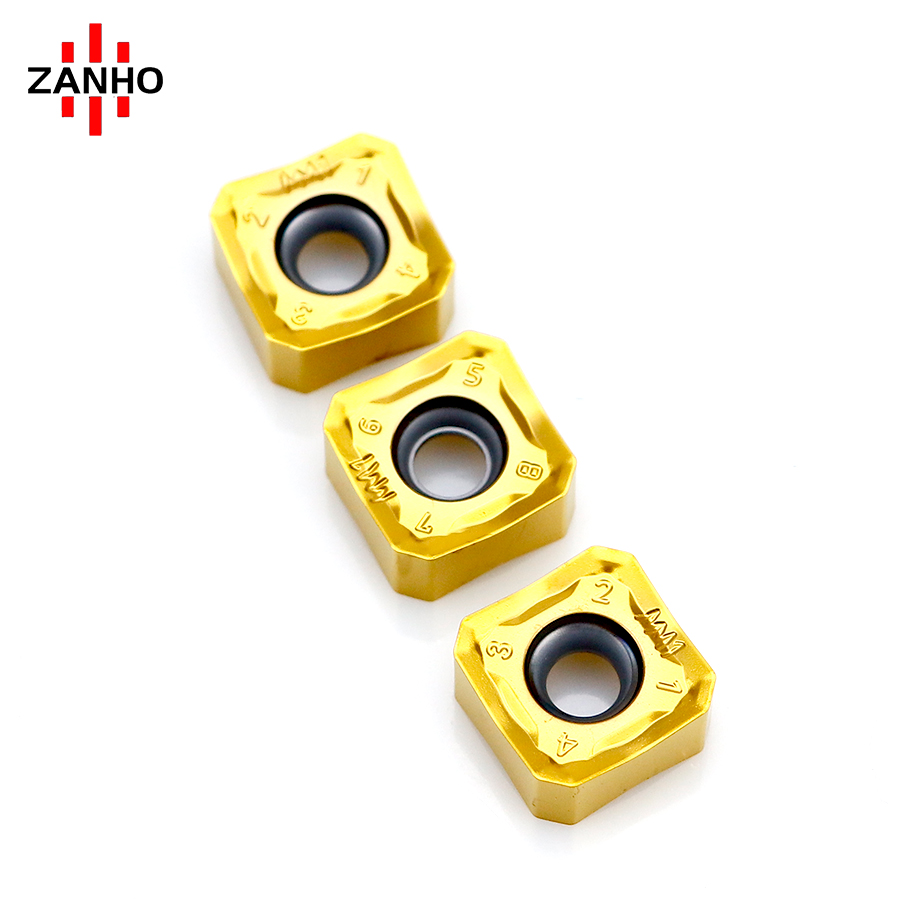

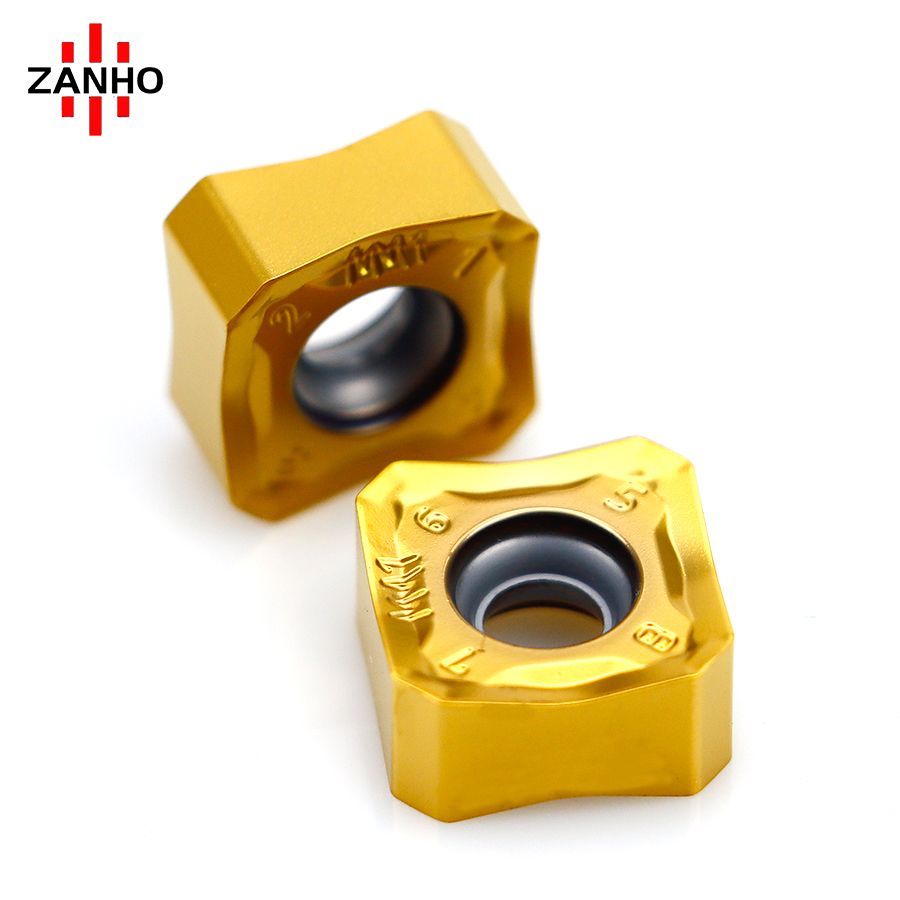

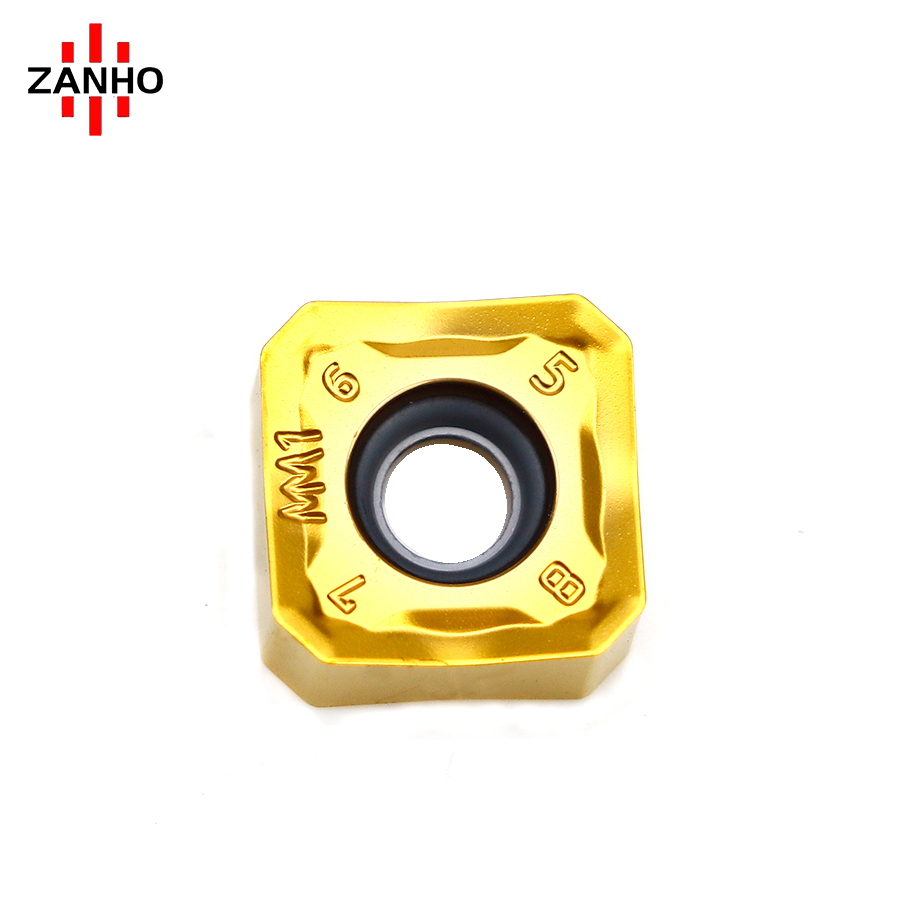

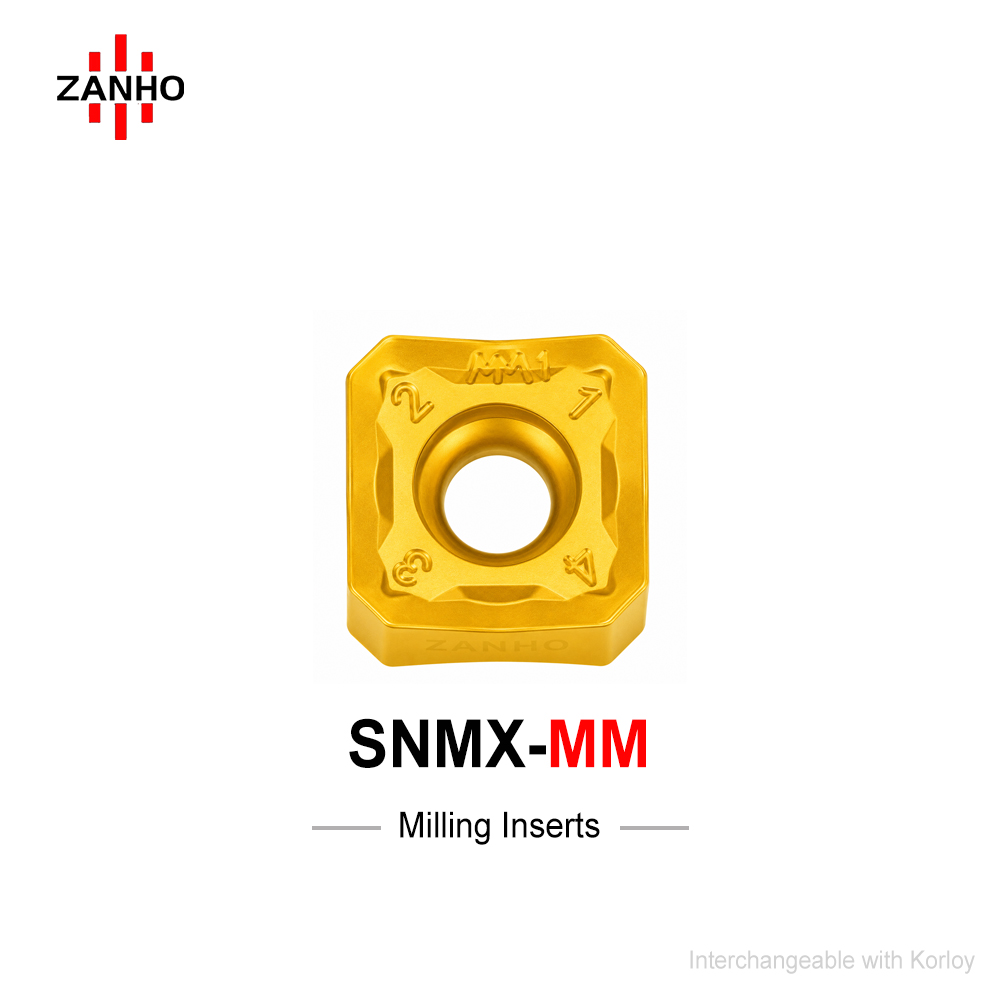

ZANHO SNMX1206ANN-MM is a high-economy double-sided 8-edge negative insert designed for 45° high-feed face milling and pocket roughing. Featuring the MM chipbreaker, it balances low cutting resistance with superior edge strength under large feed rates. Optimized for RM8-X cutter bodies, it delivers high-efficiency roughing on general-rigidity CNC machines.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • 8-Edge Cost Economy: Double-sided square negative design provides 8 precision cutting edges, drastically reducing the tool cost per workpiece.
  • MM Performance Geometry: Engineered to balance cutting resistance and edge toughness specifically for large feed per tooth (fz) roughing conditions.
  • 45° Lead Angle Stability: Optimized for stable 45-degree face milling and aggressive pocket roughing, suppressing axial vibration.
  • Machine Versatility: High performance even on CNC machines with general rigidity, ensuring a broad application range in steel and cast iron.
  • RM8-X Optimized: Precision fit for RM8-X series cutter bodies for maximum process security and high metal removal rates.

Specifications (mm)

Model I.C (Size) Thickness (S) Radius (Re) Hole (d1) Lead Angle Edges
SNMX1206ANN-MM 12.70 mm 6.35 mm 0.8 mm 5.20 mm 45° 8 (Double-sided)

Ultimate Cost-Efficiency for Face Roughing

ZANHO SNMX series ensures maximum productivity with minimal tool inventory. Contact us for bulk B2B pricing and matching RM8-X holders.
