SNMX1306-M

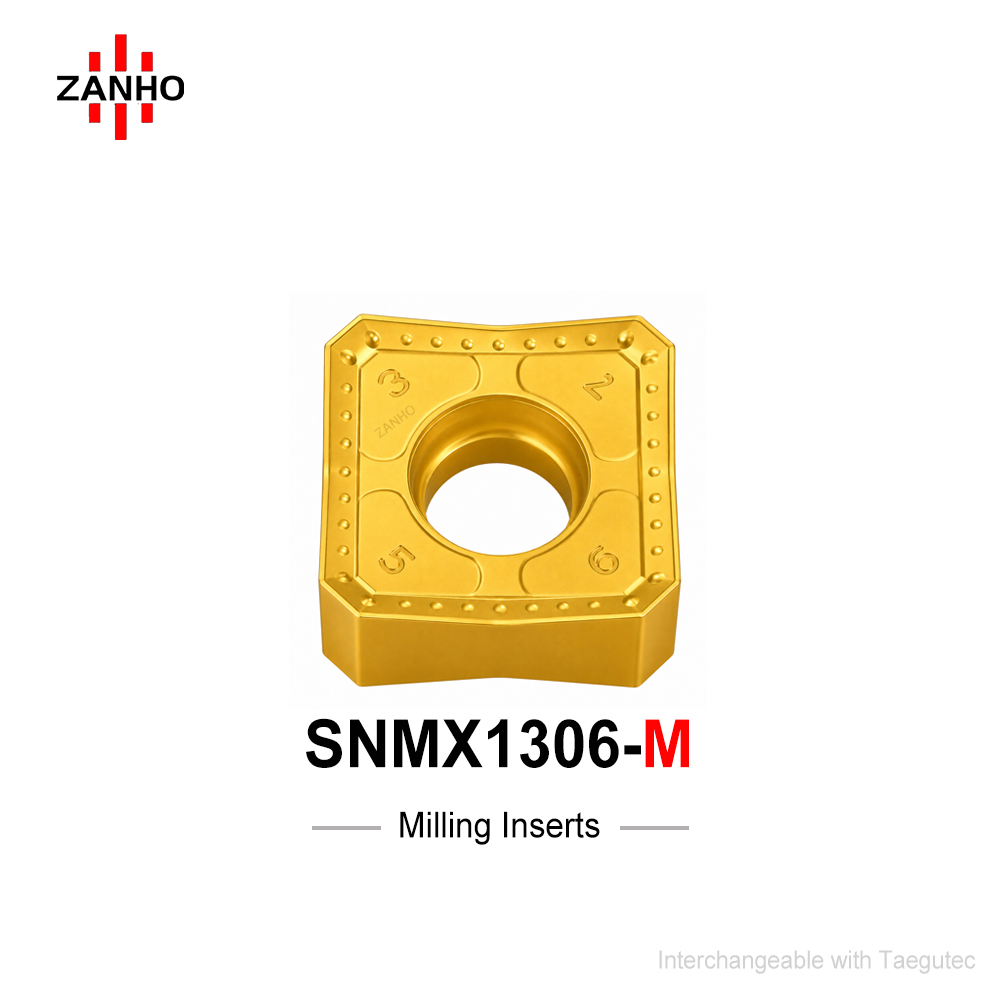

ZANHO SNMX 1306ANTN-M is a high-efficiency 45° face milling insert featuring a double-sided 8-edge structure. Designed for maximum economic value, it balances edge strength with light-cutting action at a 6mm max depth of cut. Equipped with integrated wiper geometry, it ensures superior surface quality for large-diameter face milling, chamfering, and ramping.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Double-Sided 8-Edge Economy: Square double-sided design providing 8 precision-ground cutting corners, significantly increasing tool utilization and lowering the total cost-per-edge.
  • Balanced M-Chipbreaker: Reconciles edge toughness with cutting sharpness, allowing for stable performance even under varied machining conditions and light fluctuations.
  • High Volume Removal (Max 6mm Ap): Optimized 45° lead angle supports aggressive metal removal rates with a maximum axial depth of cut up to 6mm.
  • Integrated Wiper Performance: Specialized wiper geometry delivers superior floor flatness and high-quality finishing results during face milling operations.
  • Stable Large Diameter Machining: Specifically engineered to maintain stability and suppress vibrations in large-diameter face milling and ramping tasks.

Insert Dimensional Specifications (mm)

Model L (Length) I.C (Inscribed) R (Radius) S (Thickness) t (Total H) d (Hole Dia) W (Width) Edges
SNMX 1306ANTN-M 13.5 13.5 0.4 6.8 6.05 5.4 16.89 8

Universal Face Milling Stability

ZANHO SNMX series delivers exceptional process reliability for mass production. Contact us for bulk B2B inquiry and technical material grade selections.
