SNMX1306ZN-ML

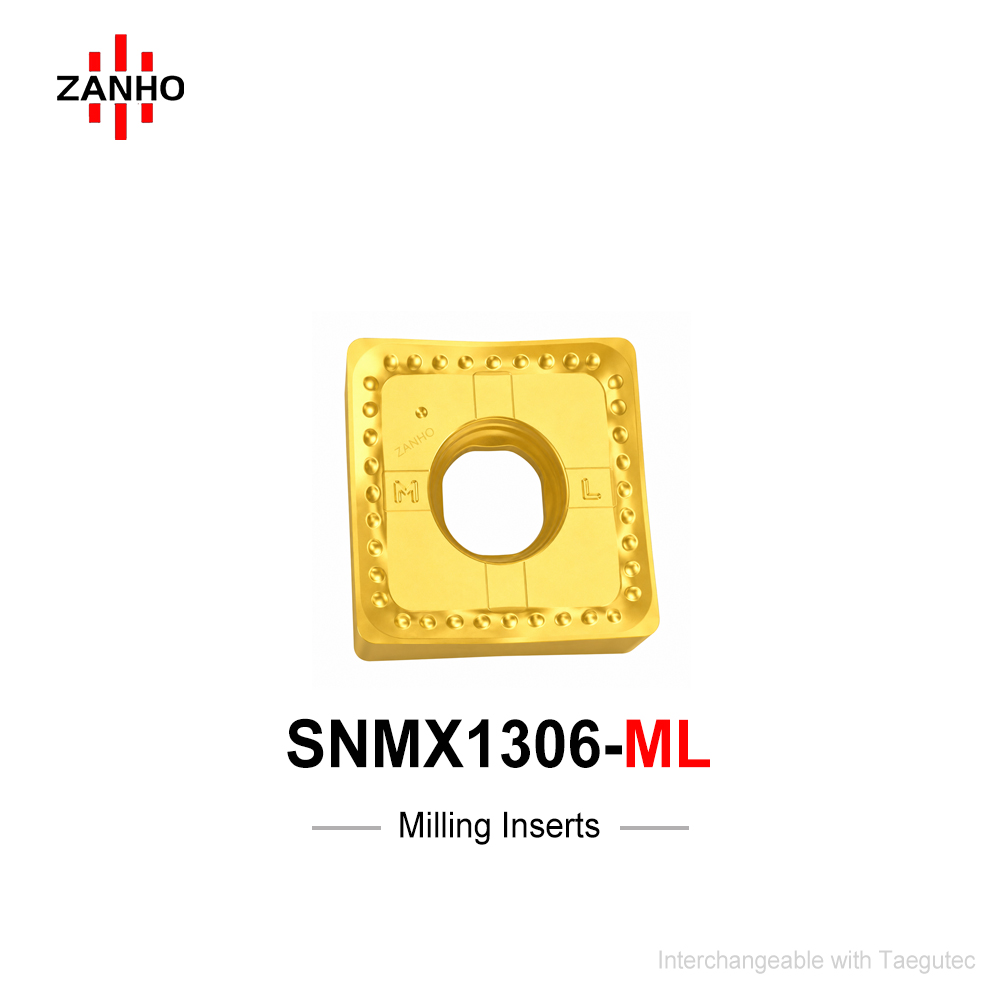

ZANHO SNMX 1306ZN-ML is a high-precision 88° lead angle face milling insert featuring a double-sided 8-edge structure. The specialized ML chipbreaker is designed for light-to-medium loads, significantly reducing cutting resistance and vibration. Optimized for semi-finishing and continuous cutting, it ensures superior surface quality and maximum economic efficiency for Steel and Iron machining.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Double-Sided 8-Edge Economy: Provides eight precision-ground cutting corners per insert, doubling the tool life compared to single-sided alternatives and significantly lowering tool cost-per-edge.
  • 88° Lead Angle Geometry: Specifically engineered for 88-degree face milling and near-vertical shoulder machining, balancing radial and axial forces for high stability.
  • Light-Load ML Chipbreaker: Optimized for light-to-medium machining, reducing cutting resistance and spindle torque, making it ideal for standard machines and long overhang tools.
  • Superior Vibration Control: Advanced edge geometry suppresses harmonic vibrations, ensuring a stable cutting process and high-quality surface integrity.
  • Consistent Chip Evacuation: Optimized curved chip pocket guides chips smoothly away from the cutting zone, preventing workpiece scratching and heat buildup.

Insert Dimensional Specifications (mm)

Model L (Length) I.C (Inscribed) R (Radius) S (Thickness) t (Total H) d (Hole Dia) Edges
SNMX 1306ZN-ML 13.5 13.5 0.8 7.05 6.13 5.4 8

Universal Solutions for High Surface Quality

ZANHO SNMX-ML series provides the stability and efficiency required for precision semi-finishing. Contact us for bulk B2B inquiry and material grade recommendations.
