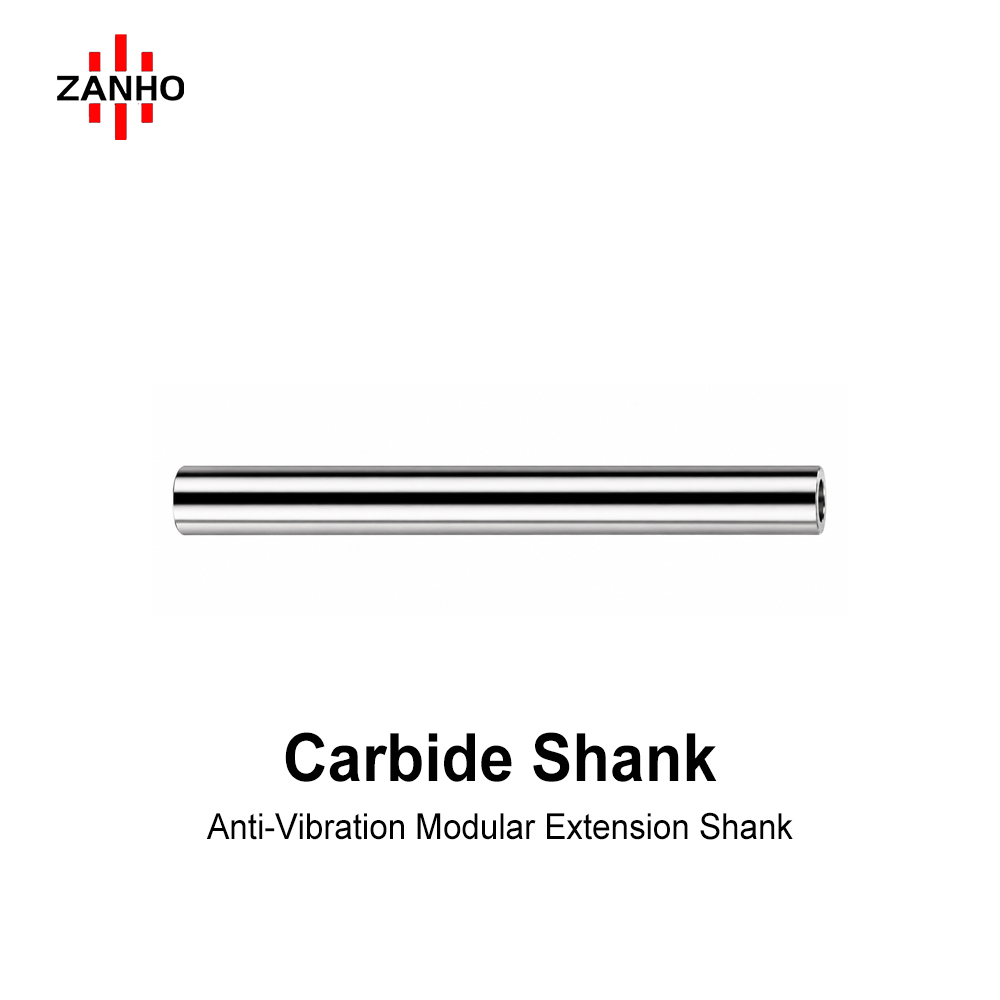

Solid Carbide Anti-vibration Modular Extension

ZANHO Solid Carbide Anti-vibration Modular Extension: A premium solution for deep cavity and long-reach machining. Crafted from YG11H alloy, this extension provides unmatched rigidity and vibration suppression compared to steel holders. With 0.003mm runout precision, modular interchangeability, and internal coolant support, it ensures superior surface finish and significantly reduced tooling costs.

Categories: Carbide Tool Shanks

Download PDF

Technical Features

Superior Vibration Dampening: High elastic modulus of YG11H carbide minimizes chatter and improves surface quality.
Extremely High Precision: Dual-location system (Thread + Face) ensures runout within 0.003mm.
Internal Coolant System: Through-hole design for direct cooling and efficient chip evacuation in deep cavities.
Cost-Effective Modular Design: Rapidly interchangeable with various modular heads (Square Shoulder, Ball Nose, etc.).
High Rigidity & TRS: Hardness ≥ 86 HRA and Transverse Rupture Strength ≥ 3500 MPa for stable machining.

YG11H Material Specifications

Alloy Grade	WC (%)	Co (%)	Ni (%)	Density	Hardness	TRS (MPa)
YG11H	80.5%	12%	7%	≥ 12.5 g/cm³	≥ 86 HRA	≥ 3500

Extension Rod Dimensions (mm)

Code	D (mm)	Thread (M)	Length (L)
8M4-100	8	M4	100
10M5-80	10	M5	80
10M5-100	10	M5	100
10M5-150	10	M5	150
12M6-100	12	M6	100
12M6-150	12	M6	150
12M6-200	12	M6	200
15M8-100	15	M8	100
15M8-150	15	M8	150
15M8-200	15	M8	200
15M8-250	15	M8	250
15.6M8-100	15.6	M8	100
15.6M8-150	15.6	M8	150
15.6M8-200	15.6	M8	200
15.6M8-250	15.6	M8	250
16M8-100	16	M8	100
16M8-150	16	M8	150
16M8-200	16	M8	200
16M8-250	16	M8	250
16M8-300	16	M8	300
19M10-100	19	M10	100
19M10-150	19	M10	150
19M10-200	19	M10	200
19M10-250	19	M10	250
19M10-300	19	M10	300
20M10-100	20	M10	100
20M10-150	20	M10	150
20M10-200	20	M10	200
20M10-250	20	M10	250
20M10-300	20	M10	300
24M12-100	24	M12	100
24M12-150	24	M12	150
24M12-200	24	M12	200
24M12-250	24	M12	250
24M12-300	24	M12	300
24M12-350	24	M12	350
25M12-100	25	M12	100
25M12-150	25	M12	150
25M12-200	25	M12	200
25M12-250	25	M12	250
25M12-300	25	M12	300
25M12-350	25	M12	350
30M16-150	30	M16	150
30M16-200	30	M16	200
30M16-250	30	M16	250
30M16-300	30	M16	300
30M16-350	30	M16	350
32M16-150	32	M16	150
32M16-200	32	M16	200
32M16-250	32	M16	250
32M16-300	32	M16	300
32M16-350	32	M16	350
32M16-400	32	M16	400
