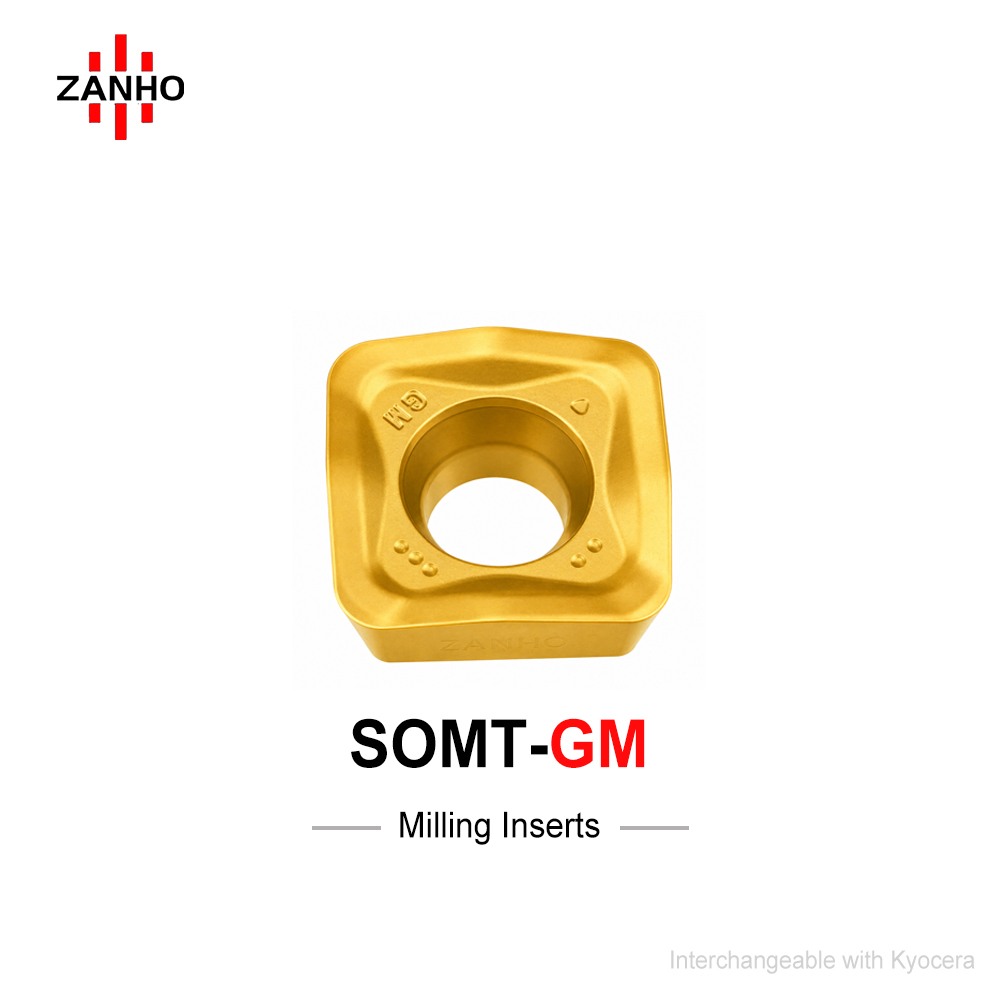

SOMT-GM

ZANHO SOMT-GM series is a specialized high-feed milling solution compatible with MFH cutters. Designed for universal roughing in Steel, Stainless Steel, Cast Iron, and High-Temp Alloys, these inserts feature a low-resistance GM chipbreaker that minimizes spindle load. This makes them ideal for low-power machines and long-overhang setups. With 4 economic cutting edges and optimized chip pockets, the SOMT-GM delivers stable chip evacuation and high productivity in face milling, pocketing, plunging, and helical interpolation.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Universal High-Feed Performance: Specifically developed for high-feed roughing in Steel, Stainless Steel, Cast Iron, and Super Alloys, matching MFH series requirements.
  • Low-Resistance GM Geometry: Reduces cutting load and vibrations, ensuring stable performance even on standard rigidity machines and large overhang tools.
  • Multi-Process Versatility: Fully supports diverse milling operations including face milling, pocket milling, plunging, and helical interpolation for complex cavities.
  • Optimized Edge Strength: Balances sharpness and edge toughness to excel in both continuous and light-interrupted roughing conditions.
  • High-Utilization 4-Edge Design: Offers four usable cutting corners per insert, providing significant cost savings and stable chip fragmenting at high feed rates.

Dimensional Specifications (mm)

Model I.C (mm) S (Thickness) RE (Radius) D1 (Hole Dia) Compatible Tool
SOMT100420ER-GM 10.0 4.0 2.0 4.4 MFH Series
SOMT140520ER-GM 14.0 5.0 2.0 5.6 MFH Series

Maximize Your Machining Efficiency

ZANHO SOMT-GM inserts provide high-feed roughing performance you can rely on. Contact us for technical grade support and bulk B2B inquiry.
