SOMT-LD

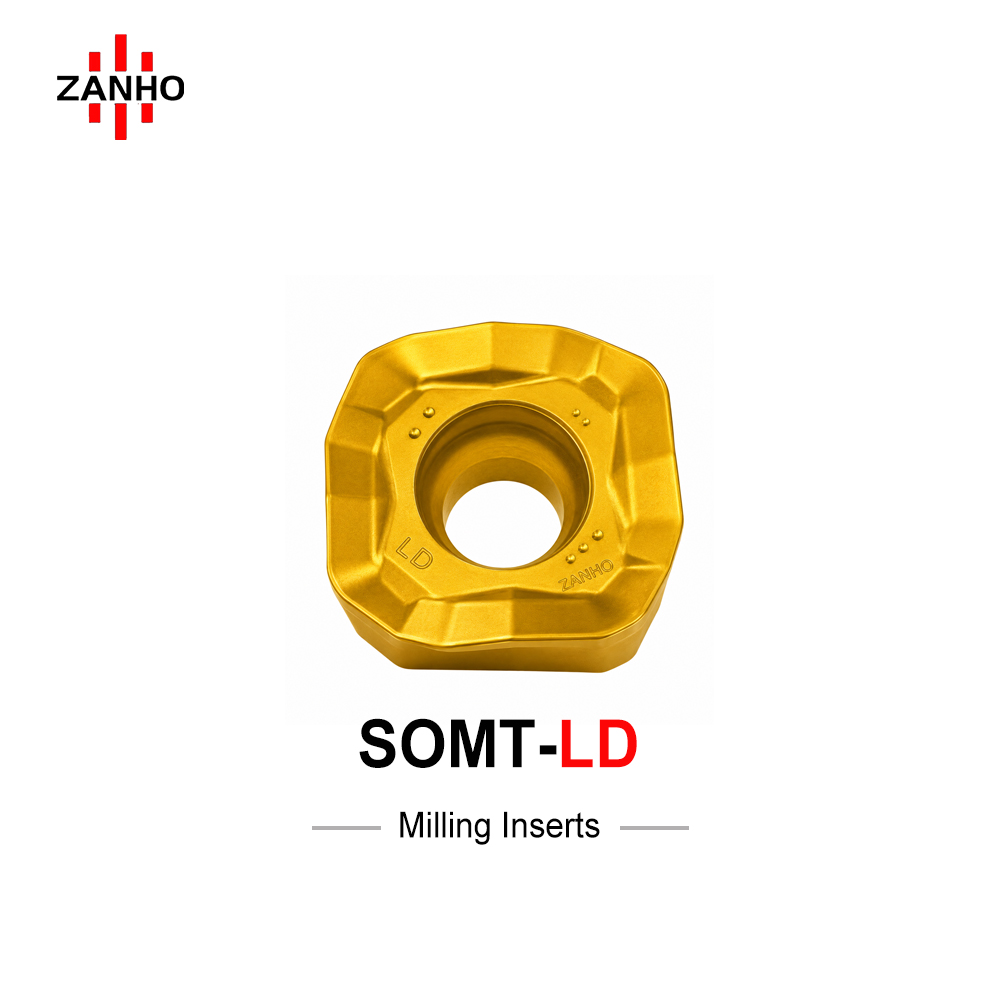

ZANHO SOMT140520ER-LD is a precision high-feed milling insert specifically optimized for Stainless Steel and High-Temperature Alloys. Compatible with MFH series cutters, it features a sharp, low-resistance LD chipbreaker designed to suppress vibration and significantly reduce cutting forces. Perfect for continuous and light-interrupted face milling roughing, its optimized chip control ensures stable evacuation in gummy materials, offering a cost-effective 4-edge solution for difficult-to-machine components.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Specialized for Gummy Materials: Engineered specifically for high-feed roughing of Stainless Steel and HRSA (Heat Resistant Super Alloys) where chip control is critical.
  • Ultra-Sharp LD Chipbreaker: Features a low-resistance cutting edge that drastically reduces spindle torque and axial forces, ideal for maintaining stability on machines with limited rigidity.
  • Vibration Suppression: The precision-ground geometry is designed to prevent chatter and harmonic vibration during deep high-feed passes.
  • Superior Chip Fragmentation: Optimized chip-breaking pockets ensure smooth evacuation even with sticky workpieces, preventing tool breakage and overheating.
  • Economic 4-Edge Design: Provides four high-precision cutting edges per insert, delivering excellent cost-per-edge for volume manufacturing in the aerospace and medical sectors.

Dimensional Specifications (mm)

Model I.C (mm) S (Thickness) RE (Radius) D1 (Hole Dia) Application
SOMT140520ER-LD 14.0 5.0 2.0 5.6 Stainless Steel / HRSA

Note: The LD geometry is specifically optimized for Face Milling. It is not recommended for helical interpolation or plunging operations.

Expert Tooling for Difficult Materials

ZANHO SOMT-LD series provides the stability needed for Stainless Steel roughing. Contact us for technical grade support and bulk B2B inquiry.
