SPMG-DG

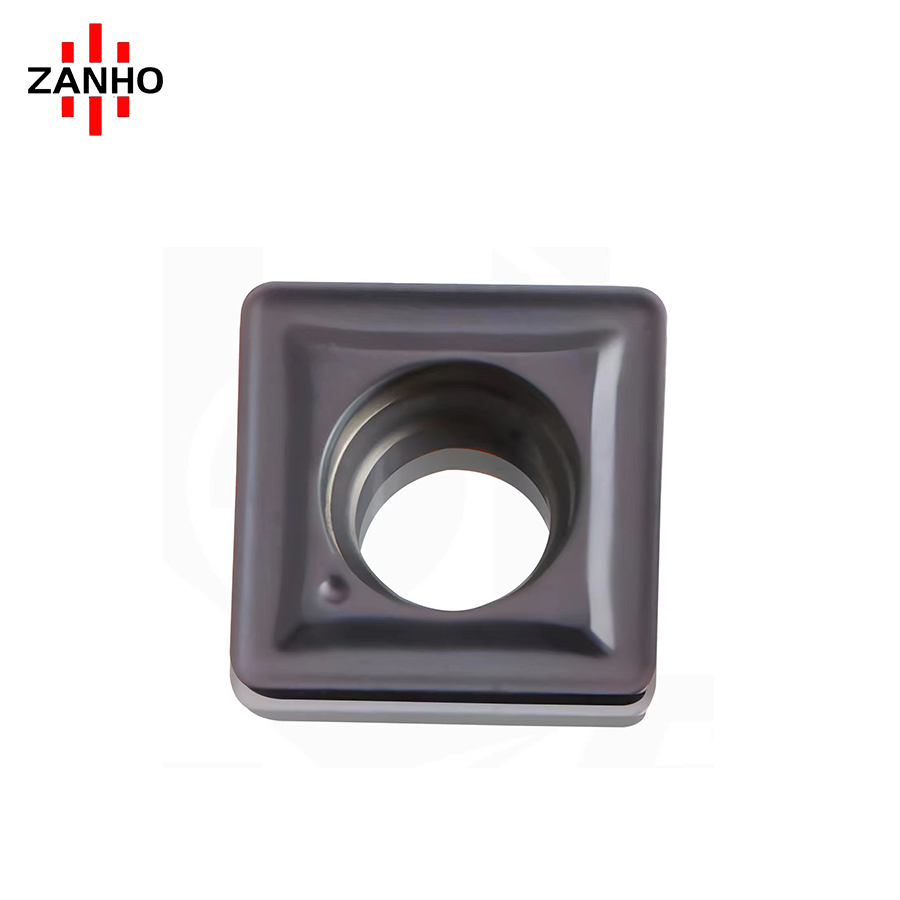

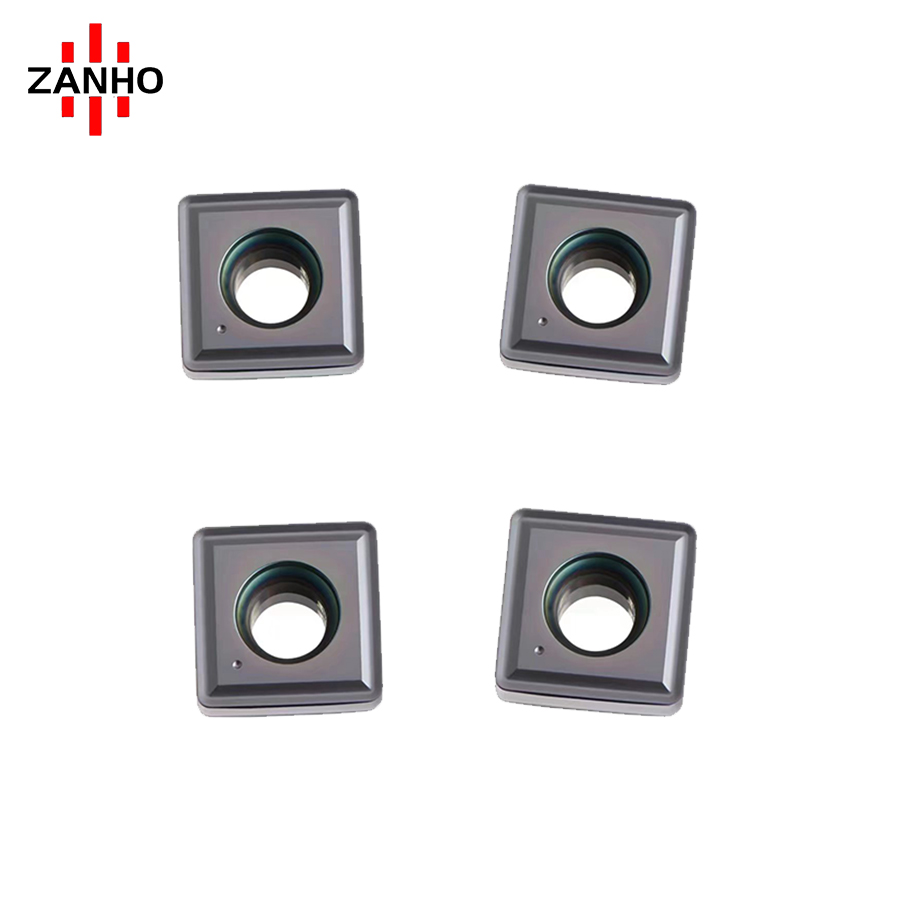

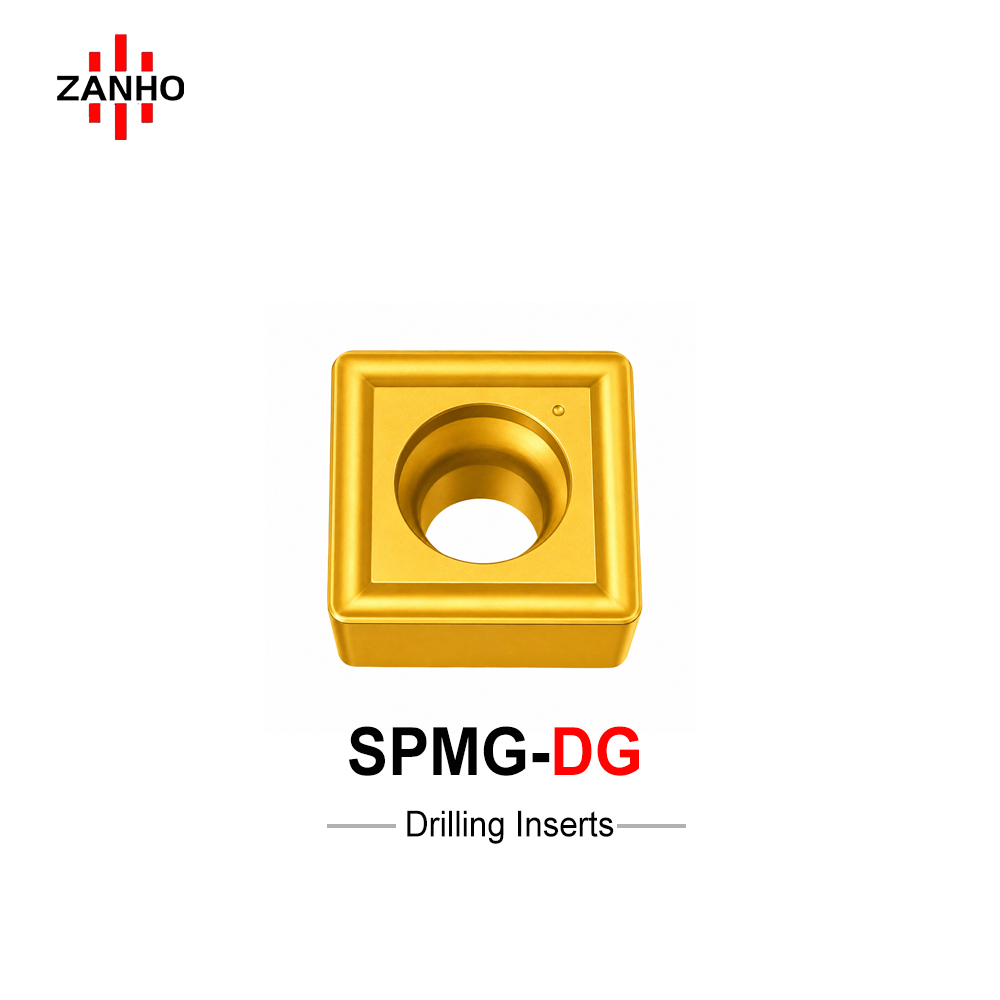

ZANHO SPMG-DG series is a high-performance indexable drill insert specifically designed for difficult drilling operations in sticky materials such as stainless steel, titanium, and high-temperature alloys. Featuring a large positive rake angle and a specialized DG guide cavity, it significantly reduces drilling resistance and ensures stable chip curling and evacuation. With its robust 4-edge square geometry, it delivers exceptional cost-efficiency and reliable edge integrity for conventional shallow-hole CNC drilling.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Sticky Material Specialist: Engineered to solve high cutting resistance and chip evacuation issues in stainless steel, titanium, and nickel-based alloys.
  • Large Positive Rake Geometry: Reduces drilling load and suppresses work hardening, ensuring stable performance even on lower-rigidity machines.
  • DG Chipbreaker Technology: Specialized flow guide cavity fragments wide chips into short segments, preventing clogging in the drill body flutes.
  • Reinforced Edge Strength: Controlled negative land on the cutting edge balances sharpness with impact resistance, protecting the tip during U-drill entry.
  • Universal Material Application: Highly versatile across Carbon Steel (P), Stainless Steel (M), and Cast Iron (K), optimizing tool management.

Dimensional Specifications

Model D (mm) d1 (mm) S (mm) R (mm)
SPMG 04T102-DG 3.97 1.97 1.85 0.2
SPMG 050204-DG 5.00 2.25 2.38 0.4
SPMG 060204-DG 6.00 2.61 2.38 0.4
SPMG 07T308-DG 7.94 2.85 3.97 0.8
SPMG 090408-DG 9.80 4.05 4.30 0.8
SPMG 110408-DG 11.5 4.45 4.80 0.8
SPMG 140512-DG 14.3 5.57 5.2 1.2

Need Custom Drilling Solutions?

ZANHO offers a complete range of indexable drill bodies and specialized coatings. Contact us for bulk B2B inquiry and technical parameter optimization.
