SPMT-CM

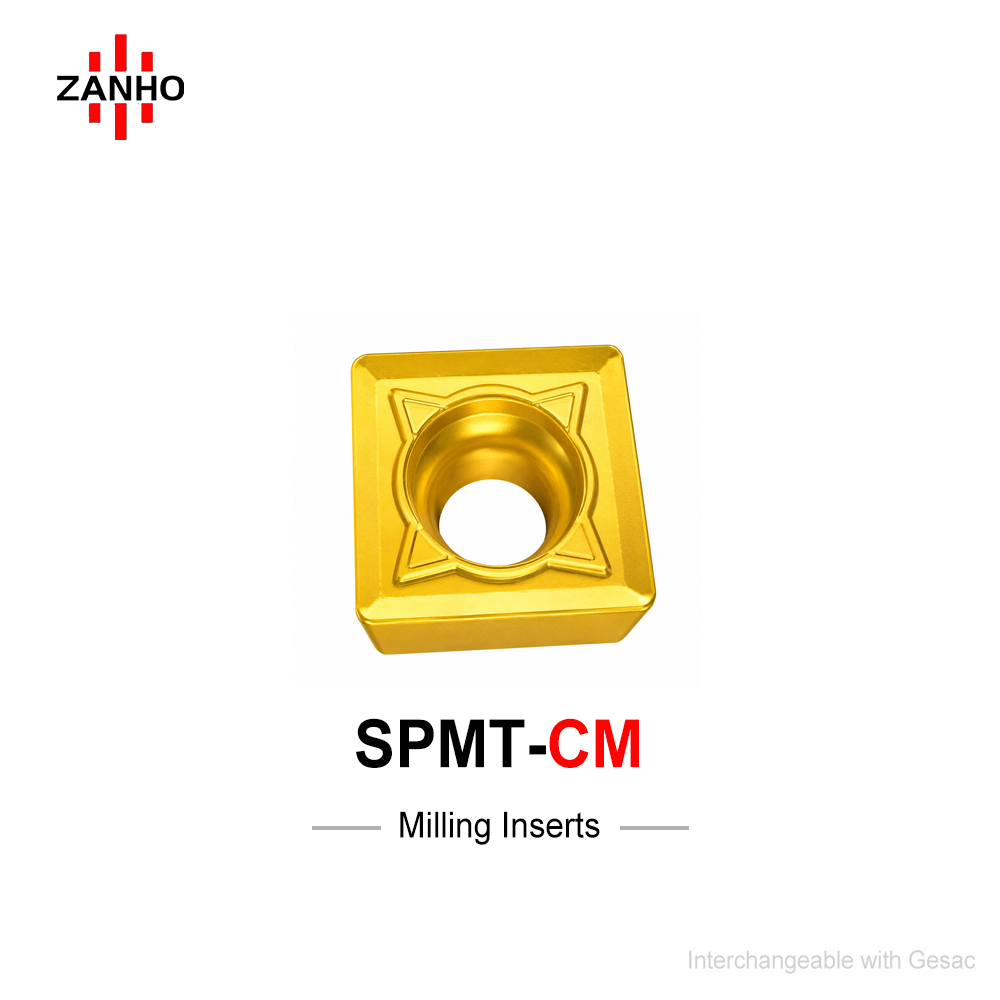

ZANHO SPMT 120408-CM is a high-performance positive 4-edge milling insert. Featuring a large positive rake angle for light and sharp cutting, it is highly versatile for face milling, long-edge (corn) milling, and side-and-face milling. Engineered for reduced power consumption and exceptional process stability across diverse materials.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • Large Positive Rake: Sharp geometry reduces cutting force and heat buildup, enabling a "light cutting" action that protects the machine spindle.
  • Multi-Purpose Versatility: A single insert solution for face milling, long-edge (corn) milling, and 3-side/slot milling operations.
  • Positive 4-Edge Design: Combines the free-cutting performance of positive inserts with the economic value of 4 precision cutting edges.
  • Stable Chip Evacuation: Optimized -CM chipbreaker ensures smooth chip flow even in deep slotting and high-feed roughing.
  • High Process Security: Robust substrate provides excellent impact resistance for interrupted cutting in various steel and alloy applications.

Specifications (mm)

Model Length (L) I.C (Ø) Thickness (S) Hole (Ød) Radius (R)
SPMT 120408-CM 12.7 12.7 4.76 5.5 0.8

Versatile Performance for Complex Milling

ZANHO SPMT series delivers sharp, reliable cutting for high-productivity machining. Contact us for bulk B2B pricing and material support.
