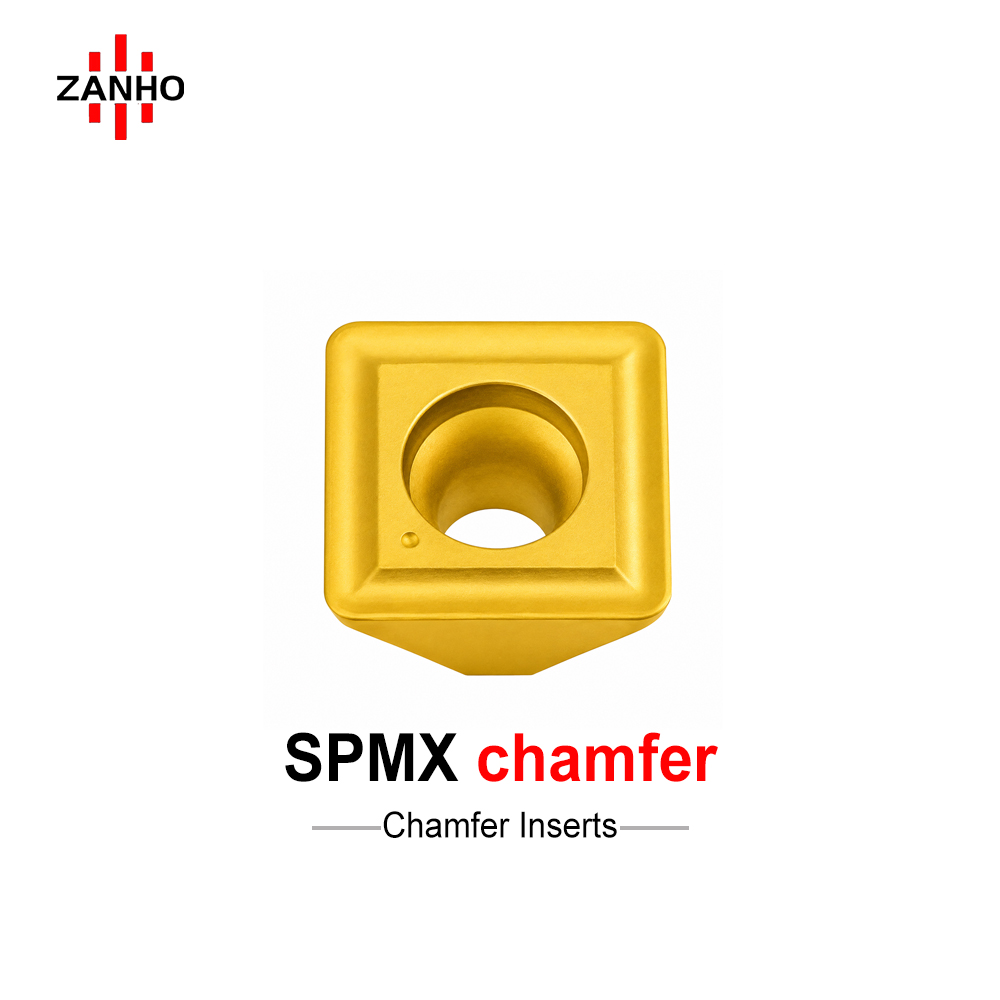

SPMX chamfering

ZANHO SPMX series: Single-sided square 4-edge insert with a pre-formed 45° angle for precision chamfering and deburring. Eliminates the need for complex programming by delivering an instant C-angle in one pass. Optimized for hole edges, outer contours, and spot chamfering in steel, stainless steel, and cast iron components.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • 45° Pre-Formed Geometry: Features a built-in 45° cutting angle to produce precise C-chamfers in a single pass, eliminating the need for specialized chamfer programming or grinding.
  • 4-Edge Indexable Economy: Square geometry provides 4 effective cutting edges per insert, significantly reducing tool cost per part compared to traditional chamfer drills.
  • Concave Chip Evacuation: Optimized rake cavity specifically handles short chamfering chips, ensuring they are guided away to prevent workpiece scratching or chip packing.
  • Reinforced Negative Land: Honed cutting edge treatment provides high resistance against chipping and breakdown, even in interrupted deburring of hard materials.
  • Versatile Chamfering: Ideal for outer contours, screw/pin hole C-angles, and spot chamfering on dedicated chamfering machines or CNC centers.

Technical Specifications (mm)

Model Type Length (L) I.C (øI.C) Thickness (S) Hole (D1) Radius (RE)
SPMX050204 5 5 2.38 2.25 0.4
SPMX060204 6 6 2.38 2.61 0.4
SPMX07T308 7 7 3.97 2.85 0.8
SPMX090408 9 9 4.3 4.05 0.8
SPMX110408 11 11 4.8 4.45 0.8
SPMX140512 14 14 5.2 5.75 1.2

Instant 45° Chamfering Performance

ZANHO SPMX series replaces traditional deburring tools with high-speed CNC reliability. Contact us for bulk B2B inquiry and holder compatibility.

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
