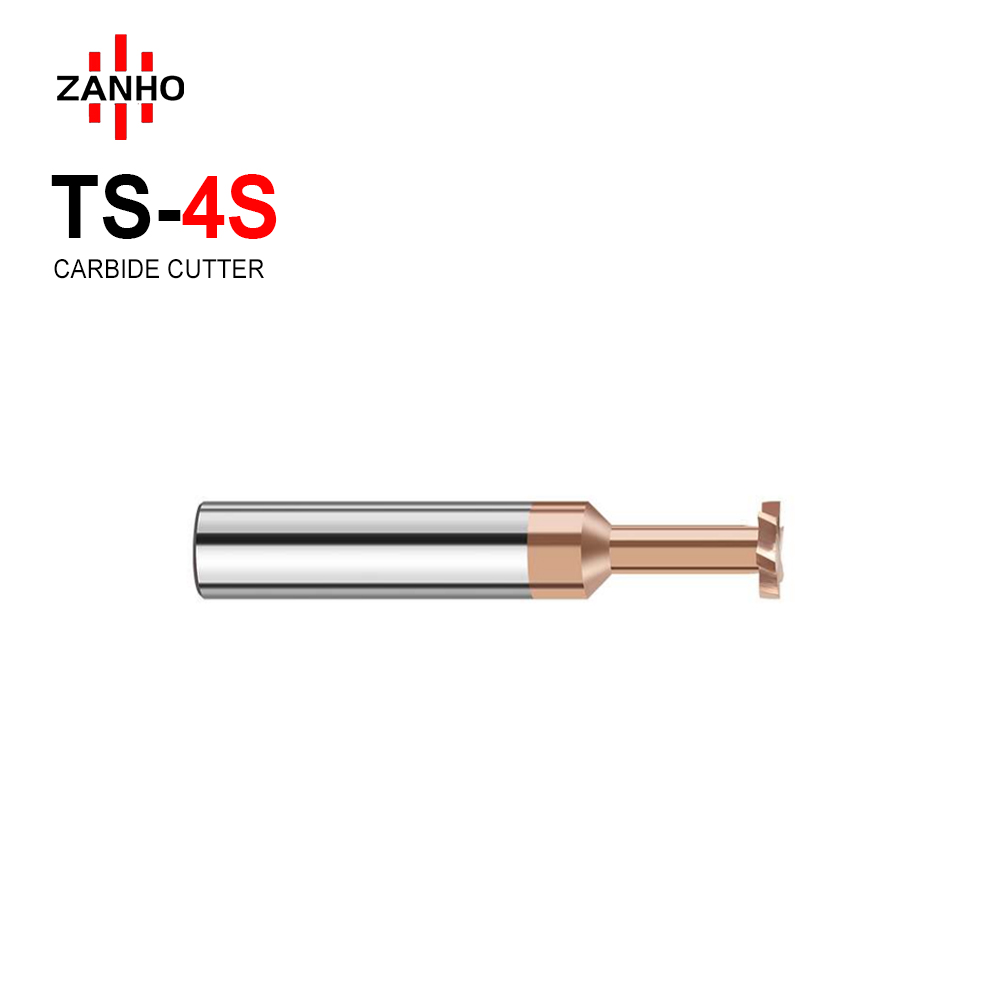

T-Slot Cutter-Steel

  • Steel Slotting Specialist: Specifically engineered for high-precision T-Slotting and Side-Grooving in various steel grades, ensuring accurate profiles and clean edges.
  • Enhanced Tool Rigidity: 4-flute design offers superior tool balance and a much smoother surface finish compared to conventional 2-flute T-slot cutters.
  • Interference-Free Reach: Features a Relieved Neck design with specific clearance lengths to allow for deep-slot work without tool body interference.
  • Massive Spec Selection: Available in diameters D2 to D12 with varied blade thicknesses (L1) to suit specific mechanical slotting requirements.
Categories:
Learn More
Download PDF
Description
  • Steel Slotting Specialist: Specifically engineered for high-precision T-Slotting and Side-Grooving in various steel grades, ensuring accurate profiles and clean edges.
  • Enhanced Tool Rigidity: 4-flute design offers superior tool balance and a much smoother surface finish compared to conventional 2-flute T-slot cutters.
  • Interference-Free Reach: Features a Relieved Neck design with specific clearance lengths to allow for deep-slot work without tool body interference.
  • Massive Spec Selection: Available in diameters D2 to D12 with varied blade thicknesses (L1) to suit specific mechanical slotting requirements.

Order Number Specification D L1 Clearance diameter d1 Clearance length D1 L
TS-4S-02005 D2*0.5H*D4*50L*4F 2 0.5 1 6 4 50
TS-4S-02010 D2*1H*D4*50L*4F 2 1 1 6 4 50
TS-4S-02015 D2*1.5H*D4*50L*4F 2 1.5 1 6 4 50
TS-4S-02020 D2*2H*D4*50L*4F 2 2 1 6 4 50
TS-4S-03005 D3*0.5H*D4*50L*4F 3 0.5 1.5 6 4 50
TS-4S-03010 D3*1H*D4*50L*4F 3 1 1.5 6 4 50
TS-4S-03015 D3*1.5H*D4*50L*4F 3 1.5 1.5 6 4 50
TS-4S-03020 D3*2H*D4*50L*4F 3 2 1.5 6 4 50
TS-4S-03025 D3*2.5H*D4*50L*4F 3 2.5 1.5 6 4 50
TS-4S-03030 D3*3H*D4*50L*4F 3 3 1.5 6 4 50
TS-4S-04005 D4*0.5H*D4*50L*4F 4 0.5 1.5 6 4 50
TS-4S-04010 D4*1H*D4*50L*4F 4 1 1.5 6 4 50
TS-4S-04015 D4*1.5H*D4*50L*4F 4 1.5 1.5 6 4 50
TS-4S-04020 D4*2H*D4*50L*4F 4 2 1.5 6 4 50
TS-4S-04025 D4*2.5H*D4*50L*4F 4 2.5 1.5 6 4 50
TS-4S-04030 D4*3H*D4*50L*4F 4 3 1.5 6 4 50
TS-4S-06005 D6*0.5H*D6*50L*4F 6 0.5 2.5 10 6 50
TS-4S-06010 D6*1H*D6*50L*4F 6 1 2.5 10 6 50
TS-4S-06015 D6*1.5H*D6*50L*4F 6 1.5 2.5 10 6 50
TS-4S-06020 D6*2H*D6*50L*4F 6 2 2.5 10 6 50
TS-4S-06025 D6*2.5H*D6*50L*4F 6 2.5 2.5 10 6 50
TS-4S-06030 D6*3H*D6*50L*4F 6 3 2.5 10 6 50
TS-4S-06040 D6*4H*D6*50L*4F 6 4 2.5 10 6 50
TS-4S-08005 D8*0.5H*D8*60L*4F 8 0.5 3.5 12 8 60
TS-4S-08010 D8*1H*D8*60L*4F 8 1 3.5 12 8 60
TS-4S-08015 D8*1.5H*D8*60L*4F 8 1.5 3.5 12 8 60
TS-4S-08020 D8*2H*D8*60L*4F 8 2 3.5 12 8 60
TS-4S-08025 D8*2.5H*D8*60L*4F 8 2.5 3.5 12 8 60
TS-4S-08030 D8*3H*D8*60L*4F 8 3 3.5 12 8 60
TS-4S-08040 D8*4H*D8*60L*4F 8 4 3.5 12 8 60
TS-4S-10005 D10*0.5H*D10*60L*4F 10 0.5 4 15 10 60
TS-4S-10010 D10*1H*D10*60L*4F 10 1 4 15 10 60
TS-4S-10015 D10*1.5H*D10*60L*4F 10 1.5 4 15 10 60
TS-4S-10020 D10*2H*D10*60L*4F 10 2 4 15 10 60
TS-4S-10025 D10*2.5H*D10*60L*4F 10 2.5 4 15 10 60
TS-4S-10030 D10*3H*D10*60L*4F 10 3 4 15 10 60
TS-4S-10040 D10*4H*D10*60L*4F 10 4 4 15 10 60
TS-4S-10050 D10*5H*D10*60L*4F 10 5 4 15 10 60
TS-4S-12005 D12*0.5H*D12*60L*4F 12 0.5 5 15 12 60
TS-4S-12010 D12*1H*D12*60L*4F 12 1 5 15 12 60
TS-4S-12015 D12*1.5H*D12*60L*4F 12 1.5 5 15 12 60
TS-4S-12020 D12*2H*D12*60L*4F 12 2 5 15 12 60
TS-4S-12025 D12*2.5H*D12*60L*4F 12 2.5 5 15 12 60
TS-4S-12030 D12*3H*D12*60L*4F 12 3 5 15 12 60
TS-4S-12040 D12*4H*D12*60L*4F 12 4 5 15 12 60
TS-4S-12050 D12*5H*D12*60L*4F 12 5 5 15 12 60
