T490-LNHT130612PNTR

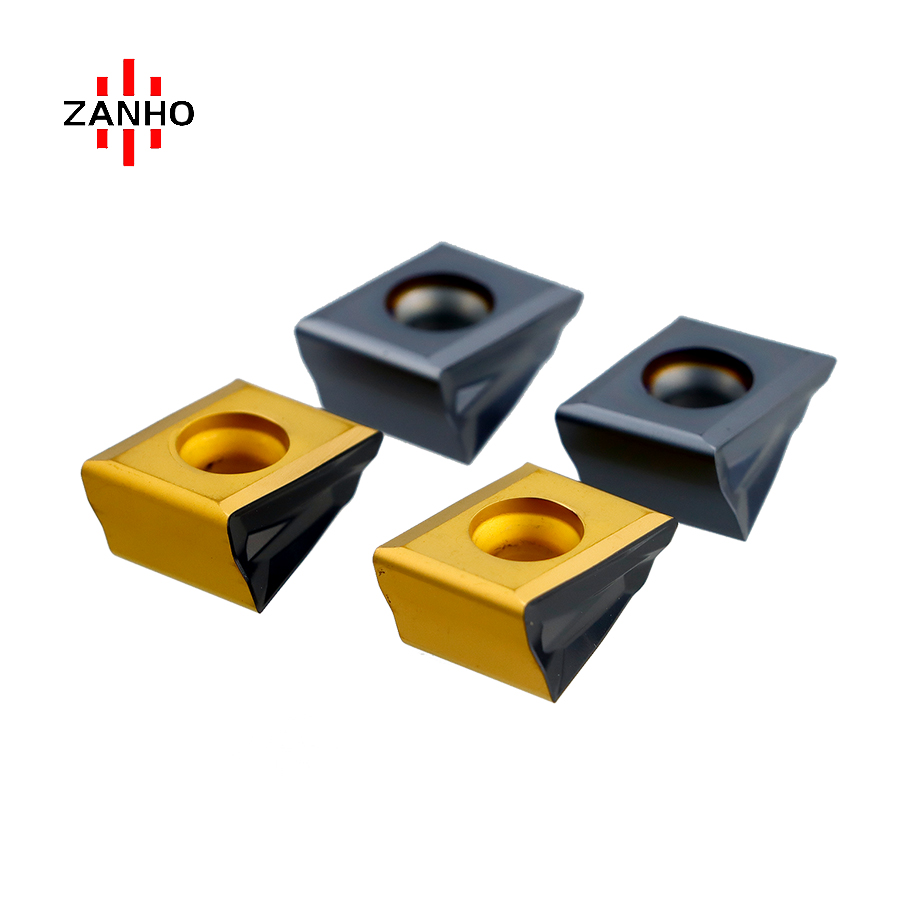

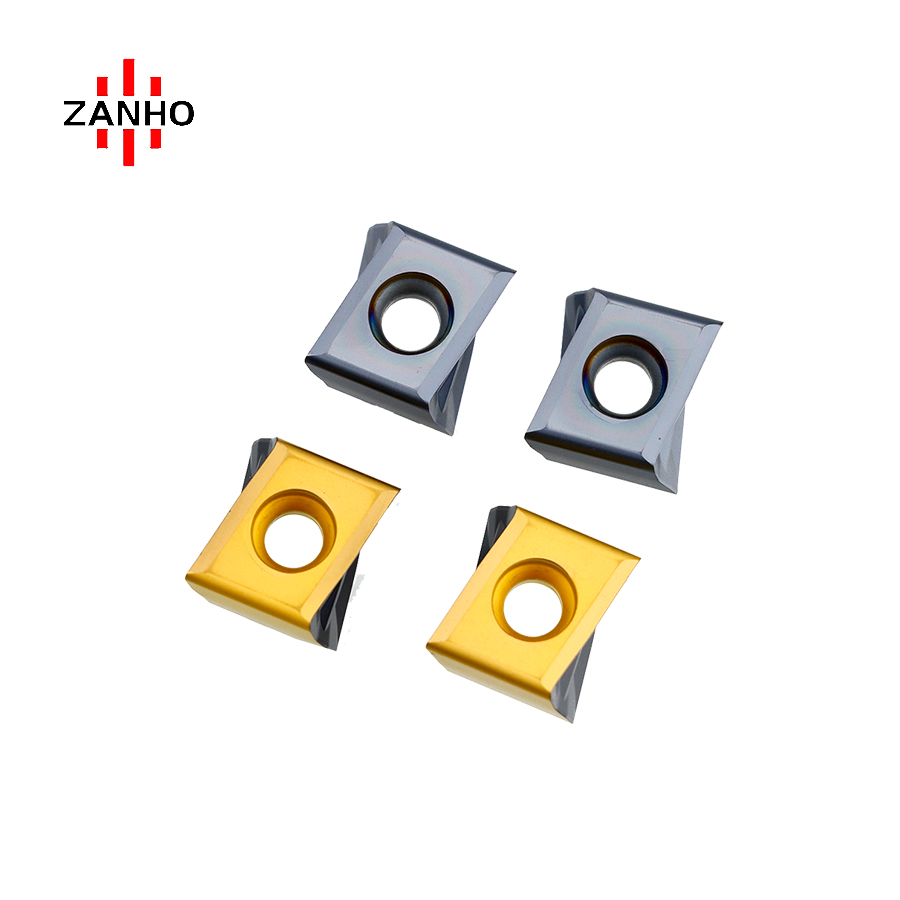

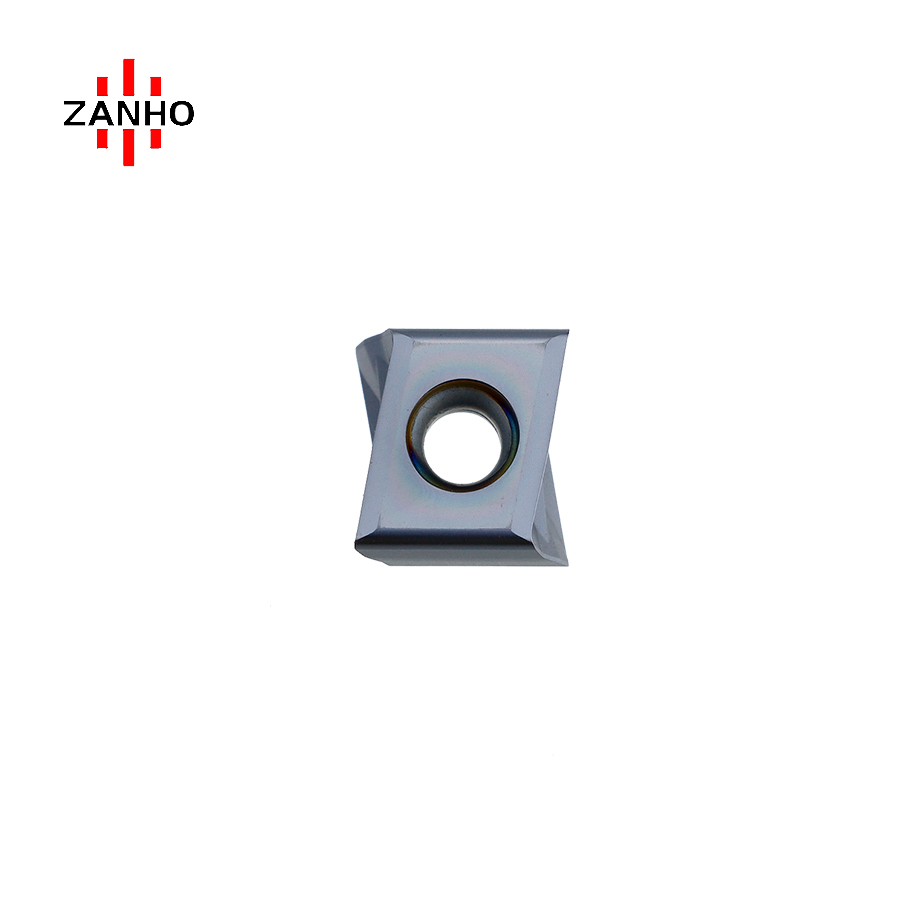

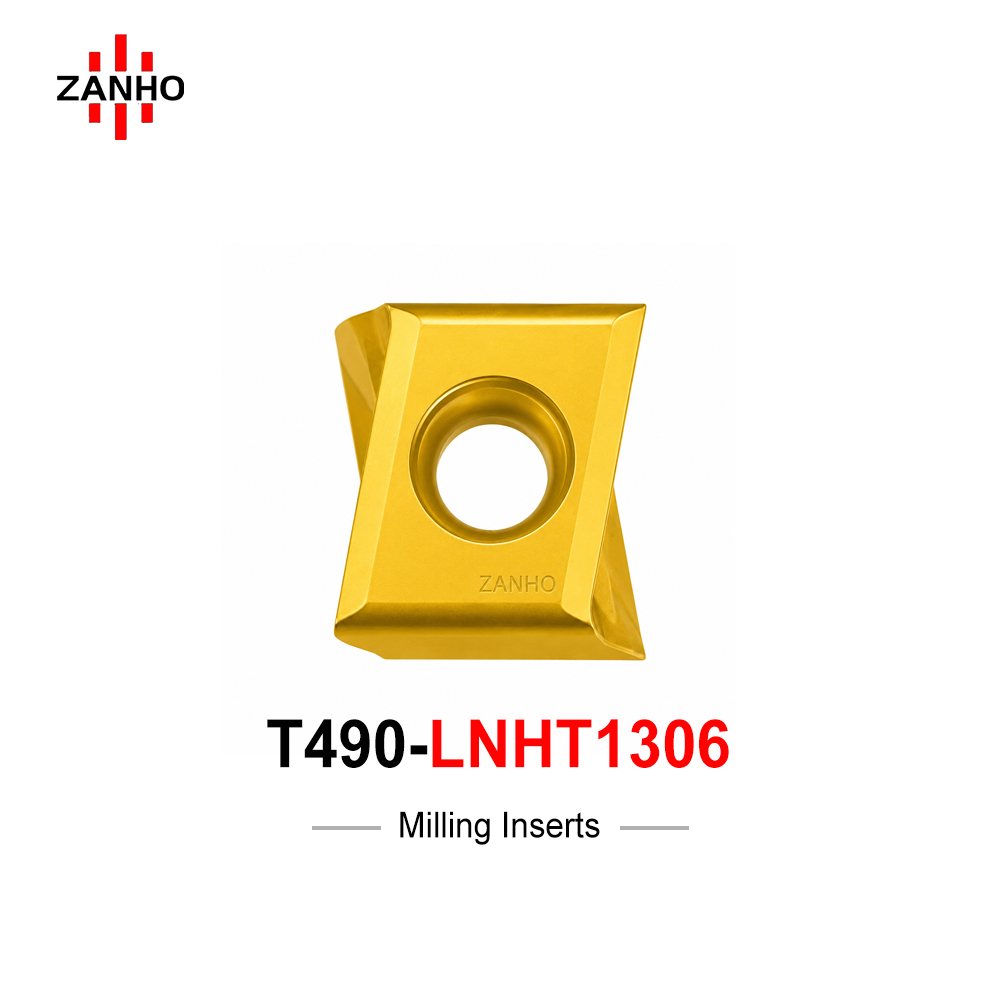

ZANHO T490-LNHT130612PNTR is a heavy-duty milling insert engineered for large-depth roughing and semi-finishing. Featuring a massive 11.00mm max depth of cut (APMX) and an 88° lead angle, it excels in face milling castings, forgings, and alloy steels. Equipped with an integrated 2.20mm wiper edge (BS), it delivers exceptional surface quality even in aggressive roughing conditions.
Categories:
Learn More
Download PDF
Description

Core Performance Features

  • Extreme Roughing Efficiency: Engineered for massive metal removal with an 11mm maximum axial depth of cut (APMX), ideal for mold bases and engineering components.
  • Superior Surface Finish: Integrated 2.20mm large wiper edge (BS) enables semi-finishing quality directly after roughing, significantly reducing secondary process time.
  • 88° Optimized Geometry: Designed for face milling and shallow shoulder work, providing high stability and reduced interference in side-wall machining.
  • Interrupted Cut Resilience: Robust substrate and reinforced edges handle oxide layers, casting crusts, and heavy interrupted cuts with exceptional reliability.
  • Broad Material Coverage: Versatile performance across carbon steel, alloy steel, die steel, and cast iron; also compatible with general stainless steel milling.

Technical Specifications (mm)

Model I.C (IC) Thickness (S) Hole (d) Radius (Re) Wiper (BS) Max APMX
T490-LNHT130612PNTR 13.00 mm 6.00 mm 5.20 mm 1.20 mm 2.20 mm 11.00 mm

Power and Precision for Heavy Engineering

ZANHO T490 series is the industrial choice for high-volume metal removal. Contact us for bulk B2B pricing and tool grade recommendations.
