TCEX16 Chamfer

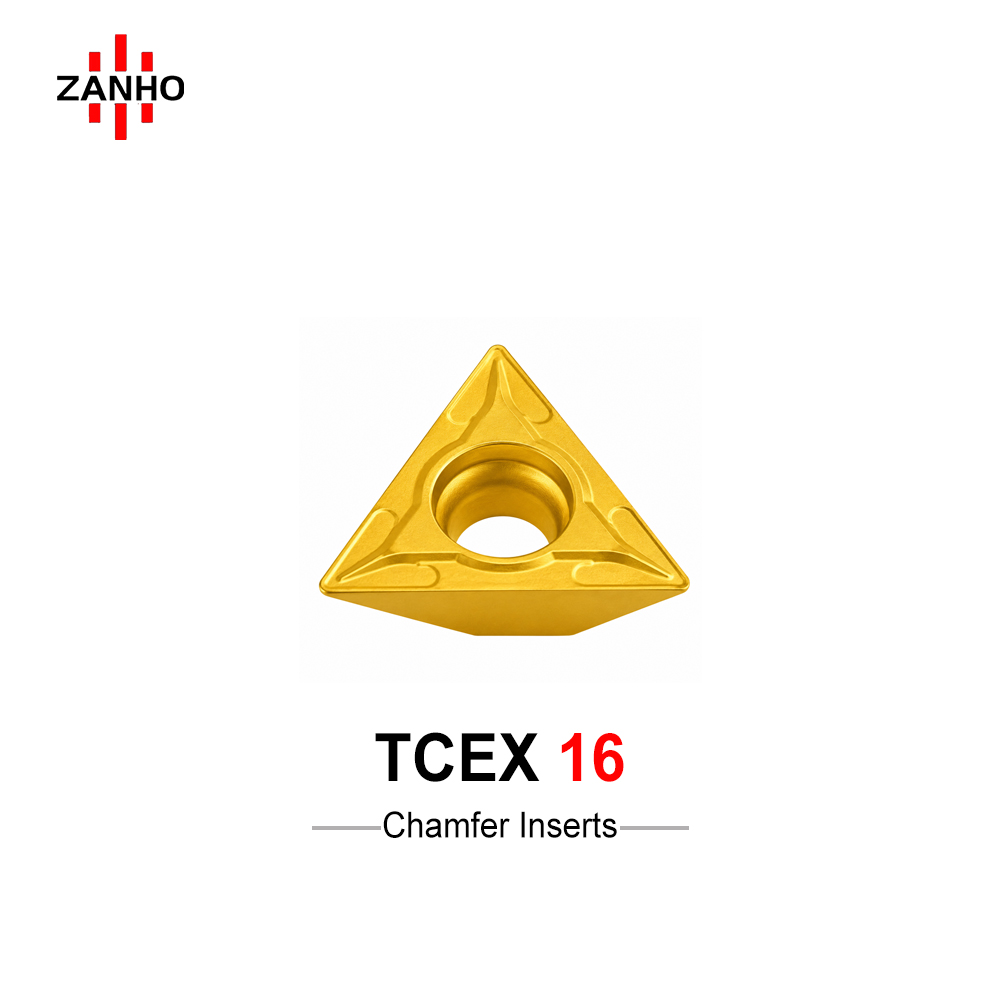

ZANHO TCEX series: Triangular 3-edge indexable insert with pre-formed 45° corners for precision chamfering and deburring. Enables direct C-angle machining without complex programming. Features a specialized concave chipbreaker to prevent surface scratching from short chips. Optimized for light-load finishing of hole edges and outer contours in steel, stainless, and cast iron.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • 45° Pre-Formed Geometry: All three corners feature built-in 45° cutting angles, allowing for instant C-chamfering on CNC milling machines without relying on complex tool path programming.
  • 3-Edge Triangular Economy: Triangular indexable design provides 3 effective cutting edges, significantly increasing insert utilization and lowering the cost per chamfered part.
  • Concave Chip Evacuation: Engineered rake cavity specifically handles the short, abrasive chips produced during chamfering, preventing chip packing and protecting the finished workpiece surface.
  • Reinforced Edge Toughness: Negative land (T-land) treatment on the cutting edge enhances impact resistance, ensuring stable performance in interrupted deburring cycles.
  • Universal Light Deburring: Perfect for hole edges (screw holes, through-holes, countersinks) and outer contours in Steel, Stainless Steel, and Cast Iron.

Technical Specifications (mm)

Model Type Length (L) I.C (IC) Thickness (S) Hole (d) Radius (RE)
TCEX16T304-TF 16.5 9.525 4.76 3.81 0.4
TCEX16T308-TF 16.5 9.525 4.76 3.81 0.8

High-Efficiency Deburring for Precision Holes

ZANHO TCEX series is designed for TPMT-type 45° chamfering tool holders. Contact us for bulk B2B inquiry and holder compatibility.
