TCGT-AK

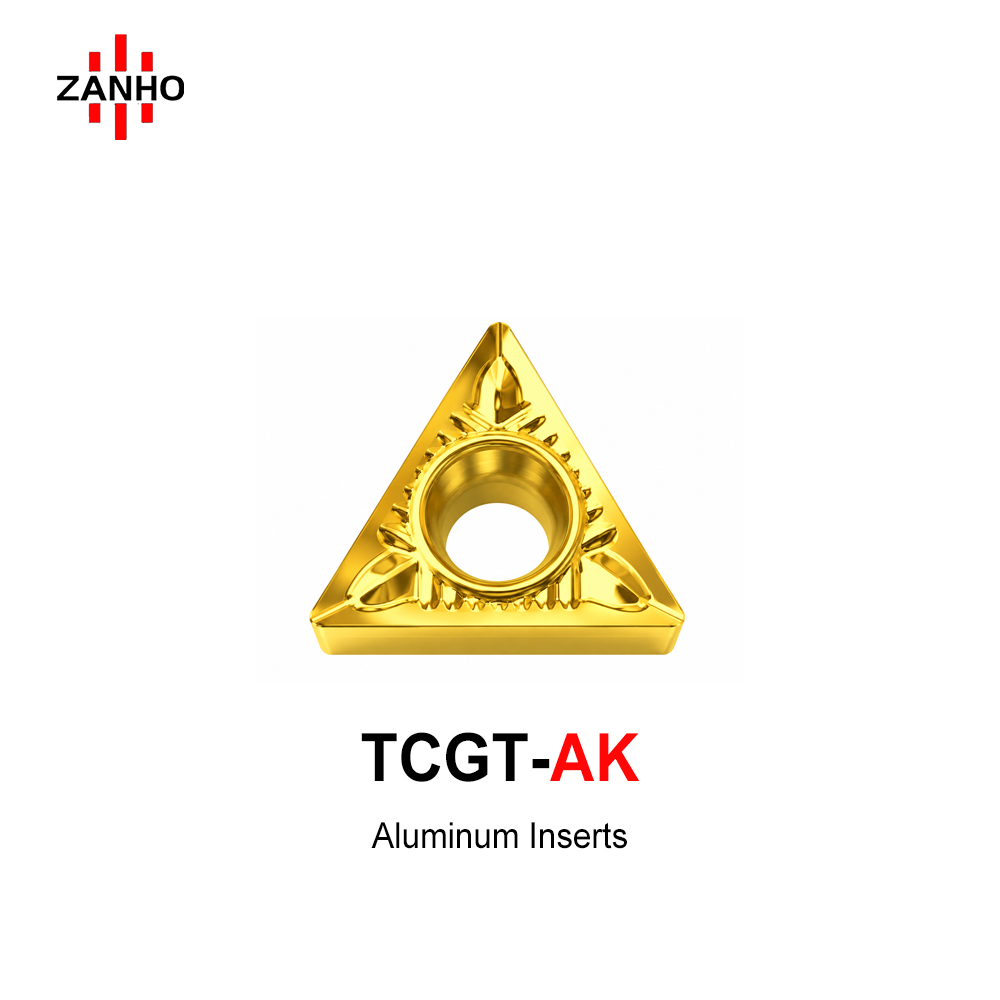

ZANHO TCGT-AK series: High-precision triangular positive inserts specifically engineered for aluminum and non-ferrous metals. Featuring 3 effective cutting edges, these inserts are designed with a large positive rake geometry and a buffed mirror-polished rake face. They effectively minimize cutting resistance and prevent chip adhesion (BUE), making them ideal for high-speed external turning, internal boring, and profiling with exceptional surface brightness.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Mirror-Polished Rake Face: Reduces cutting friction and prevents built-up edge (BUE) and chip welding on the insert surface.
  • Large Positive Rake Geometry: Ensures sharp and light cutting action, significantly reducing power consumption and tool vibration.
  • Segmented Open Chipbreaker: Provides stable and mandatory chip curling for smooth evacuation in both internal and external machining.
  • High Precision Ground: Delivers optical-grade surface smoothness and maintains excellent dimensional stability.
  • 3 Cutting Edges Economy: The triangular geometry offers 3 sharp edges, providing a great balance between performance and cost-per-edge.
  • Versatile Machining: Ideal for external turning, internal boring, face machining, and precision profiling of all non-ferrous workpieces.

TCGT-AK Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
TCGT090202-AK 9.525 2.38 2.8 0.2
TCGT090204-AK 9.525 2.38 2.8 0.4
TCGT090208-AK 9.525 2.38 2.8 0.8
TCGT110202-AK 11.0 2.38 3.2 0.2
TCGT110204-AK 11.0 2.38 3.2 0.4
TCGT110208-AK 11.0 2.38 3.2 0.8
TCGT16T302-AK 16.0 3.97 4.4 0.2
TCGT16T304-AK 16.0 3.97 4.4 0.4
TCGT16T308-AK 16.0 3.97 4.4 0.8

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.
