TDT-RU(TDR)

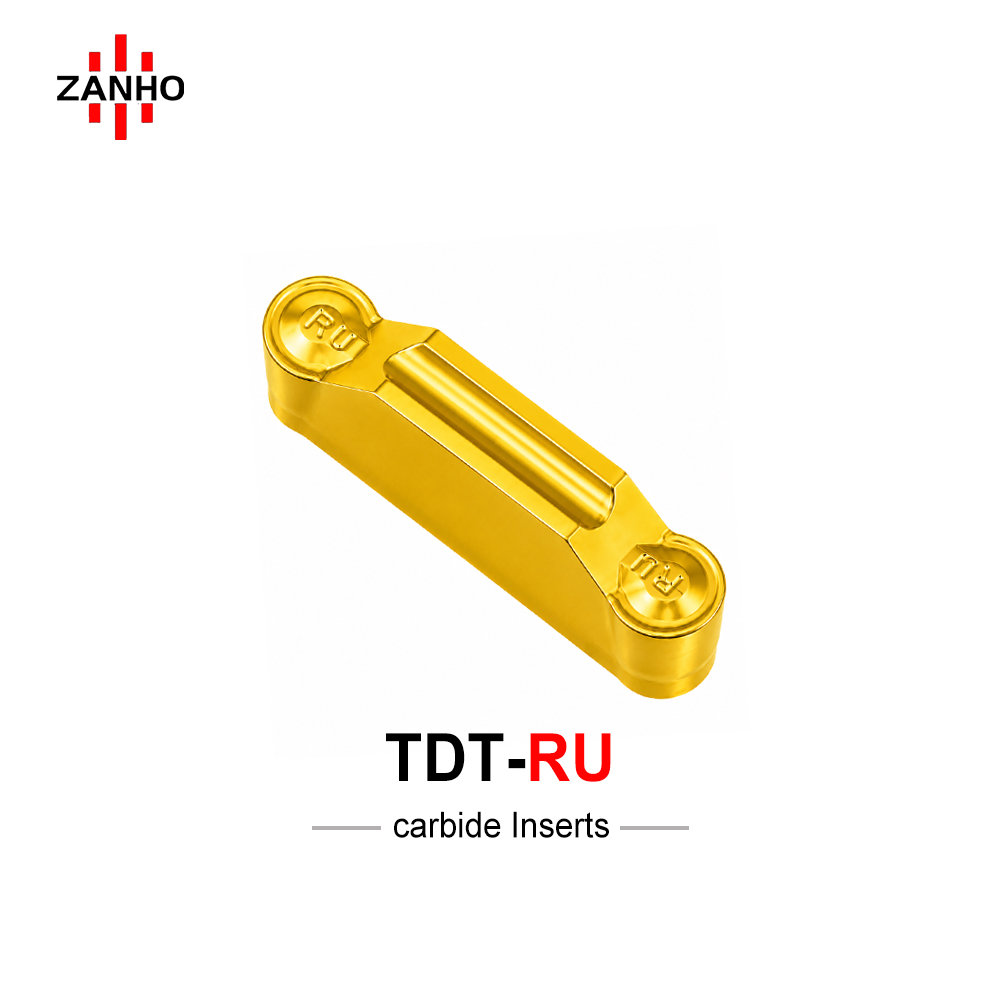

ZANHO TDT-RU series: Precision-pressed double-ended full radius inserts optimized for external grooving and lateral profiling. Compatible with T-CLAMP series tool holders, the specialized RU chipbreaker prevents chip packing in narrow cavities during lateral turning. Honed edges provide superior chipping resistance under interrupted cutting conditions for high-precision R-contour machining.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Full Radius Precision: Precision-pressed full-circle geometry ensures perfect R-contour accuracy, ideal for bearing housing and decorative profiling.
  • RU Specialized Chipbreaker: Specifically designed for lateral turning within grooves, constraining chip shapes to avoid packing in narrow or confined spaces.
  • T-CLAMP Compatibility: Seamlessly compatible with industry-standard T-CLAMP series tool holders for external grooving and face profiling.
  • High Edge Toughness: Reinforced honed cutting edges provide exceptional resistance to chipping, even under severe interrupted cutting conditions.
  • Double-Ended Economy: Symmetrical design allows both ends to be utilized, maximizing tool life and cost-efficiency in mass production.

Technical Specifications (mm)

Model Type Width (W±0.05) M Length (L) Radius (R) t S
TDT 2E-1.0-RU 2.0 1.7 20.0 1.0 3.98 5.0
TDT 3E-1.5-RU 3.0 2.25 20.0 1.5 4.0 5.45
TDT 4E-2.0-RU 4.0 3.0 20.0 2.0 4.0 5.45
TDT 5E-2.5-RU 5.0 4.0 25.0 2.5 4.83 6.2
TDT 6E-3.0-RU 6.0 5.0 25.0 3.0 4.90 6.1

Precision Profiling for External Machining Excellence

ZANHO TDT-RU series is the industrial choice for bearing grooves and complex contouring. Contact us for bulk B2B inquiry.
