TDXU

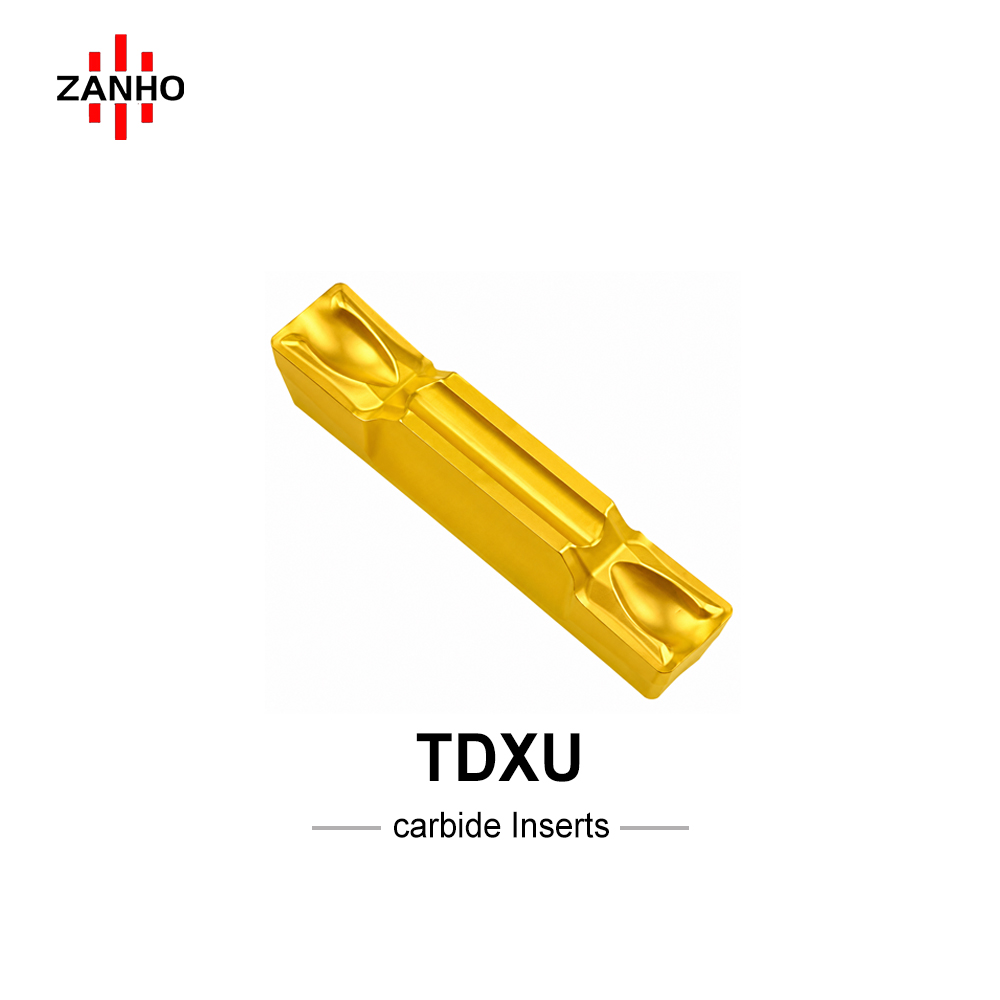

ZANHO TDXU series: High-versatility double-ended inserts designed for external, internal, and face grooving, as well as longitudinal turning within grooves. The E-type multi-functional chipbreaker balances low cutting resistance with excellent chip control for parting and profiling. Reinforced cutting edges provide superior stability under interrupted and unstable cutting conditions.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Multi-Functional 5-in-1: One insert type covers external grooving, internal grooving, face grooving, parting-off, and profiling/turning, significantly reducing tool inventory.
  • Double-Ended Economy: Symmetrical geometry allows both ends to be utilized, providing a high cost-to-performance ratio and doubling tool life.
  • E-Type Chipbreaker: Advanced multi-functional chip control geometry that handles the varying requirements of deep grooving, parting, and longitudinal profiling.
  • Honed Edge Stability: Precision-honed and reinforced cutting edges provide extreme reliability during interrupted cuts or unstable machining environments.
  • Low Cutting Resistance: Engineered geometry minimizes spindle load and prevents vibration, ensuring high-quality surface finishes in grooving and turning.

Technical Specifications (mm)

Model Type Width (W±0.05) M Length (L) Radius (R) t S
TDXU 2E-0.3 2.0 1.7 20.0 0.3 5.0 3.75
TDXU 3E-0.3 3.0 2.25 20.0 0.3 5.25 3.75
TDXU 4E-0.4 4.0 3.0 20.0 0.4 5.5 4.0
TDXU 5E-0.4 5.0 4.0 20.0 0.4 6.25 4.75

One Solution for Complex Grooving & Turning

ZANHO TDXU series maximizes efficiency in multi-functional CNC operations. Contact us for bulk B2B inquiry and tool holder compatibility.
