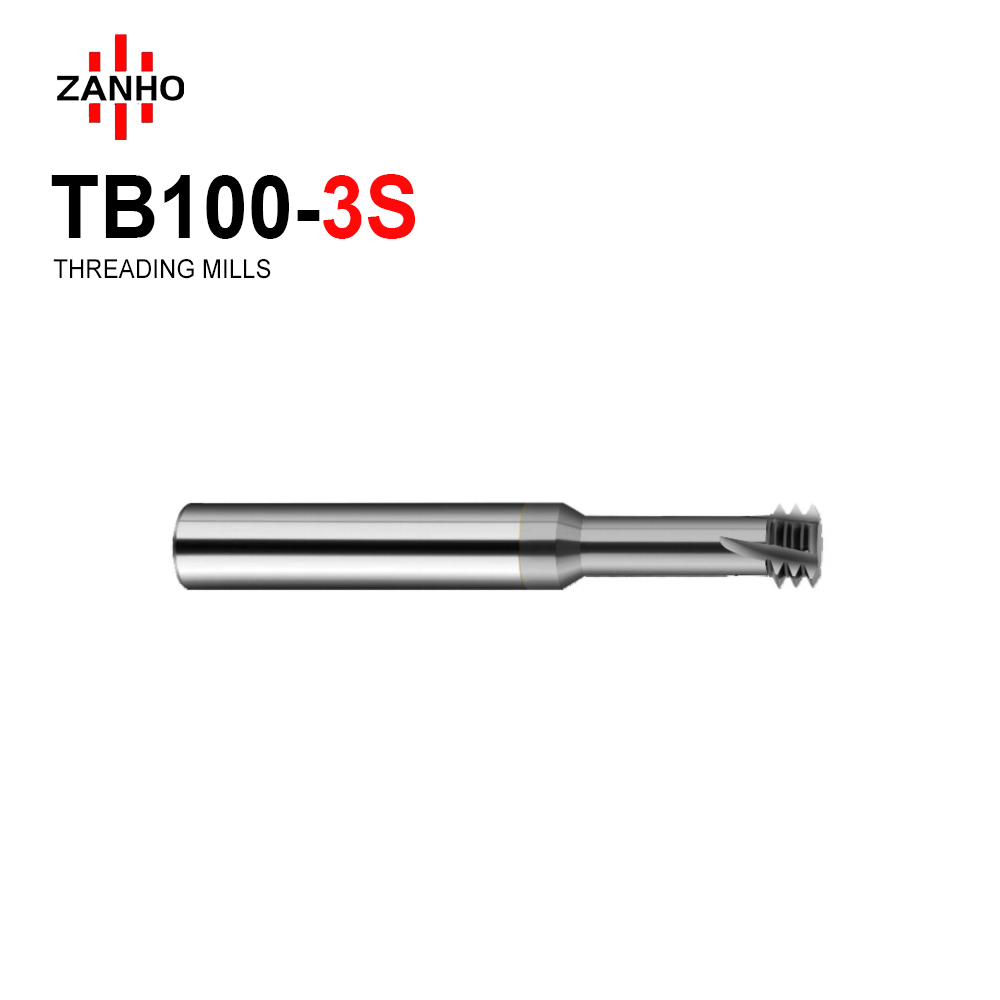

Three-Tooth Thread Mill

  • Three-Tooth Productivity: The specialized 3-Tooth Design offers a perfect balance of cutting speed and tool stability, significantly reducing machining time compared to single-tooth cutters.
  • Stable Cutting Action: Multiple points of contact reduce vibration and tool deflection, delivering a superior surface finish in internal threads.
  • Broad Capacity Range: Comprehensive sizing from ultra-fine M1 to heavy-duty M30 threads, meeting diverse industrial requirements.
  • Premium Carbide Substrate: Made from high-quality micro-grain carbide for maximum edge strength and long-lasting tool life.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D 有效长 L1 柄径 D1 总长 L
TB100-3S-0100250 M1x0.25 0.73 2.3 4 50
TB100-3S-0120250 M1.2x0.25 0.92 3.3 4 50
TB100-3S-0140300 M1.4x0.3 1.05 3.2 4 50
TB100-3S-0160350 M1.6x0.35 1.21 3.5 4 50
TB100-3S-0180350 M1.8x0.35 1.4 4 4 50
TB100-3S-0200400 M2x0.4 1.54 4.5 4 50
TB100-3S-0250450 M2.5x0.45 1.96 5.5 4 50
TB100-3S-0300500 M3x0.5 2.42 7 4 50
TB100-3S-0350600 M3.5x0.6 2.75 9 4 50
TB100-3S-0400500 M4x0.5 3.4 8 4 50
TB100-3S-0400700 M4x0.7 3.15 10 4 50
TB100-3S-0450750 M4.5x0.75 3.5 11 4 50
TB100-3S-0500500 M5x0.5 3.9 8 4 50
TB100-3S-0500750 M5x0.75 3.9 8 4 50
TB100-3S-0500800 M5x0.8 3.95 12 4 50
TB100-3S-0500800 M5x0.8 4 12 6 50
TB100-3S-0600500 M6x0.5 4.8 13 6 50
TB100-3S-0600750 M6x0.75 5 13 6 50
TB100-3S-0601000 M6x1.0 4.75 13 6 50
TB100-3S-0800500 M8x0.5 5.95 16 6 50
TB100-3S-0800750 M8x0.75 5.95 20 6 60
TB100-3S-0801000 M8x1.0 5.9 20 6 60
TB100-3S-0801250 M8x1.25 5.95 20 6 60
TB100-3S-1001000 M10x1.0 7.9 21 8 62
TB100-3S-1001250 M10x1.25 7.95 21 8 62
TB100-3S-1001500 M10x1.5 7.9 22 8 62
TB100-3S-1201000 M12x1.0 9.9 30 10 75
TB100-3S-1201250 M12x1.25 9.9 30 10 75
TB100-3S-1201500 M12x1.5 9.9 30 10 75
TB100-3S-1201750 M12x1.75 9.9 28 10 75
TB100-3S-1402000 M14x2.0 9.9 28 10 75
TB100-3S-1601000 M16x1.0 11.95 30 12 75
TB100-3S-1601500 M16x1.5 11.9 35 12 75
TB100-3S-1602000 M16x2.0 11.9 35 12 75
TB100-3S-1802500 M18x2.5 13.9 40 14 83
TB100-3S-2002500 M20x2.5 15.9 50 16 100
TB100-3S-2403000 M24x3.0 15.9 50 16 100
TB100-3S-3003500 M30x3.5 15.9 50 16 100
