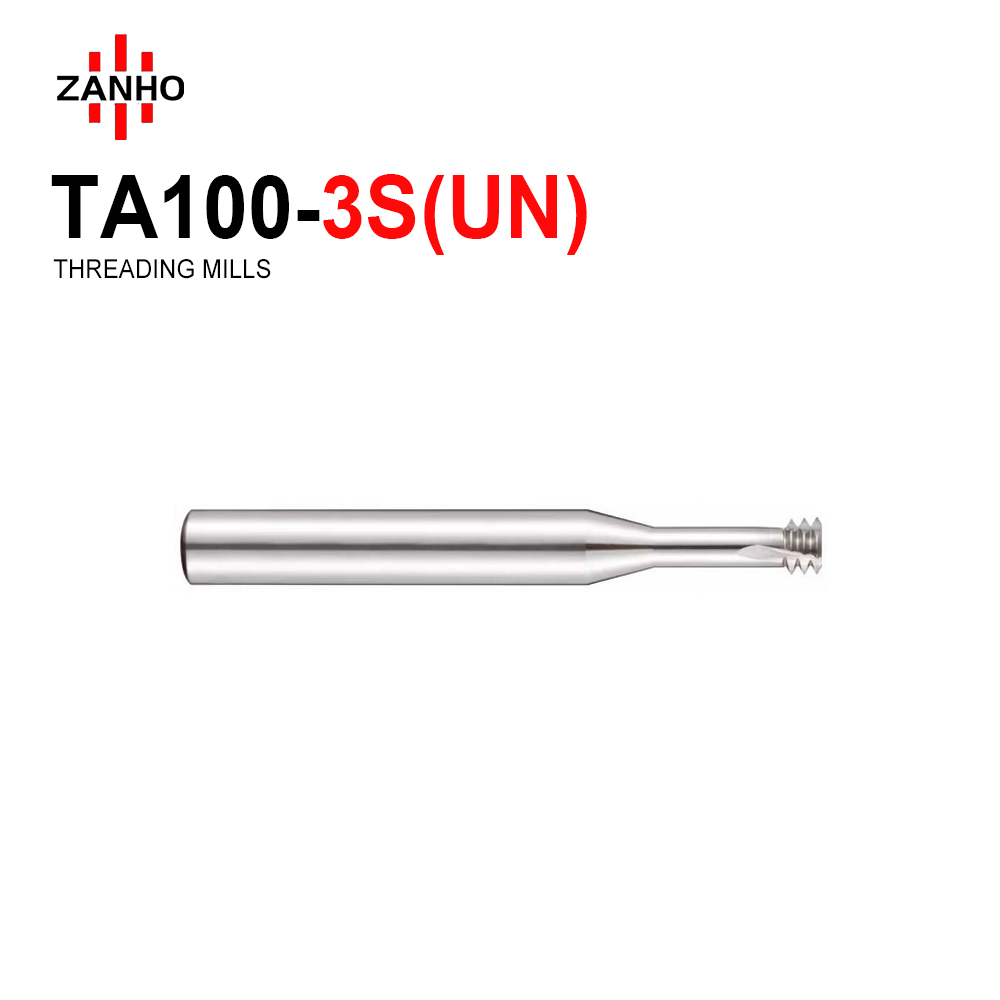

| 订货号 Order Number | 规格 Specification | 刀径 D | 有效长 L1 | 柄径 D1 | 总长 L |
| TA100-3S-000080UNF | 0-80UNF | 1.18 | 3.5 | 4 | 50 |
| TA100-3S-010064UNC | 1-64UNC | 1.4 | 4 | 4 | 50 |
| TA100-3S-010072UNF | 1-72UNF | 1.44 | 3.8 | 4 | 50 |
| TA100-3S-020056UNC | 2-56UNC | 1.65 | 5 | 4 | 50 |
| TA100-3S-030048UNC | 3-48UNC | 1.9 | 5.4 | 4 | 50 |
| TA100-3S-040040UNC | 4-40UNC | 2.1 | 6 | 4 | 50 |
| TA100-3S-050040UNC | 5-40UNC | 2.46 | 8 | 4 | 50 |
| TA100-3S-060032UNC | 6-32UNC | 2.56 | 7.5 | 4 | 50 |
| TA100-3S-080032UNC | 8-32UNC | 3.2 | 11 | 4 | 50 |
| TA100-3S-080036UNF | 8-36UNF | 3.31 | 11 | 4 | 50 |
| TA100-3S-100024UNC | 10-24UNC | 3.58 | 11 | 4 | 50 |
| TA100-3S-100032UNF | 10-32UNF | 3.8 | 12 | 4 | 50 |
| TA100-3S-010420UNC | 1/4-20UNC | 4.87 | 14 | 6 | 50 |
| TA100-3S-010428UNF | 1/4-28UNF | 5 | 15 | 6 | 50 |
| TA100-3S-051618UNC | 5/16-18UNC | 5.9 | 18 | 6 | 50 |
| TA100-3S-051624UNF | 5/16-24UNF | 5.95 | 18 | 6 | 60 |
| TA100-3S-030816UNC | 3/8-16UNC | 7.65 | 20 | 8 | 60 |
| TA100-3S-030824UNF | 3/8-24UNF | 7.4 | 20 | 8 | 65 |
| TA100-3S-071614UNC | 7/16-14UNC | 9 | 28 | 10 | 75 |
| TA100-3S-071620UNF | 7/16-20UNF | 9.5 | 28 | 10 | 75 |
| TA100-3S-010213UNC | 1/2-13UNC | 9.9 | 25 | 10 | 75 |
| TA100-3S-010220UNF | 1/2-20UNF | 9.9 | 25 | 10 | 75 |
| TA100-3S-091618UNF | 9/16-18UNF | 11.9 | 30 | 12 | 75 |
| TA100-3S-091624UNEF | 9/16-24UNEF | 11.9 | 30 | 12 | 75 |
