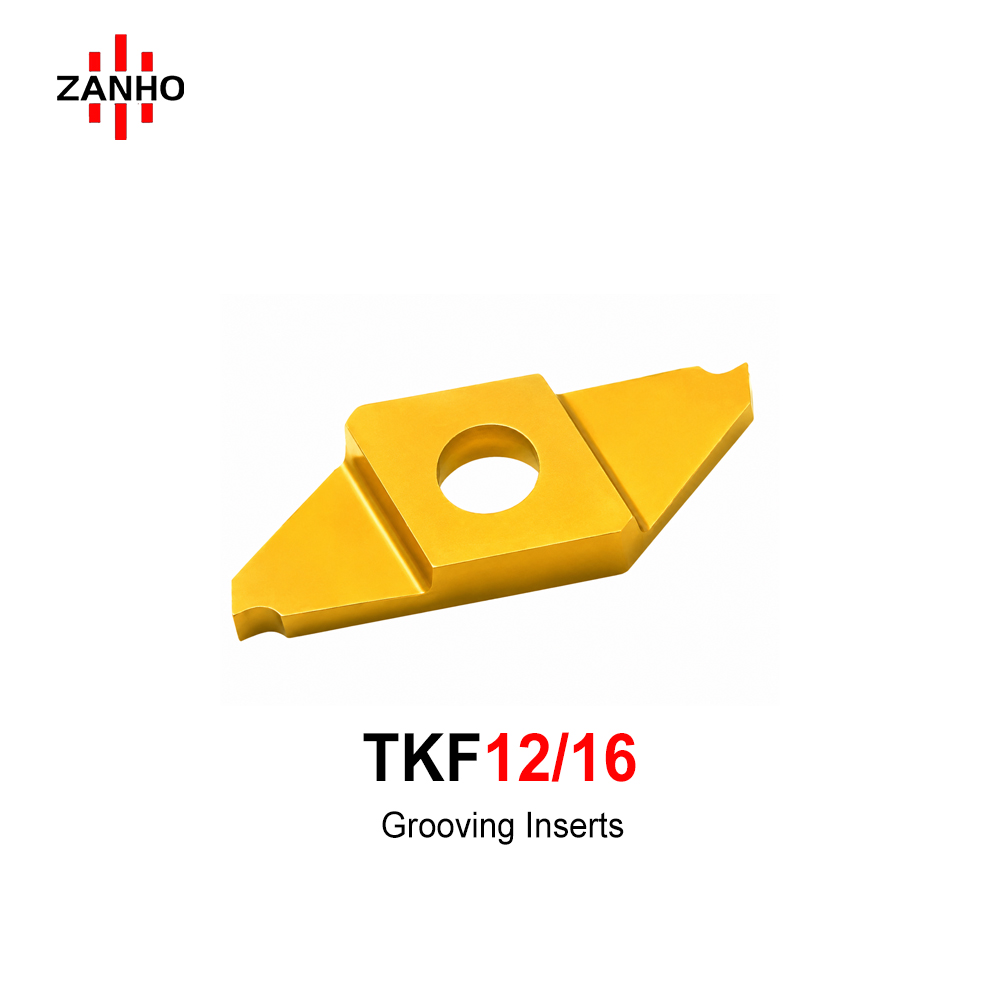

TKF12/16 Grooving&Cut-off Inserts

ZANHO TKF12/TKF16 series: High-precision single-sided parting and grooving inserts specifically engineered for Swiss-type CNC machines. Compact design fits limited tool post spaces while the optimized chipbreaker ensures stable curling and evacuation. Engineered for vibration reduction and high-stability machining of small components in steel and alloys.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Swiss-Type CNC Optimized: Ultra-compact geometry specifically designed for the tight tool post configurations of Swiss-type (sliding head) lathes.
  • Enhanced Process Stability: Specialized rake surface geometry reduces cutting resistance and suppresses vibration, ensuring precision in small part parting-off.
  • Stable Chip Management: Engineered chipbreaker prevents chip wrapping and promotes inward curling for reliable evacuation in narrow grooves.
  • Precision Edge Treatment: Honed and reinforced cutting edges improve resistance to chipping under weak rigidity conditions, extending tool life.
  • High Repeatability: Strict manufacturing tolerances ensure consistent slot widths and high dimensional accuracy across large production batches.

TKF12 / TKF16 Detailed Specifications (mm)

Designation (Right) Designation (Left) W Dmax T H ød R
TKF12R050-S TKF12L050-S 0.50 5.0 3.0 8.7 5.0 0.05
TKF12R070-S TKF12L070-S 0.70 8.0
TKF12R100-S TKF12L100-S 1.00 12.0
TKF12R150-S TKF12L150-S 1.50 12.0
TKF12R200-S TKF12L200-S 2.00 12.0
TKF12R050-S16R TKF12L050-S16R 0.50 5.0
TKF12R070-S16R TKF12L070-S16R 0.70 8.0
TKF12R100-S16R TKF12L100-S16R 1.00 12.0
TKF12R150-S16R TKF12L150-S16R 1.50 12.0
TKF12R200-S16R TKF12L200-S16R 2.00 12.0
TKF16R100-S TKF16L100-S 1.00 16.0 4.0 9.5
TKF16R150-S TKF16L150-S 1.50
TKF16R200-S TKF16L200-S 2.00
TKF16R250-S TKF16L250-S 2.50
TKF16R300-S TKF16L300-S 3.00
TKF16R100-S16R TKF16L100-S16R 1.00
TKF16R150-S16R TKF16L150-S16R 1.50
TKF16R200-S16R TKF16L200-S16R 2.00

Precision Parting Excellence for Swiss-Type Lathes

ZANHO TKF series delivers unparalleled stability for small component production. Contact us for bulk B2B inquiry and tool holder compatibility.
