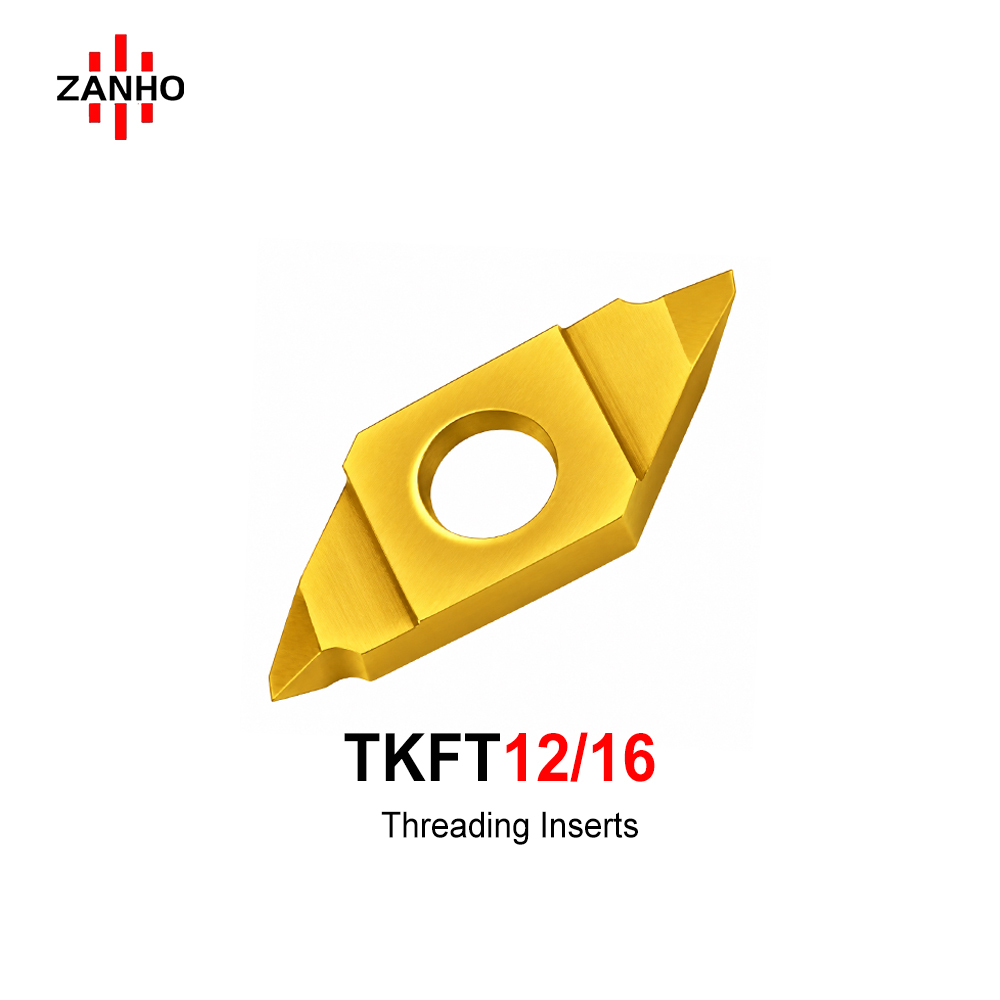

TKFT12/16

ZANHO TKFT series: High-precision threading inserts specifically optimized for Swiss-type automatic lathes. Utilizing a vertical mounting structure, these inserts provide superior load-bearing capacity and rigidity in space-constrained environments. Designed for precision small-pitch threading (0.5mm-3.0mm), they are compatible with TKFK toolholders for multifunctional use in threading, back-turning, and cutoff operations.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Swiss-Type Lathe Optimization: Vertical clamping saves valuable space on multi-tool turrets, ideal for sub-spindle machining.
  • High Rigidity Structure: Cutting forces act along the insert's thickness, providing excellent resistance to fracture compared to traditional horizontal inserts.
  • Integrated Tooling System: Compatible with TKFK toolholders, allowing rapid switching between TKFT (Threading), TKFB (Back-turning), and TKF (Cutoff) inserts.
  • Precision Small Pitch Threading: Covers common micro-thread ranges (0.5mm - 3.0mm) with sharp edge geometry for high-accuracy requirements.
  • Efficient Chip Management: Designed for stable chip evacuation in tight working envelopes.

TKFT Series Dimensions (mm)

Designation Pitch Dimensions Edge Specs
Right Left Metric (mm) Inch (TPI) H T φd θ R S1
TKFT12RA60005 TKFT12LA60005 0.5 - 1.25 48 - 24 8.7 3.0 5.0 60° 0.05 0.8
TKFT12RB60005 TKFT12LB60005 0.5 - 1.25 48 - 24 0.05 0.8
TKFT12RN6001 TKFT12LN6001 1.0 - 2.0 24 - 12 0.10 1.25
TKFT12RA55005 TKFT12LA55005 - 48 - 24 55° 0.05 0.8
TKFT12RB55005 TKFT12LB55005 - 48 - 24 0.05 0.8
TKFT12RN5501 TKFT12LN5501 - 24 - 12 0.10 1.5
TKFT16RA60005 TKFT16LA60005 0.5 - 1.25 48 - 24 9.5 4.0 60° 0.05 0.8
TKFT16RB60005 TKFT16LB60005 0.5 - 1.25 48 - 24 0.05 0.8
TKFT16RN6001 TKFT16LN6001 1.0 - 3.0 24 - 8 0.10 1.75
TKFT16RA55005 TKFT16LA55005 - 48 - 24 55° 0.05 0.8
TKFT16RB55005 TKFT16LB55005 - 48 - 24 0.05 0.8
TKFT16RN5501 TKFT16LN5501 - 24 - 8 0.10 1.75
