TNMG-BF

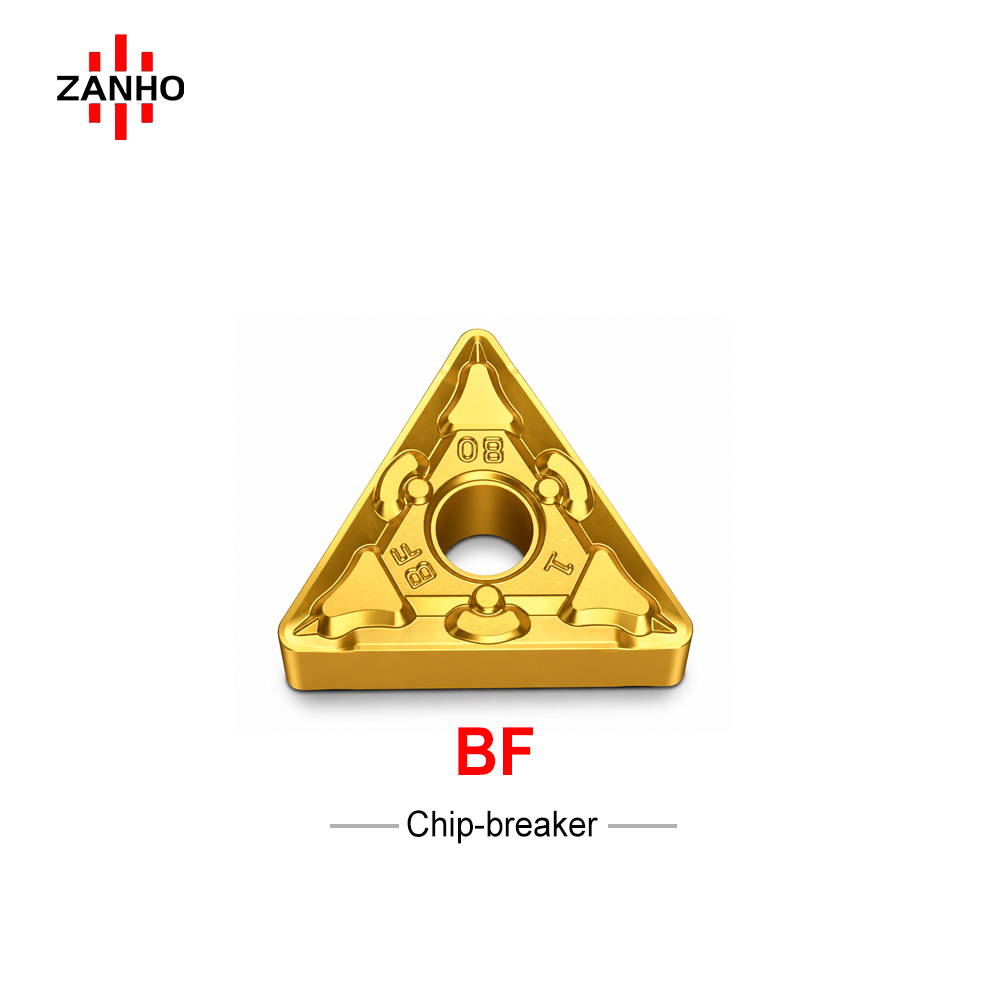

ZANHO TNMG1604-BF is a professional triangular negative turning insert specifically designed for High-Precision Finishing. Featuring the specialized BF chipbreaker, it ensures excellent surface integrity and precise chip control at light depths, making it ideal for the final machining stages of steel and stainless steel components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Finishing Specialist: Specifically engineered for high-precision finishing operations, delivering superior surface integrity and dimensional accuracy.
  • BF Chipbreaker: Optimized for light cutting depths and low feed rates, ensuring excellent chip breaking and preventing surface marring.
  • Triangular Stability: The TNMG negative geometry provides high edge strength and multiple cutting edges for increased cost-efficiency.
  • Low Cutting Force: Sharp cutting edges reduce heat buildup and vibration, ideal for maintaining tight tolerances on precise workpieces.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
TNMG160404-BF 0.4 mm 0.07 - 0.20 0.5 - 2.0 mm
TNMG160408-BF 0.8 mm 0.10 - 0.25 0.7 - 2.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
