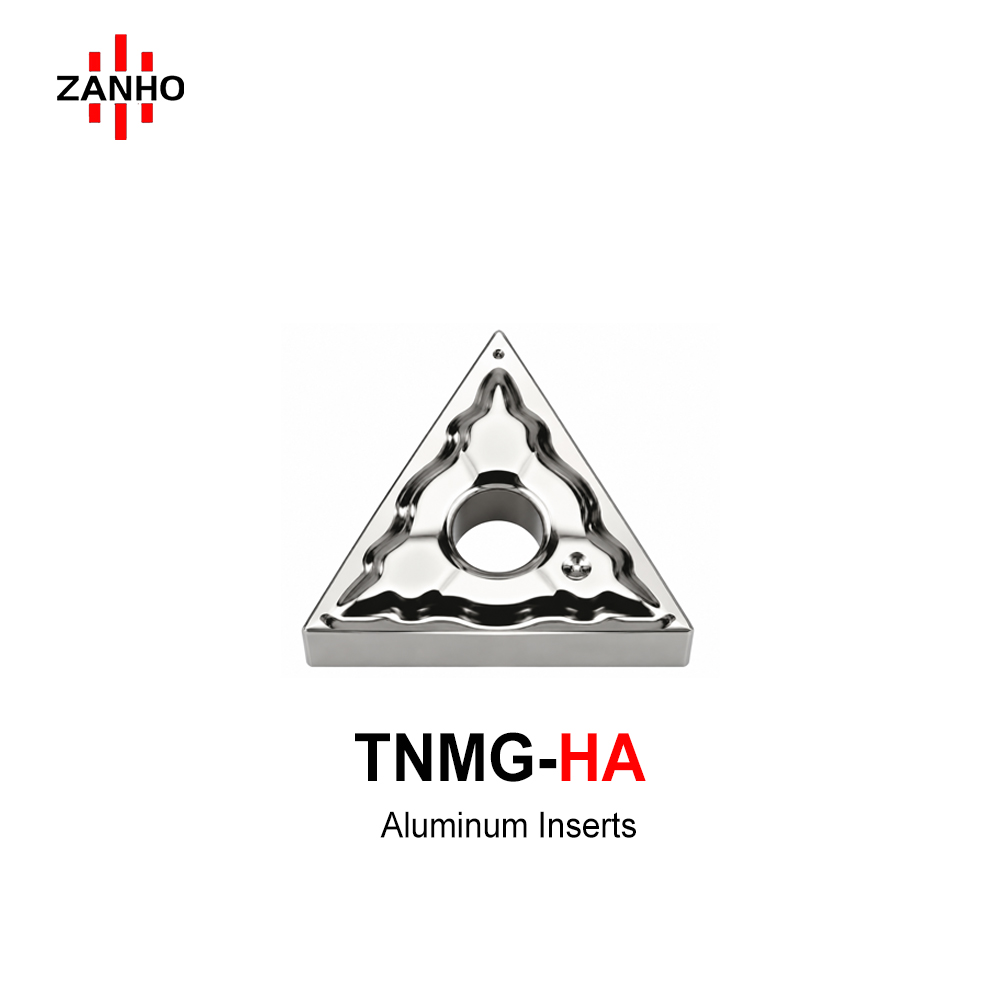

TNMG-HA

ZANHO TNMG-HA series: High-performance uncoated carbide inserts with a buffed (mirror-polished) rake face. Specifically engineered for medium-roughing of aluminum and non-ferrous metals, the -HA chipbreaker delivers exceptional chip control and prevents built-up edge (BUE), ensuring high-efficiency machining and superior surface quality.
Categories:
Learn More
Download PDF
Description

Technical Features

  • Mirror Polished Rake Face: Buffed surface minimizes friction and prevents aluminum welding/adhesion.
  • HA Chipbreaker: Optimized for medium-roughing operations with excellent chip evacuation.
  • Uncoated Carbide Grade: Specifically formulated for high-speed machining of aluminum and non-ferrous alloys.
  • Sharp Cutting Edge: Provides clean cuts and reduces vibration during heavy machining.
  • High Compatibility: Fits standard ISO tool holders (PTFNR, PTGNR, PTENR, WTJNR).

TNMG-HA Dimensions (mm)

ISO Designation L I.C S D1 R
TNMG160402-HA 16.5 9.525 4.76 3.81 0.2
TNMG160404-HA 0.4
TNMG160408-HA 0.8

Matching Accessories

Tool Holder Shim Clamp Screw Wrench
PTFNR/L, PTGNR/L
PTENR/L, WTJNR/L		 CTM513
CTM617		 HL1814
HL1917		 ML0625
ML0803		 L2.0, L3.0
L2.5, L4.0
