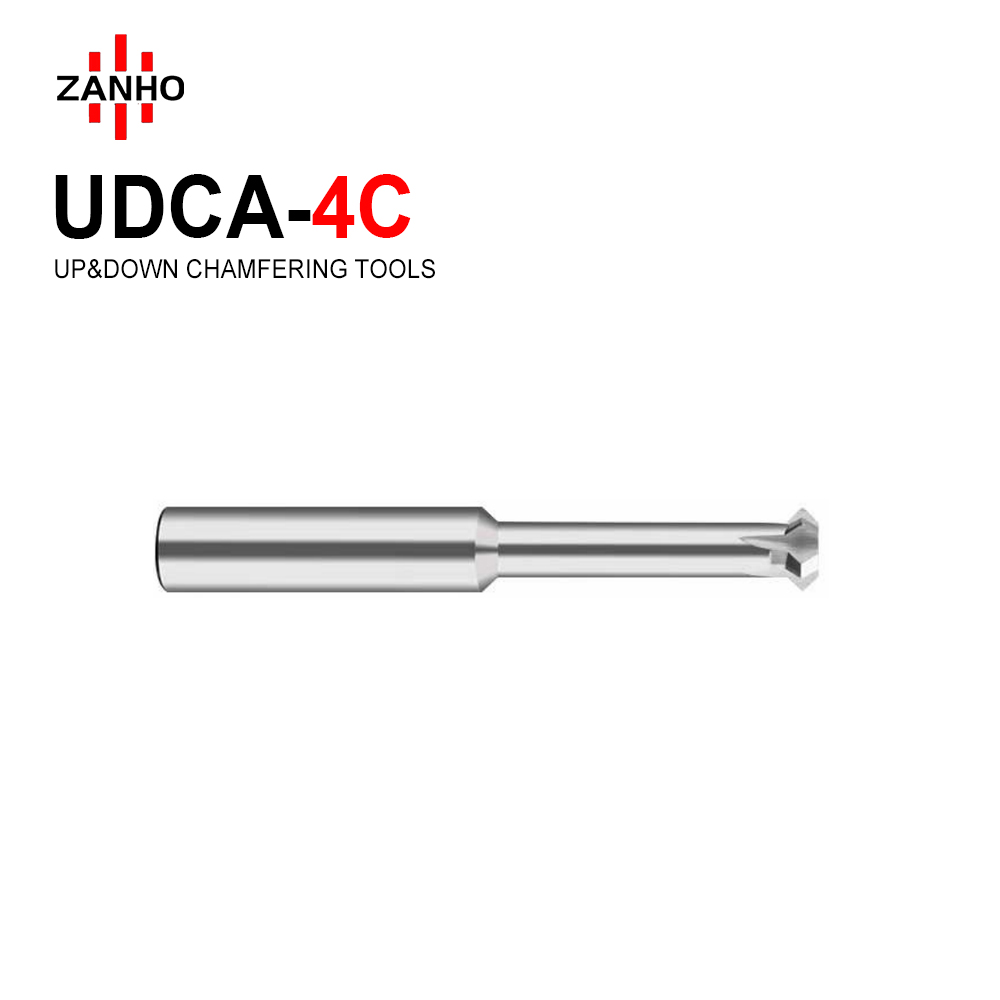

Top& Bottom Chamfer Tool-Alu.

  • Aluminum Dual-Side Specialist: high-precision Top and Bottom (Double-Sided) chamfering and deburring in aluminum and non-ferrous metals.
  • One-Pass High Efficiency: Allows for both front and back edge finishing in a single CNC setup, eliminating the need to flip the workpiece and significantly boosting productivity.
  • Mirror-Finish Surface: Features an Uncoated (Bright) or DLC Coated surface for ultra-low friction, preventing chip welding and ensuring a high-gloss, burr-free edge.
  • 4-Flute High Rigidity: Provides superior balance and a much smoother surface finish compared to conventional 2-flute chamfer tools, ideal for tight-tolerance operations.
  • Interference-Free Access: Features a precision-ground Reduced Neck (d2) to ensure safe and stable back-side machining through small holes without tool collision.
  • Broad Spec Selection: 90-degree inclusive angle with cutting diameters from D2 to D16 and various neck lengths to meet complex industrial requirements.
Categories:
Learn More
Download PDF
Description

Aluminum Order Number Specification D A d2 L1 D1
UDCA-4C-02090 D2*A90*D4*50L*4F 2 90 1 3 4
UDCA-4C-02590 D2.5*A90*D4*50L*4F 2.5 90 1 4 4
UDCA-4C-03090 D3*A90*D4*50L*4F 3 90 1.5 6 4
UDCA-4C-04090 D4*A90*D4*50L*4F 4 90 2 6 4
UDCA-4C-05090 D5*A90*D6*50L*4F 5 90 2.5 10 6
UDCA-4C-06090 D6*A90*D6*50L*4F 6 90 3 10 6
UDCA-4C-08090 D8*A90*D8*60L*4F 8 90 4 12 8
UDCA-4C-10090 D10*A90*D10*75L*4F 10 90 5 15 10
UDCA-4C-12090 D12*A90*D12*75L*4F 12 90 6 15 12
UDCA-4C-16090 D16*A90*D16*75L*4F 16 90 8 17 16
