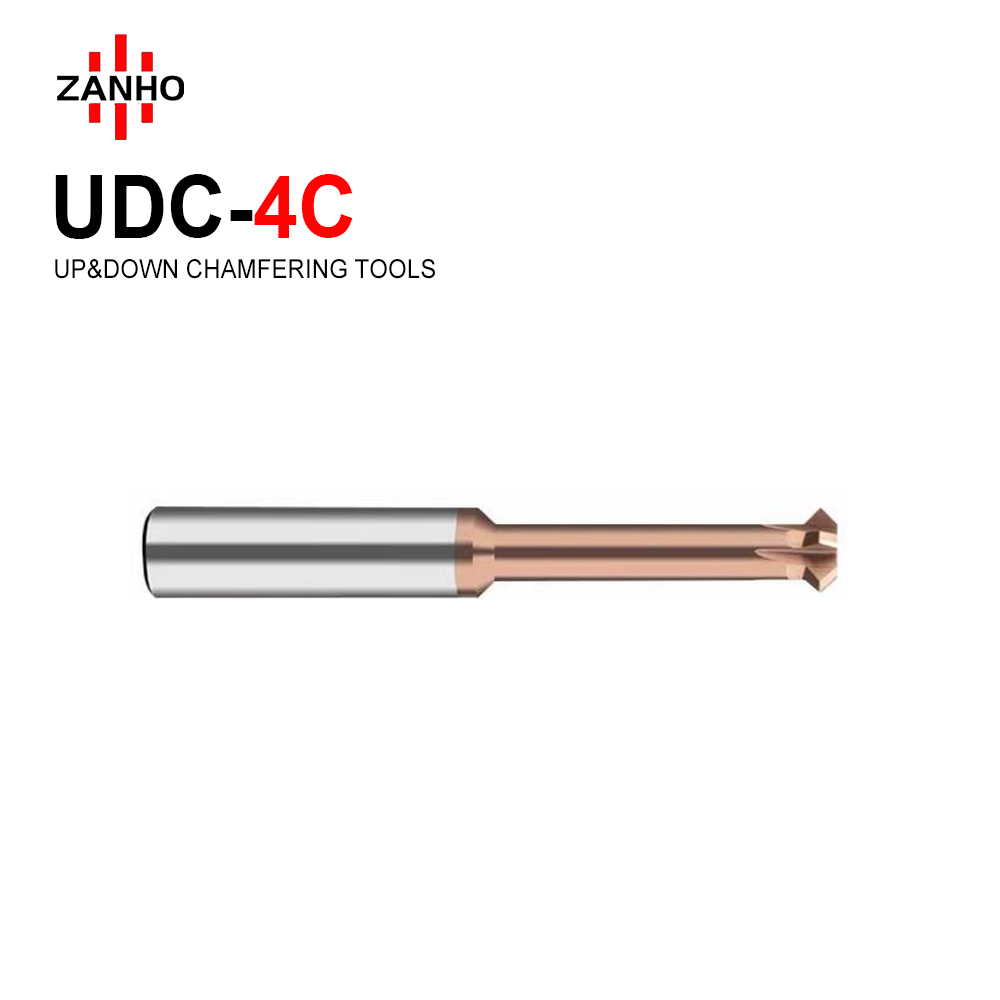

Top& Bottom Chamfer Tool-Steel

  • Dual-Sided Specialist: Innovative design specifically engineered for high-precision Top and Bottom (Double-Sided) chamfering and deburring in a single CNC operation.
  • Efficiency Boost: Eliminates the need to flip the workpiece or perform additional tool changes, significantly reducing cycle times and production costs.
  • 4-Flute High Rigidity: Provides superior tool balance and a much smoother surface finish on both sides of the part, ideal for high-tolerance CNC hole finishing.
  • Interference-Free Access: Features precision-ground reduced neck diameters (d2) to allow for stable back-side machining through narrow holes.
Categories:
Learn More
Download PDF
Description

Steel Order Number Specification D A d2 L1 D1
UDC-4C-02090 D2*A90*D4*50L*4F 2 90 1 3 4
UDC-4C-02590 D2.5*A90*D4*50L*4F 2.5 90 1 4 4
UDC-4C-03090 D3*A90*D4*50L*4F 3 90 1.5 6 4
UDC-4C-04090 D4*A90*D4*50L*4F 4 90 2 6 4
UDC-4C-05090 D5*A90*D6*50L*4F 5 90 2.5 10 6
UDC-4C-06090 D6*A90*D6*50L*4F 6 90 3 10 6
UDC-4C-08090 D8*A90*D8*60L*4F 8 90 4 12 8
UDC-4C-10090 D10*A90*D10*75L*4F 10 90 5 15 10
UDC-4C-12090 D12*A90*D12*75L*4F 12 90 6 15 12
UDC-4C-16090 D16*A90*D16*75L*4F 16 90 8 17 16
