TPMH-MV

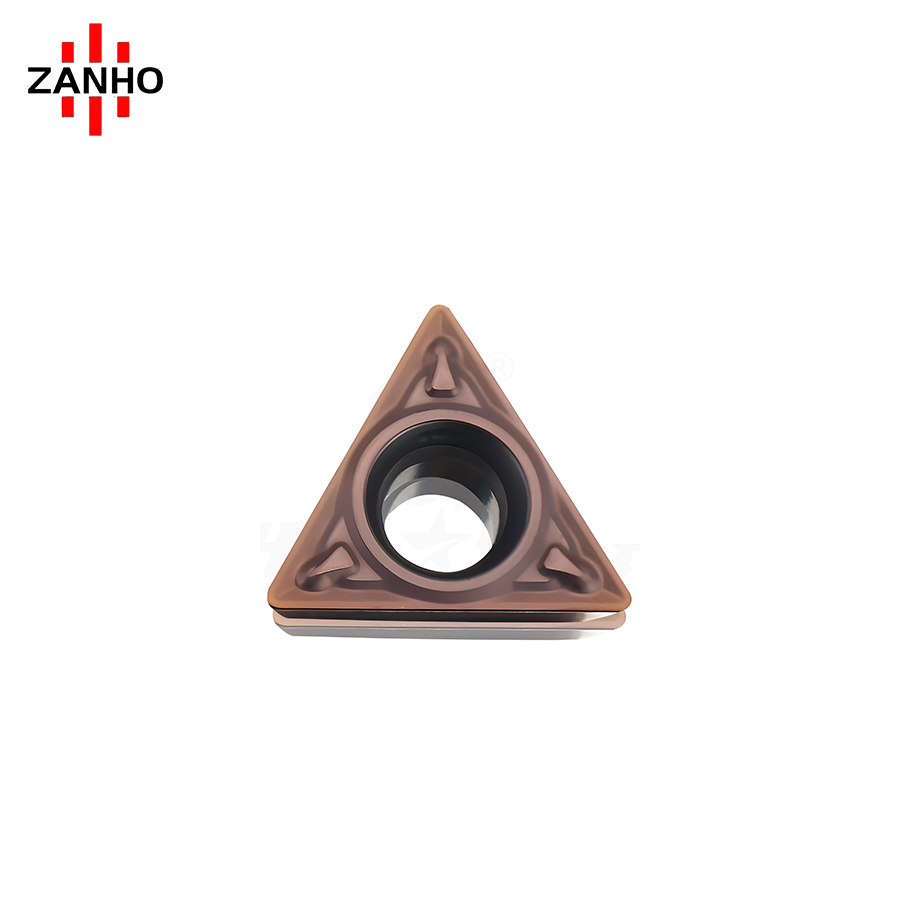

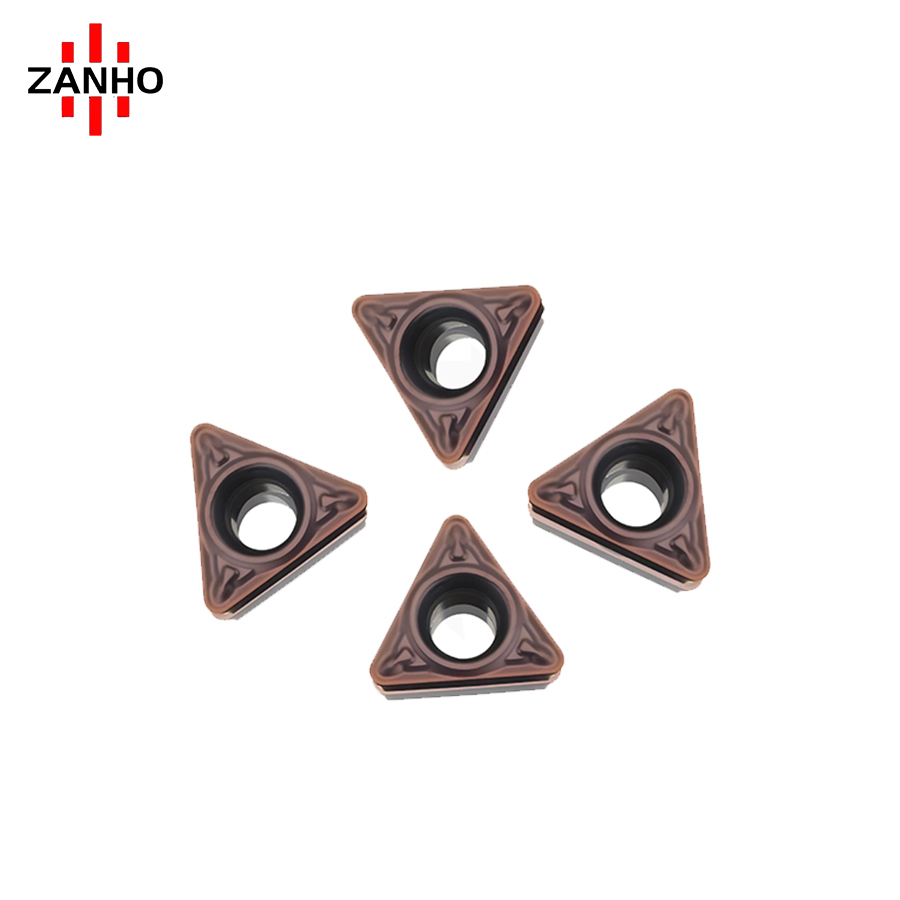

ZANHO TPMH-MV series is a high-precision triangle positive turning insert specifically designed for Medium Machining of small parts. Featuring the advanced MV chipbreaker with a dual-platform and circular rake face protrusions, it effectively breaks long stringy chips even at low feeds. Optimized for Swiss-type lathes, it provides exceptionally low cutting resistance and superior vibration control, making it ideal for thin-walled parts and small diameter internal boring.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Swiss-Type Lathe Optimization: Specifically engineered for small-part precision machining, supporting OD turning, profiling, back-turning, and internal boring.
  • Low Cutting Resistance: Large positive rake angle and sharp cutting edge minimize cutting forces, preventing vibration and deformation in thin-walled workpieces.

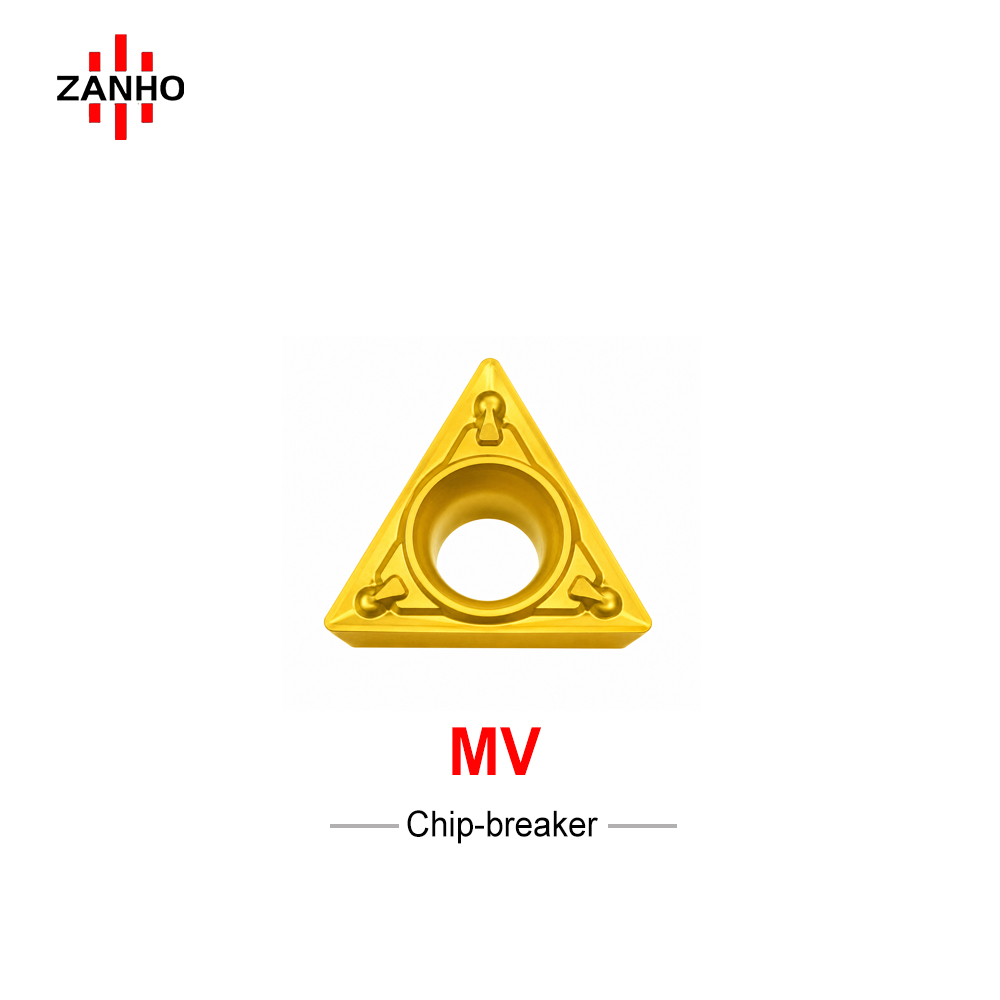

  • Advanced MV Chipbreaker: Dual-platform design combined with circular rake protrusions expands the chip-breaking window, achieving stable control over thin and long chips.
  • Superior Surface Finish: Micro-edge treatment balances edge sharpness with structural reliability, delivering high dimensional accuracy and surface smoothness.
  • Excellent Boring Performance: Ideally suited for small diameter internal hole boring, effectively solving chip entanglement issues in confined spaces.

Technical Specifications

Model Feed (f) Cut Depth (ap)
TPMH090204-MV 0.08 - 0.25 mm/r 0.3 - 2.0 mm
TPMH110304-MV 0.08 - 0.25 mm/r 0.3 - 2.0 mm
TPMH110308-MV 0.08 - 0.25 mm/r 0.3 - 2.0 mm

Need Tools for Precision Small Parts?

ZANHO technical experts can recommend the best coating and grade for your high-speed Swiss-type lathe production. Contact us for bulk B2B inquiry.
